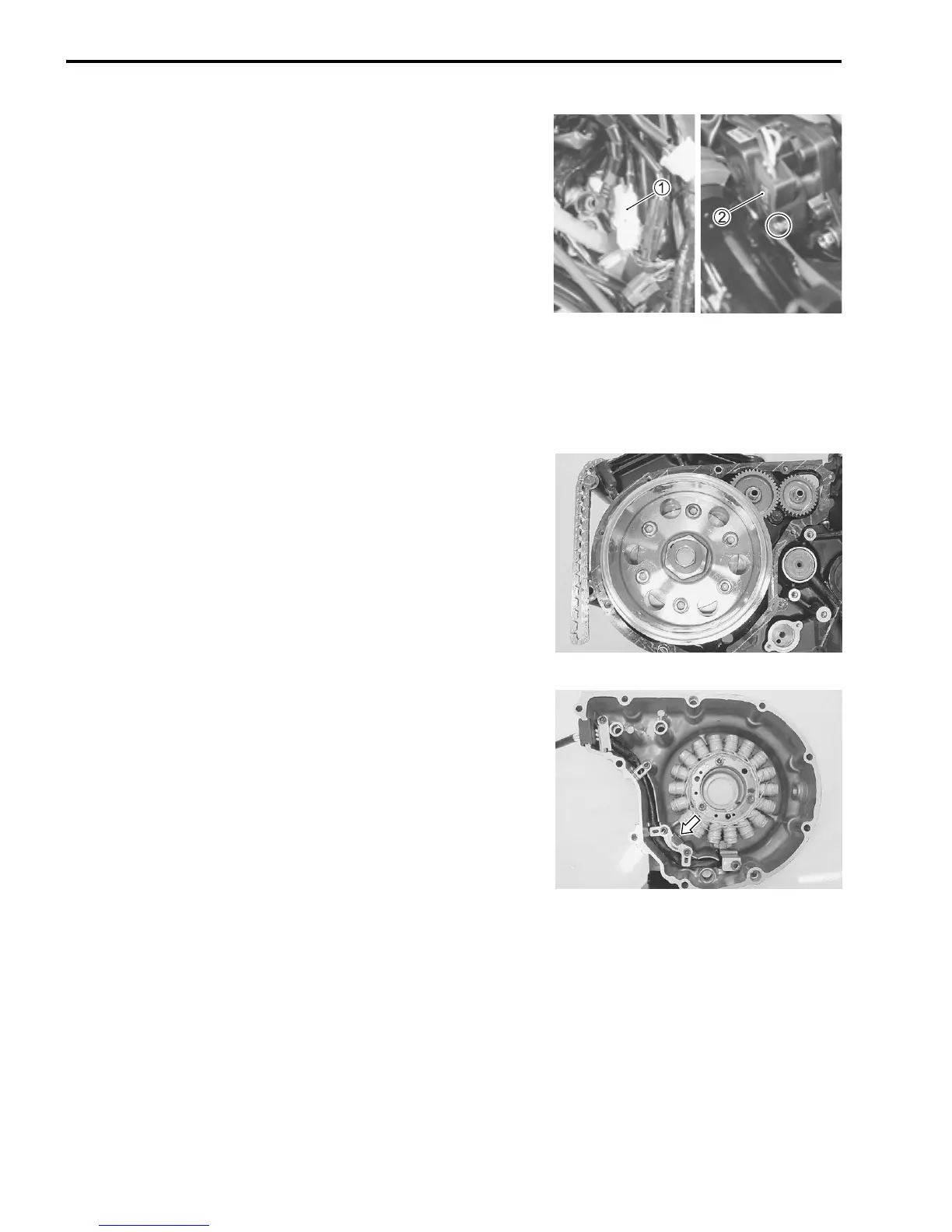

5-76 FI SYSTEM
STP SENSOR INSPECTION
The secondary throttle position sensor is installed on the No. 2
throttle body. (5-59)
STP SENSOR REMOVAL/INSTALLATION
• Remove the fuel tank. (6-3)
• Disconnect the coupler 1.
• Remove the screw with a torx wrench (T25) and STP sensor
2.
• Install the STP sensor to the No. 2 throttle body.
(6-18)
• STP sensor setting procedure. (6-21)
CKP SENSOR INSPECTION
The signal rotor is mounted on the generator rotor and crank-
shaft position sensor is installed at the inside of the generator
cover. (5-30)
CKP SENSOR REMOVAL/INSTALLATION
• Remove the generator cover. (3-22)
• Remove the CKP sensor.
• Installation is in the reverse order of removal.
SAMPLE

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki Intruder VZ800 and is the answer not in the manual?

Suzuki Intruder VZ800 Specifications

General IconGeneral
Engine Type4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement805 cc
Bore x Stroke83.0 mm x 74.4 mm
Compression Ratio9.4:1
Fuel SystemFuel injection
IgnitionElectronic ignition (transistorized)
Transmission5-speed constant mesh
Final DriveShaft drive
Front SuspensionTelescopic, coil spring, oil damped
Rear SuspensionLink type, coil spring, oil damped
Rear BrakeDrum brake
Seat Height700 mm (27.6 in)
Front BrakeDisc brake
Rear Tire170/80-15M/C 77H, tube type
Fuel Tank Capacity15.5 L (4.1 US gallons)
