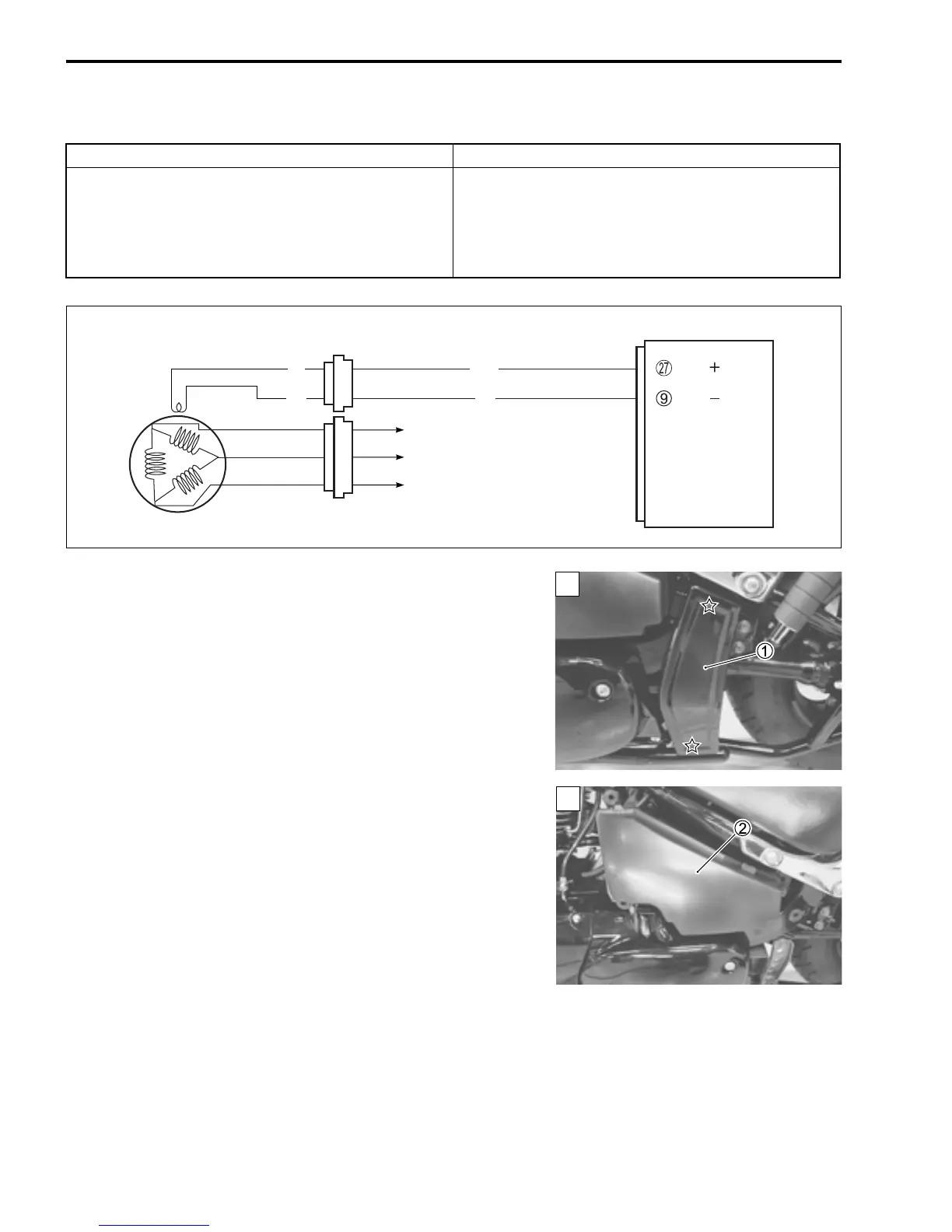

5-30 FI SYSTEM
“C12” (P0335) CKP SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1
1) Remove the left frame cover (8-3)
2) Remove the left frame lower cover 1.
: Hooked part
3) Remove the tool box cover 2.
DETECTED CONDITION POSSIBLE CAUSE
The signal does not reach ECM for 3 sec. or more,
after receiving the starter signal.
• Metal particles or foreign material being stuck on
the CKP sensor and rotor tip
• CKP sensor circuit open or short
• CKP sensor malfunction
• ECM malfunction
ECM
GEN.
CKP sensor
CKP
CKP
G/Y
Br
G
BI
To regulator/rectifier
1
1
SAMPLE
