5-46 FI SYSTEM
ECT SENSOR INSPECTION
• Remove the ECT sensor. (5-77)

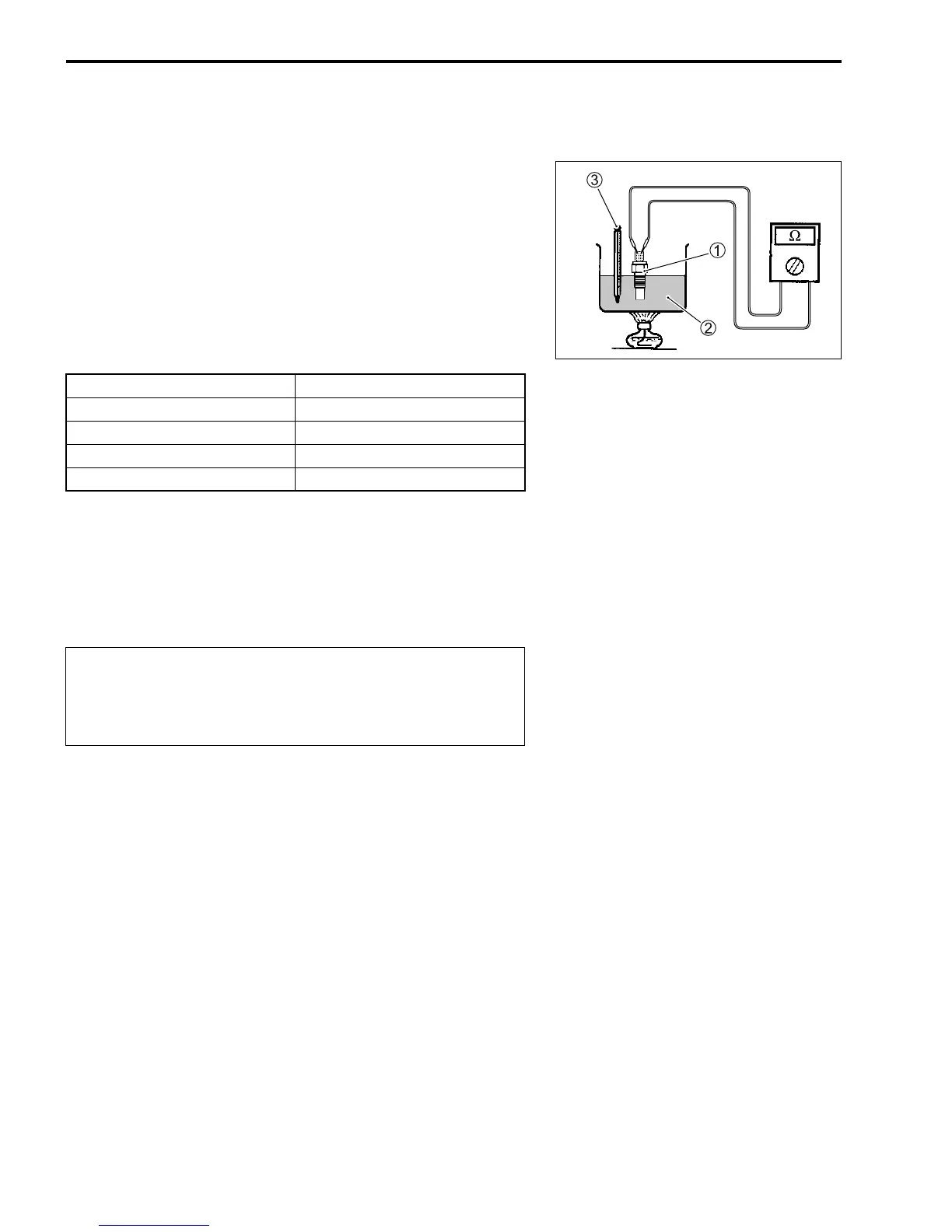

• Check the ECT sensor by testing it at the bench as shown in
the figure. Connect the ECT sensor 1 to a circuit tester and
place it in the oil 2 contained in a pan, which is placed on a
stove.
• Heat the oil to raise its temperature slowly and read the col-
umn thermometer 3 and the ohmmeter.
• If the ECT sensor ohmic value does not change in the propor-
tion indicated, replace it with a new one.
 ECT sensor specification
 09900-25008: Multi-circuit tester set
 Tester knob indication: Resistance (Ω)
If the resistance is noted to show infinity or too much different
resistance value, replace the ECT sensor with a new one.

Engine Coolant Temp Resistance
20 °C (68 °F) Approx. 2.45 kΩ
40 °C (104 °F) Approx. 1.148 kΩ
60 °C (140 °F) Approx. 0.587 kΩ
80 °C (176 °F) Approx. 0.322 kΩ
* Take special care when handling the ECT sensor. It
may cause damage if it gets a sharp impact.
* Do not contact the ECT sensor and the column ther-
mometer with a pan.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
