Suzuki Intruder VZ800 User Manual

9-12 ELECTRICAL SYSTEM

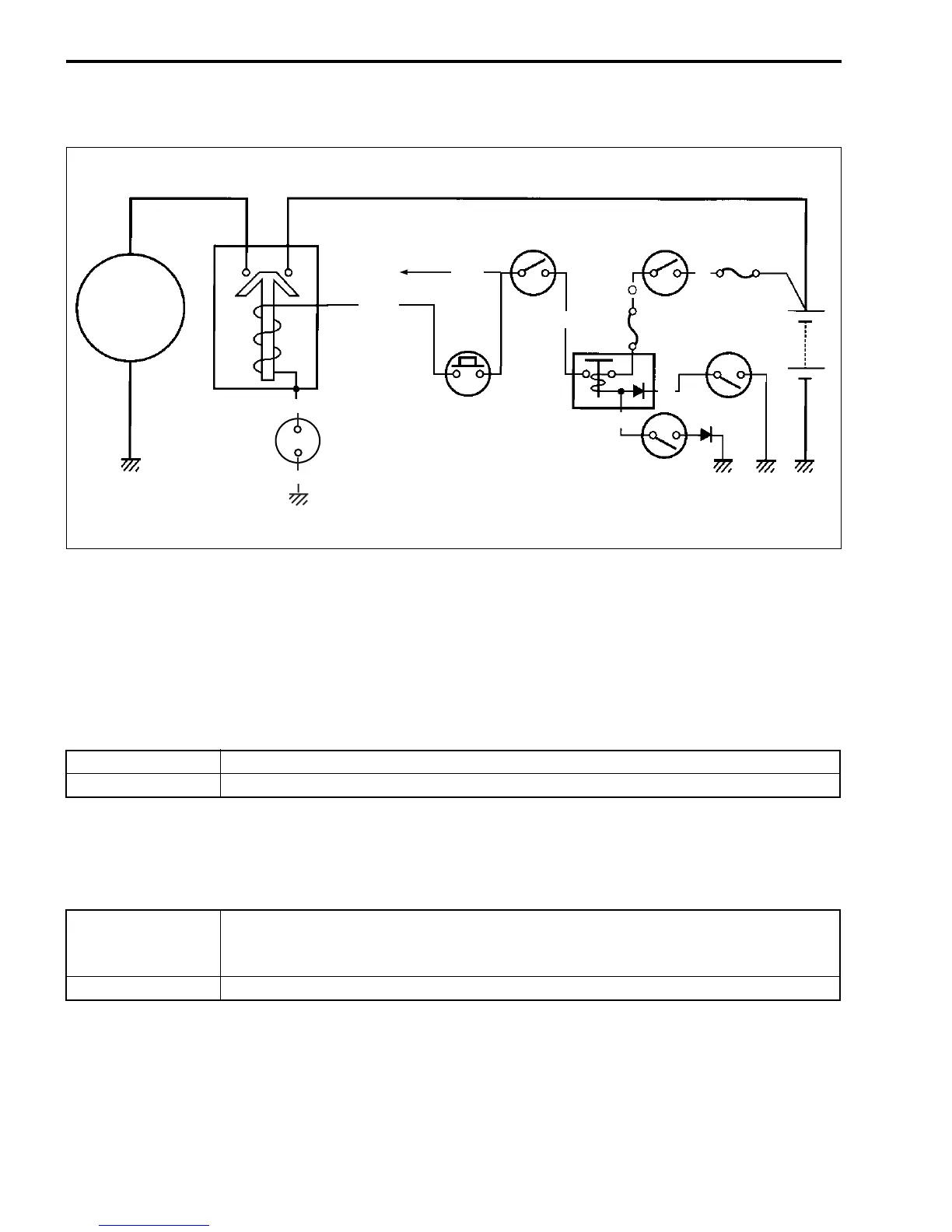

STARTER SYSTEM AND SIDE-STAND/IGNITION INTERLOCK SYSTEM
TROUBLESHOOTING
Starter motor will not run
Step 1
1) Shift the transmission to neutral.
2) Pull the clutch lever, turn on the ignition switch with the engine stop switch in the “RUN” position and
listen for a click from the starter relay when the starter button is pushed.
Is a click sound heard?
Step 2
1) Check if the starter motor runs when its terminal is connected to the battery + terminal. (Do not use thin
“wire” because a large amount of current flows.)
Does the starter motor run?
YES Go to Step 2.
NO Go to Step 3.
YES
• Faulty starter relay
• Loose or disconnected starter motor lead wire
• Loose or disconnected between starter relay and battery + terminal
NO Faulty starter motor
Starter
motor
Starter relay
Y/B
To Ignition
coil
O/W
Y/G
Clutch lever
position switch
B/W
Starter
button
Engine stop
switch
O/B
Turn signal/
side-stand relay
G
Ignition
switch
R
Fuse (30 A)
Gear position
switch (Neutral)
Fuse
(15 A)
Battery
Bl
side-stand
switch
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
