CHASSIS 8-55
RUBBER PARTS
Replace the removed rubber parts with new ones.

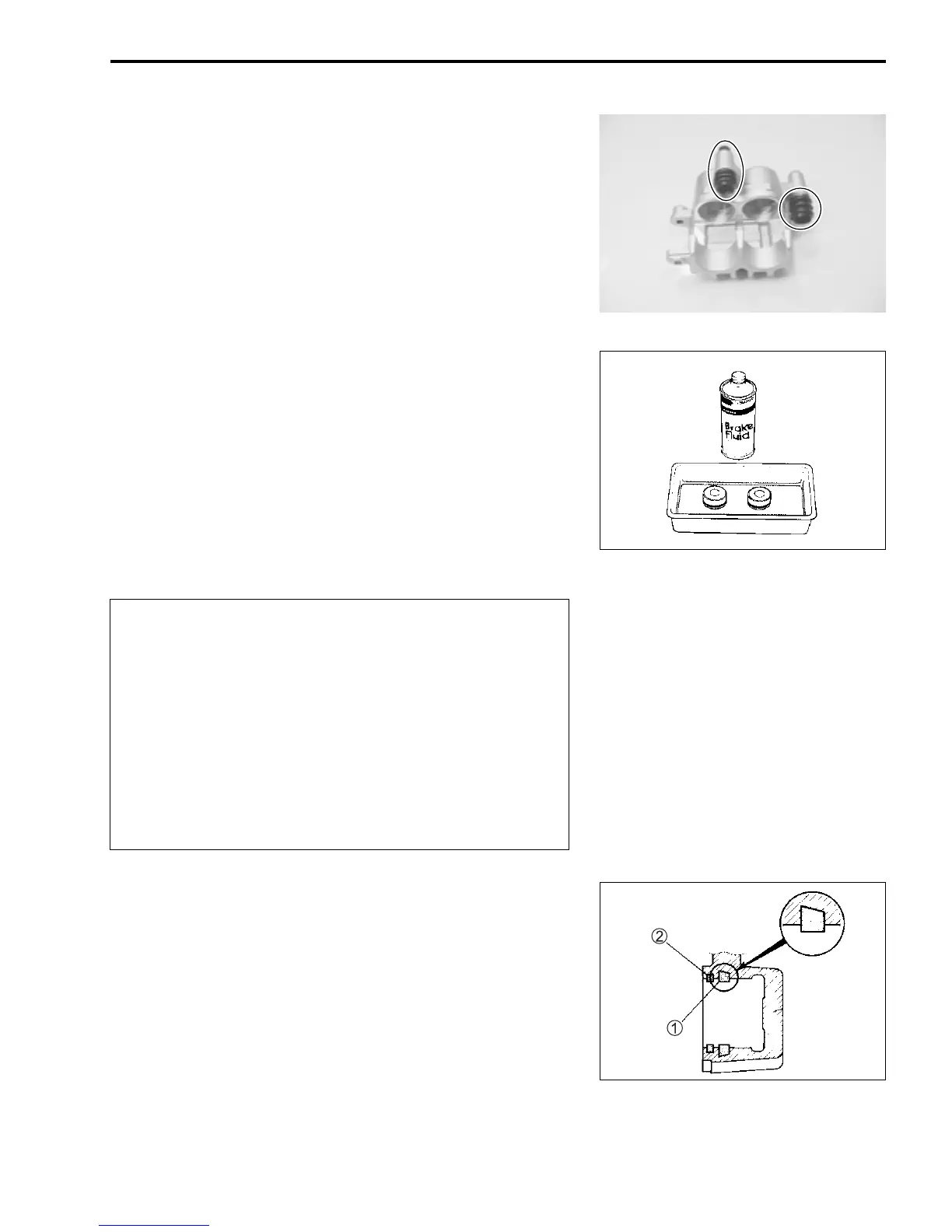

BRAKE CALIPER REASSEMBLY AND
REMOUNTING
Reassemble and remount the brake caliper in the reverse order
of removal and disassembly. Pay special attention to the follow-
ing points:
• Wash the caliper bores and pistons with the specified brake
fluid. Thoroughly wash the dust seal grooves and piston seal
grooves.
 Specification and classification: DOT 4

PISTON SEALS
• Install the piston seals 1 and dust seals 2 as shown.
* Wash the brake caliper components with new brake
fluid before reassembly.
* Do not wipe the brake fluid off after washing the
components.
* When washing the components, use the specified
brake fluid. Never use different types of fluid or
cleaning solvents such as gasoline, kerosine, etc.
* Replace the removed piston seals and dust seals
with new ones.
* Apply brake fluid to all of the seals, brake caliper
bores and pistons before reassembly.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
