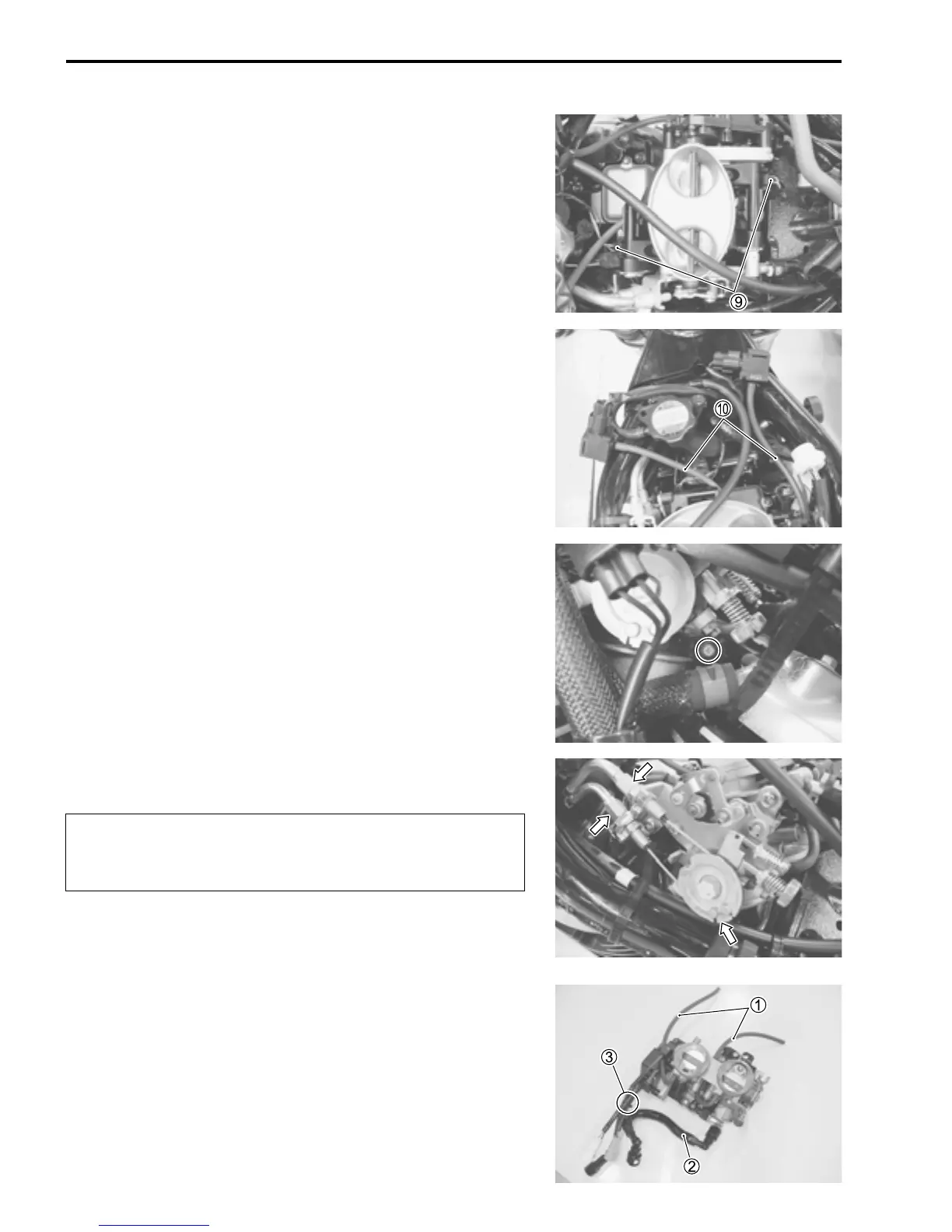

6-14 FUEL SYSTEM AND THROTTLE BODY
• Disconnect the fuel injector lead wire couplers 9.
• Disconnect the vacuum hoses 0.
• Loosen the throttle body clamp screw at the intake pipe side.
• Disconnect the throttle cables from their drum.

THROTTLE BODY DISASSEMBLY
• Remove the vacuum hose 1 and fuel feed hose 2.
• Remove the clamp 3.
After disconnecting the throttle cables, do not snap
the throttle valve from full open to full close. It may
cause damage to the throttle valve and throttle body.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
