8-62 CHASSIS

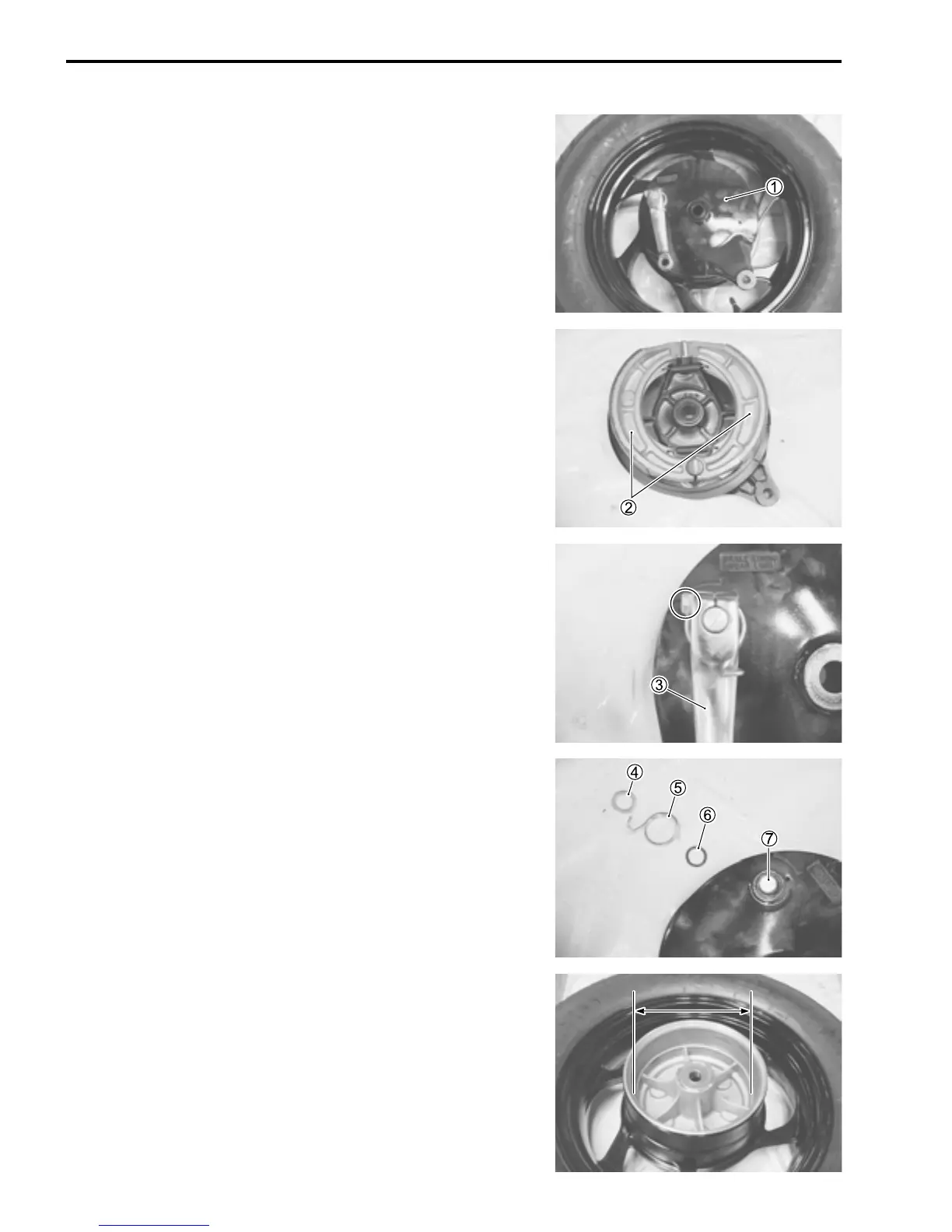

REMOVAL AND DISASSEMBLY
• Remove the rear wheel. (8-33)
• Remove the rear brake panel 1.
• Remove the brake shoes 2.
• Remove the rear brake cam lever 3 by removing bolt.
• Remove the washer 4, spring 5 and O-ring 6.
• Remove the rear brake cam 7.
INSPECTION
BRAKE DRUM
Inspect the brake drum and measure the brake drum I.D. to
determine the extent of wear. Replace the brake drum if the
measurement exceeds the service limit. The value of this limit is
indicated inside the brake drum.
 09900-20102: Vernier calipers
 Brake drum I.D.
Service Limit: 180.7 mm
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
