ELECTRICAL SYSTEM 9-25
SPEEDOMETER AND PILOT LAMP BOX
DESCRIPTION
This speedometer mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emit-
ting Diode). This speedometer is light, thin and of high response compared to those currently in use
because of this composition.
The speedometer pointer is driven by the stepping motor.
The LCD indicates Odo/Trip 1/Trip 2/Clock/oil pressure and engine coolant temp respectively.
NOTE:
If the engine stop switch is turned OFF while the ignition switch is ON, the LCD displays “CHEC”. But it is not
a malfunction.
This condition implies that combination meter receives no signal from the ECM.
In that case, they are restored to normal indication by turning the engine stop switch to RUN position.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com-
pared to the bulb.

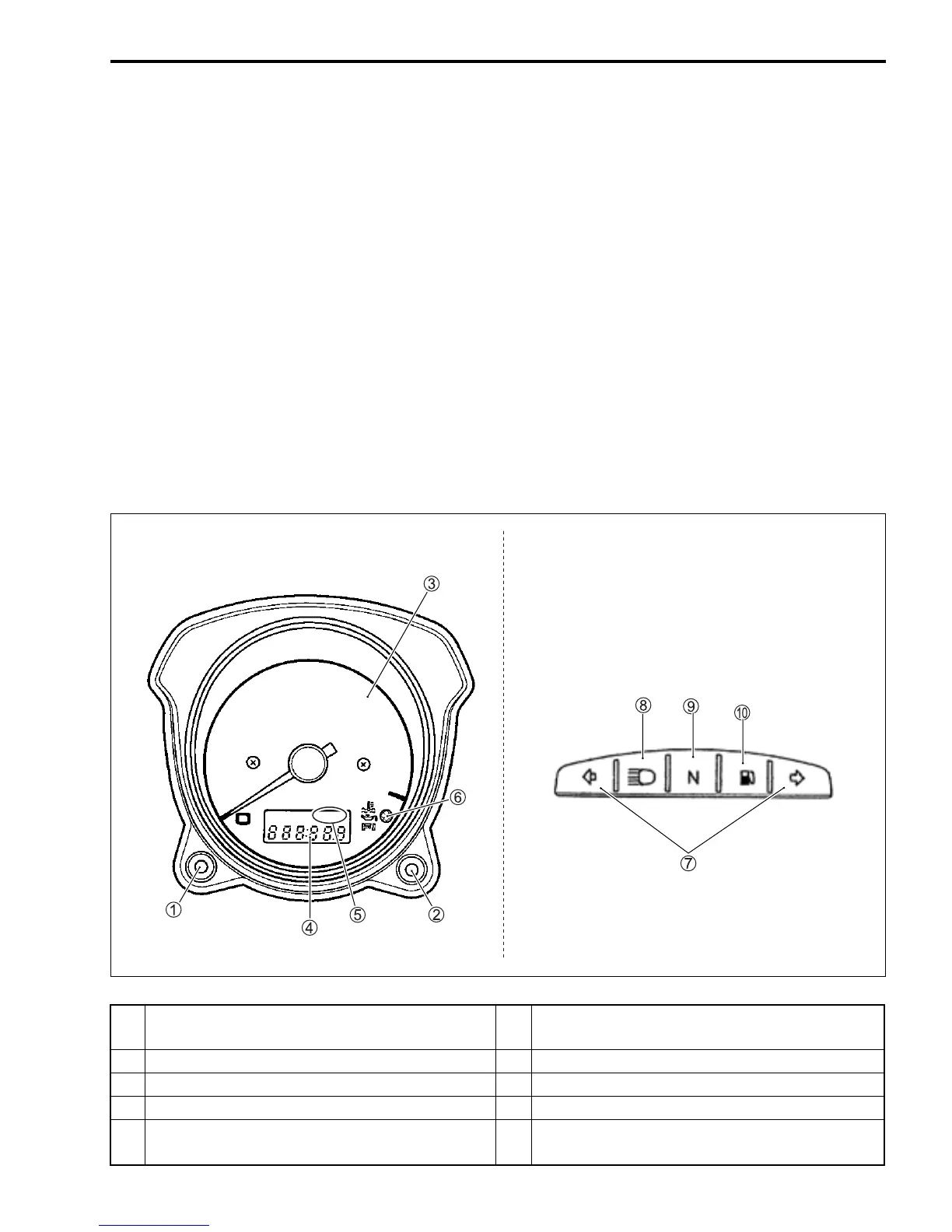

1 Select switch (Odo/Trip/Clock) 6
LED (FI/Oil pressure/Engine coolant tempera-
ture indicator light)
2 Adjust switch 7 LED (Turn signal indicator light)
3 Speedometer 8 LED (High-beam indicator light)
4 LCD (Odo/Trip1/Trip2/Clock/FI) 9 LED (Neutral indicator light)
5
LCD (Oil pressure/Engine coolant temperature
indicator light)
0 LED (Fuel level)
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
