8-64 CHASSIS
REAR BRAKE ROD
REMOVAL AND DISASSEMBLY

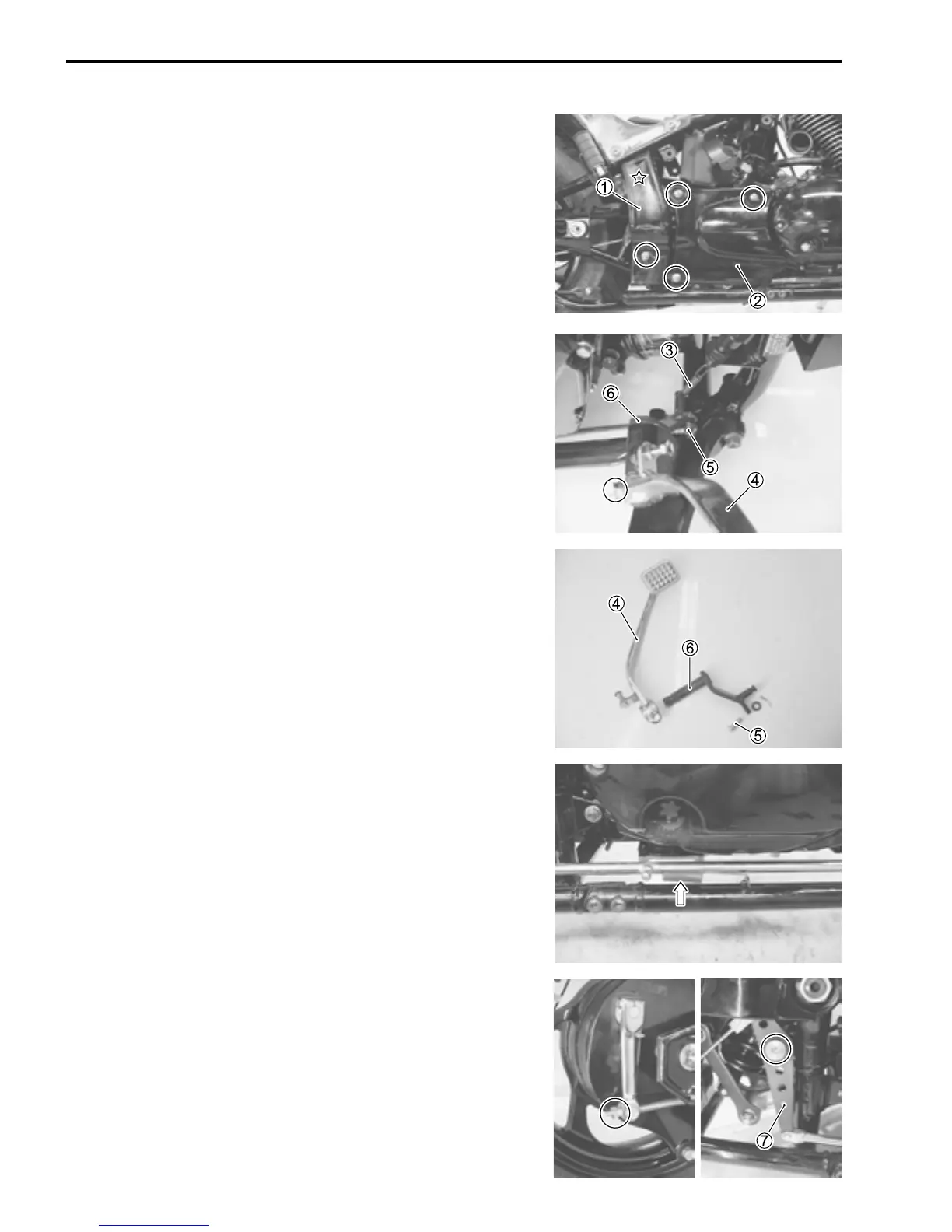

• Remove the exhaust pipes and mufflers assembly. (3-6)
• Remove the right frame lower cover 1, clutch rear cover 2.
: Hooked part
• Remove the rear brake switch spring 3.
• Remove the rear brake pedal 4.
• Remove the cotter pin 5.
• Remove the rear brake pedal shaft 6.
• Remove the return spring.
• Remove the rear brake adjust nut, spring and washer.
• Remove the rear brake link 7.
