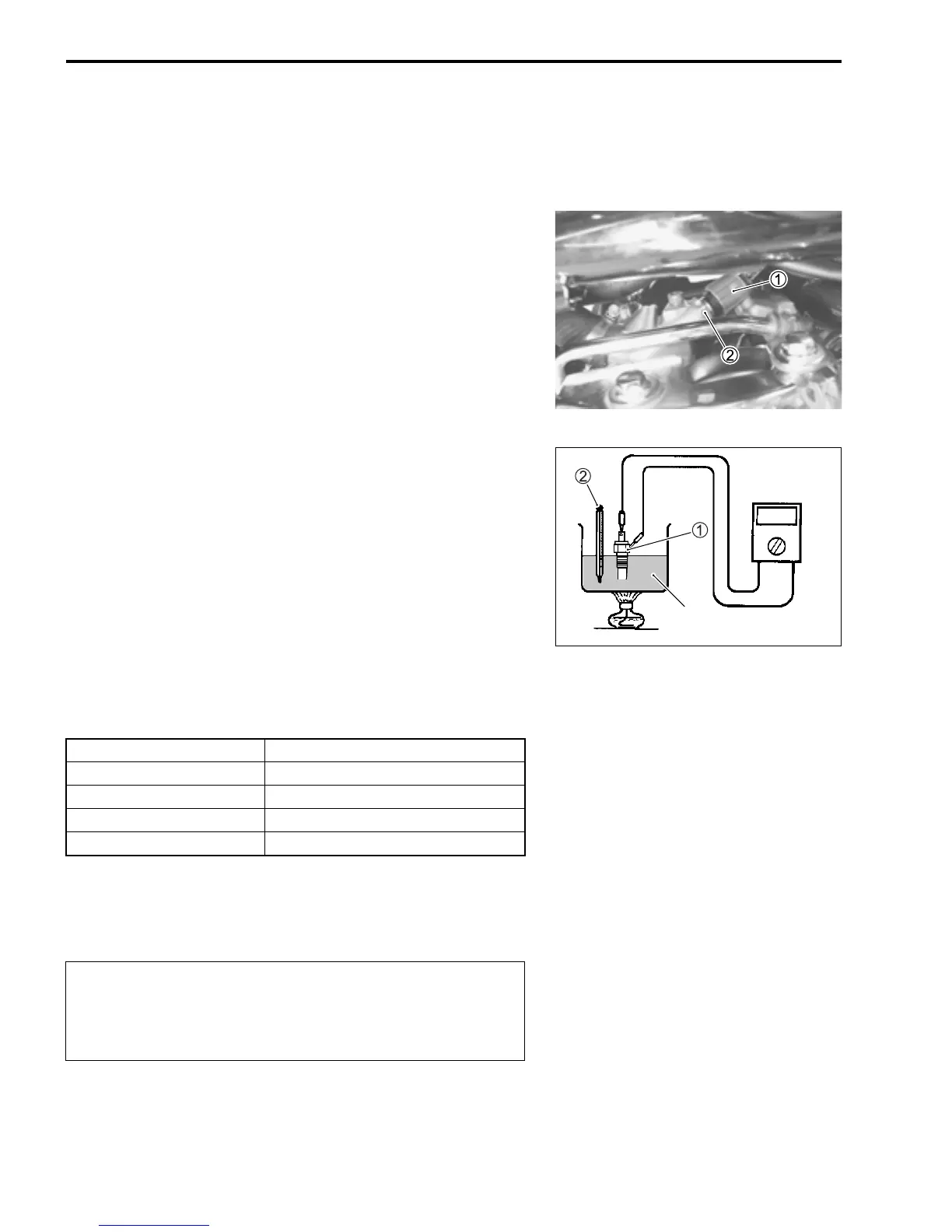

7-10 COOLING AND LUBRICATION SYSTEM
ENGINE COOLANT TEMPERATURE SENSOR
REMOVAL
• Lift and support the fuel tank. (6-3)
• Remove the frame head covers. (3-3)
• Disconnect the engine coolant temperature sensor coupler
1.
• Keep the motorcycle upright.
• Place a rag under the sensor and remove the engine coolant
temperature sensor 2.
INSPECTION
• Check the engine coolant temperature sensor by testing it at
the bench as shown in the figure. Connect the temperature
sensor 1 to a circuit tester and place it in the oil contained in
a pan, which is placed on a stove.
• Heat the oil to raise its temperature slowly and read the col-
umn thermometer 2 and the ohmmeter.
• If the temperature sensor ohmic value does not change in the
proportion indicated, replace it with a new one.
 Temperature sensor specification
If the resistance is noted to show infinity or too much different
resistance value, replace the temperature sensor with a new
one.

Oil
Temperature Standard resistance
20 °C (68 °F) Approx. 2.45 kΩ
40 °C (104 °F) Approx. 1.148 kΩ
60 °C (140 °F) Approx. 0.587 kΩ
80 °C (176 °F) Approx. 0.322 kΩ
* Take special care when handling the temperature
sensor. It may cause damage if it gets a sharp impact.
* Do not contact the engine coolant temperature sen-
sor 1 and the column thermometer 2 with a pan.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
