6-6 FUEL SYSTEM AND THROTTLE BODY

FUEL PUMP RELAY INSPECTION

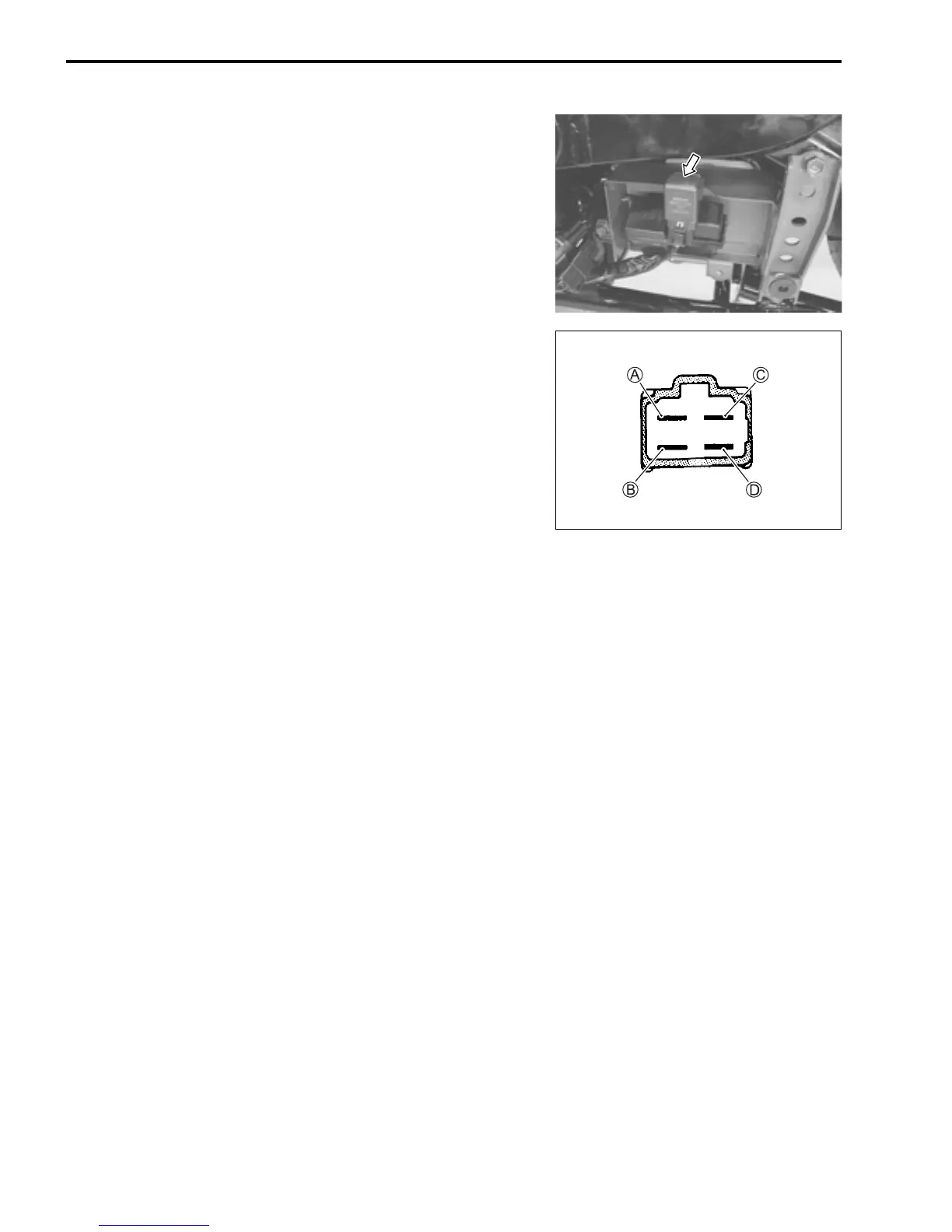

Fuel pump relay is located inside the secondary gear case

cover.

• Remove the secondary gear case cover. (2-16)

• Remove the fuel pump relay.

First, check the insulation between A and B terminals with

pocket tester. Then apply 12 volts to C and D terminals, + to

C and - to D, and check the continuity between A and B.

If there is no continuity, replace it with a new one.
