Suzuki Intruder VZ800 User Manual

SERVICING INFORMATION 10-15

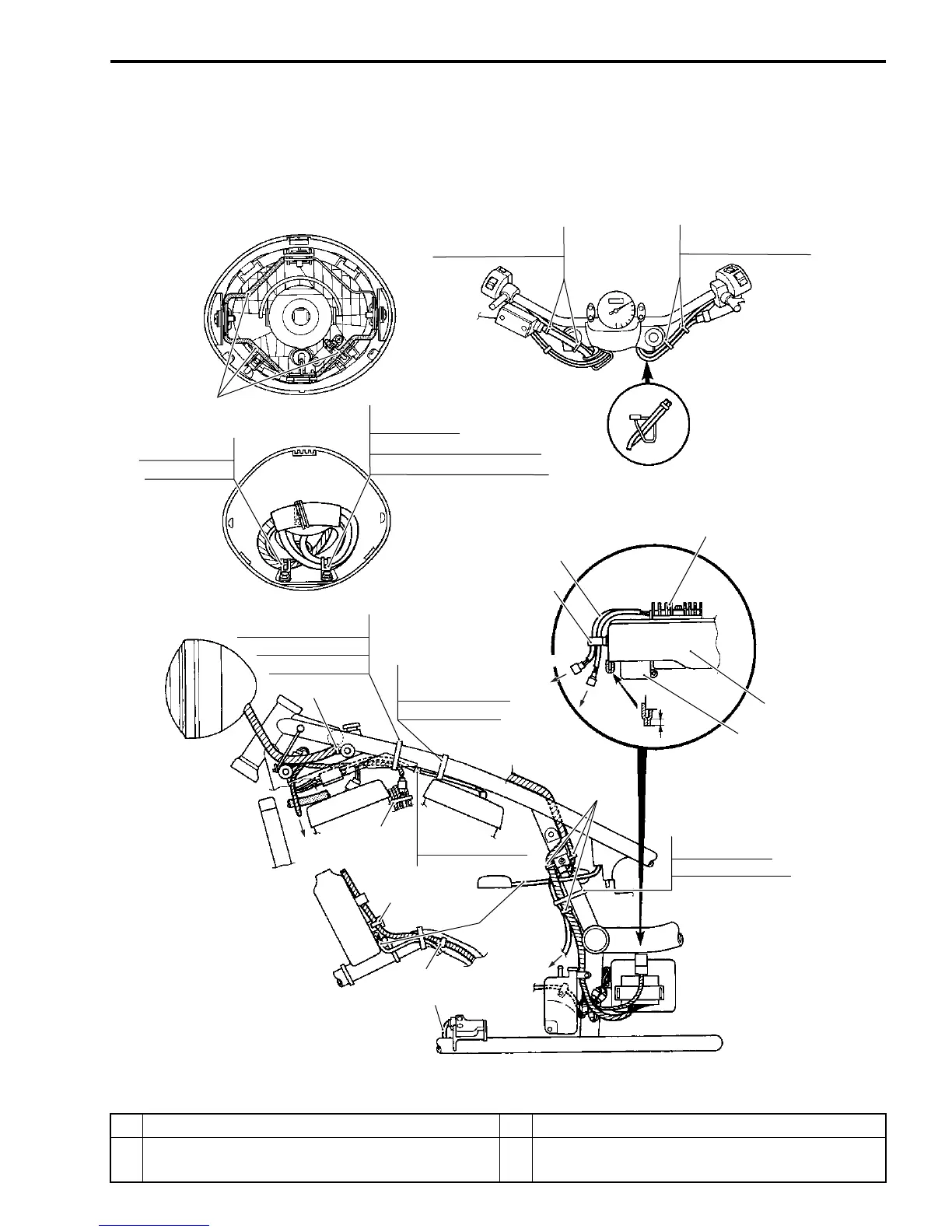

WIRING HARNESS, CABLE AND HOSE ROUTING
WIRING HARNESS ROUTING
Regulator/Rectifier
Electrical parts
holder
Fuse
Wiring harness
Generator leadwire
Clamp
Clamp
Clamp
Wiring harness
Front turn signal light (L & R)
Handlebar switch (L & R)
Speed sensor
Starter motor
leadwire
*3
Clamp
Speedometer
5 mm
Clamp
Handlebar switch (R)
Clamp
Handlebar switch (L)
Clamp
Cushion
Clamp
To generator
To
generator
To wiring harnessTo wiring harness
To horn
Wiring harness
Solenoid branch wire
High tension cord
Clamp
Clamp
Rear ignition coil
High tension cord
High tension cord
Clamp
Clamp
Clamp
*2
*1
*4
To generator
*1 Do not slacker. *3 Cut after excess clamp.
*2 Do not pass through the harness on the bracket. *4
Connect with the gear position switch inside
cover.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
