SERVICING INFORMATION 10-23

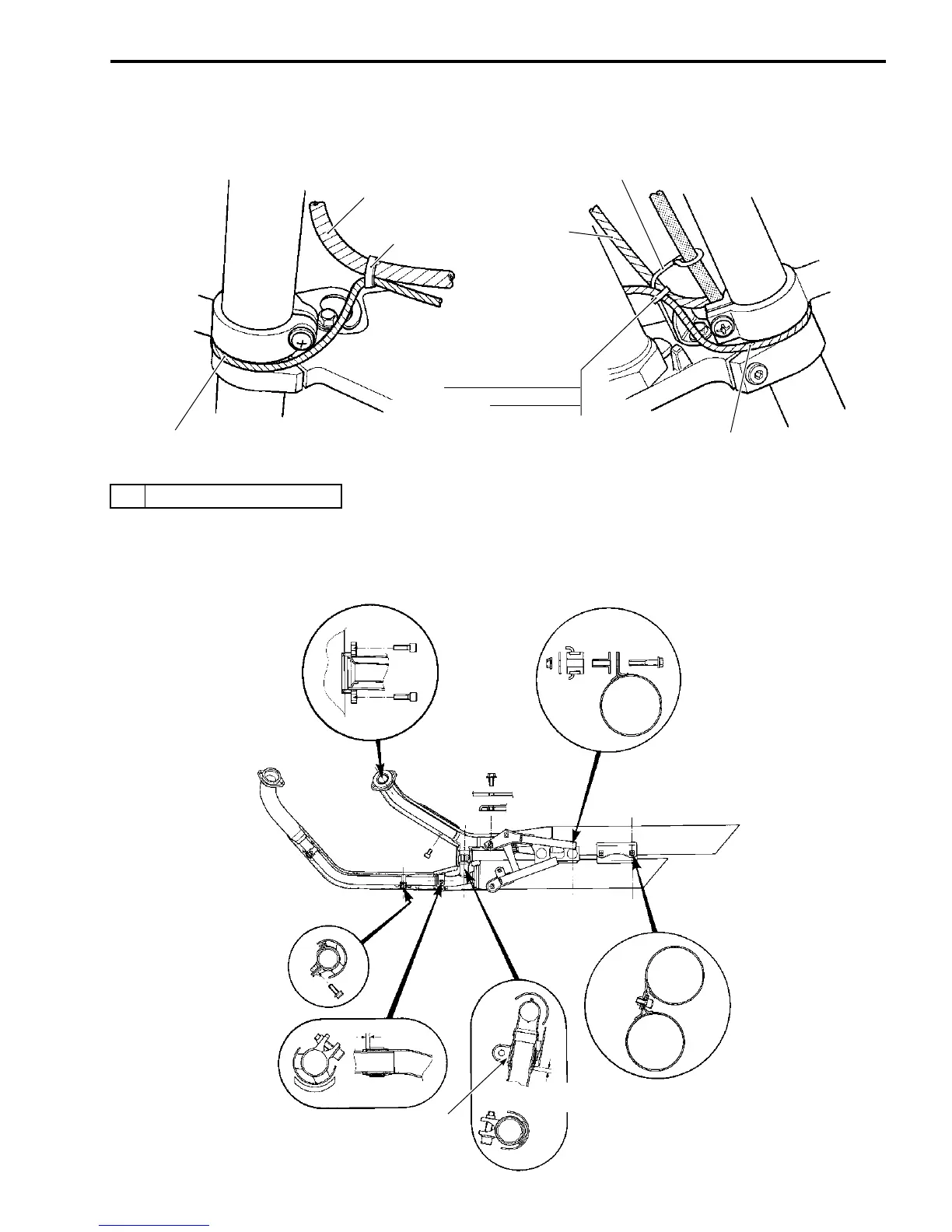

FRONT TURN SIGNAL LEAD WIRE ROUTING
MUFFLER & EXHAUST PIPE INSTALLATION
*1 Cut after clamping.
Clamp
*1
Left handle switch harness
Brake hose guide
Right front turn signal
Clamp
Right front turn signal
Speed sensor
Wiring harness
Left front turn signal
Apply PERMATEX 1372.
5 mm
(0.12 in)
5 mm
(0.12 in)
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
