7-20 COOLING AND LUBRICATION SYSTEM

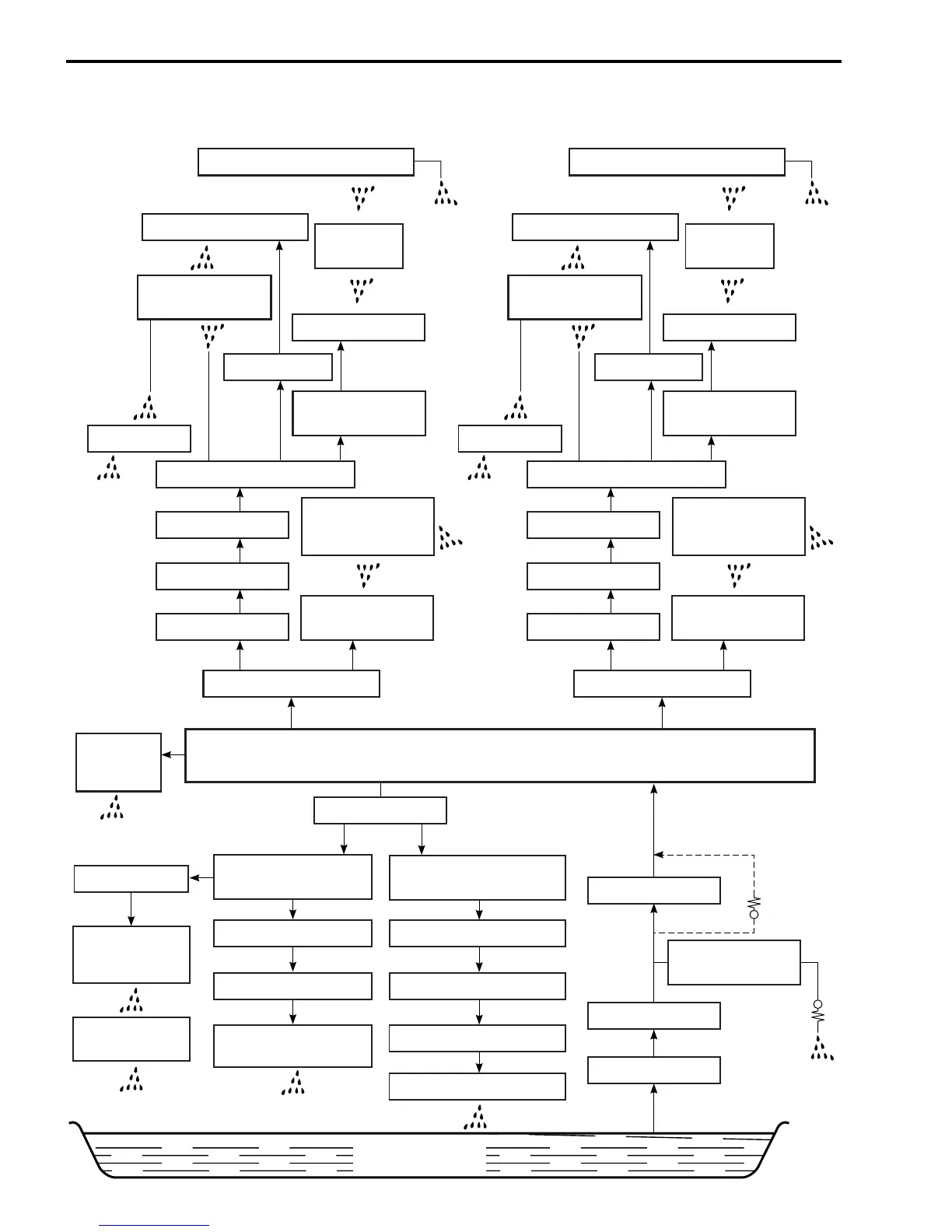

ENGINE LUBRICATION SYSTEM CHART
PRESSURE
REGULATOR
OIL PAN
OIL PUMP
DRIVEN CHAIN
DRIVESHAFT GEARS
DRIVESHAFT
DRIVESHAFT
LEFT BEARING
CLUTCH PLATES
CLUTCH SLEEVE HUB
COUNTERSHAFT GEARS
COUNTERSHAFT
COUNTERSHAFT
LEFT BEARING
OIL JET
SECONDARY
BEVEL GEAR
AND BEARINGS
SECONDARY
BEVEL GEAR
OIL SUMP FILTER
OIL PUMP
OIL FILTER
ORIFICE
MAIN GALLERY
STARTER
CLUTCH
BEARING
R. CRANK JOURNAL
OIL JET
REAR CYLINDER
CYLINDER HEAD
CAMSHAFT R. JOURNAL
CYLINDER WALL,
PISTON AND
PISTON PIN
NO.2 CONROD
BIG END
CAM CHAIN
CAMSHAFT
ROCKER ARM (IN.)
VALVES AND
SPRINGS (IN. & EX.)
CAMSHAFT L. JOURNAL
CAM FACES
(IN. & EX.)
ROCKER ARM SHAFT (EX.)
ROCKER ARM
SHAFT (IN.)
L. CRANK JOURNAL
OIL JET
FRONT CYLINDER
CYLINDER HEAD
CAMSHAFT L. JOURNAL
CYLINDER WALL,
PISTON AND
PISTON PIN
NO.1 CONROD
BIG END
CAM CHAIN
CAMSHAFT
ROCKER ARM (IN.)
VALVES AND
SPRINGS (IN. & EX.)
CAMSHAFT R. JOURNAL
CAM FACES
(IN. & EX.)
ROCKER ARM SHAFT (EX.)
ROCKER ARM
SHAFT (IN.)
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
