5-26 FI SYSTEM
SHOW DATA WHEN TROUBLE
(DISPLAING DATA AT THE TIME OF DTC)
ECM stores the engine and driving conditions (in the form of data as shown in the figure) at the moment of
the detection of a malfunction in its memory. This data is called “Show data when trouble”.
Therefore, it is possible to know engine and driving conditions (e.g., whether the engine was warm or not,
where the motorcycle was running or stopped) when a malfunction was detected by checking the show data
when trouble. This show data when trouble function can record the maximum of two Diagnostic Trouble
Codes in the ECM.
Also, ECM has a function to store each show data when trouble for two different malfunctions in the order as
the malfunction is detected. Utilizing this function, it is possible to know the order of malfunctions that have
been detected. lts use is helpful when rechecking or diagnosing a trouble.

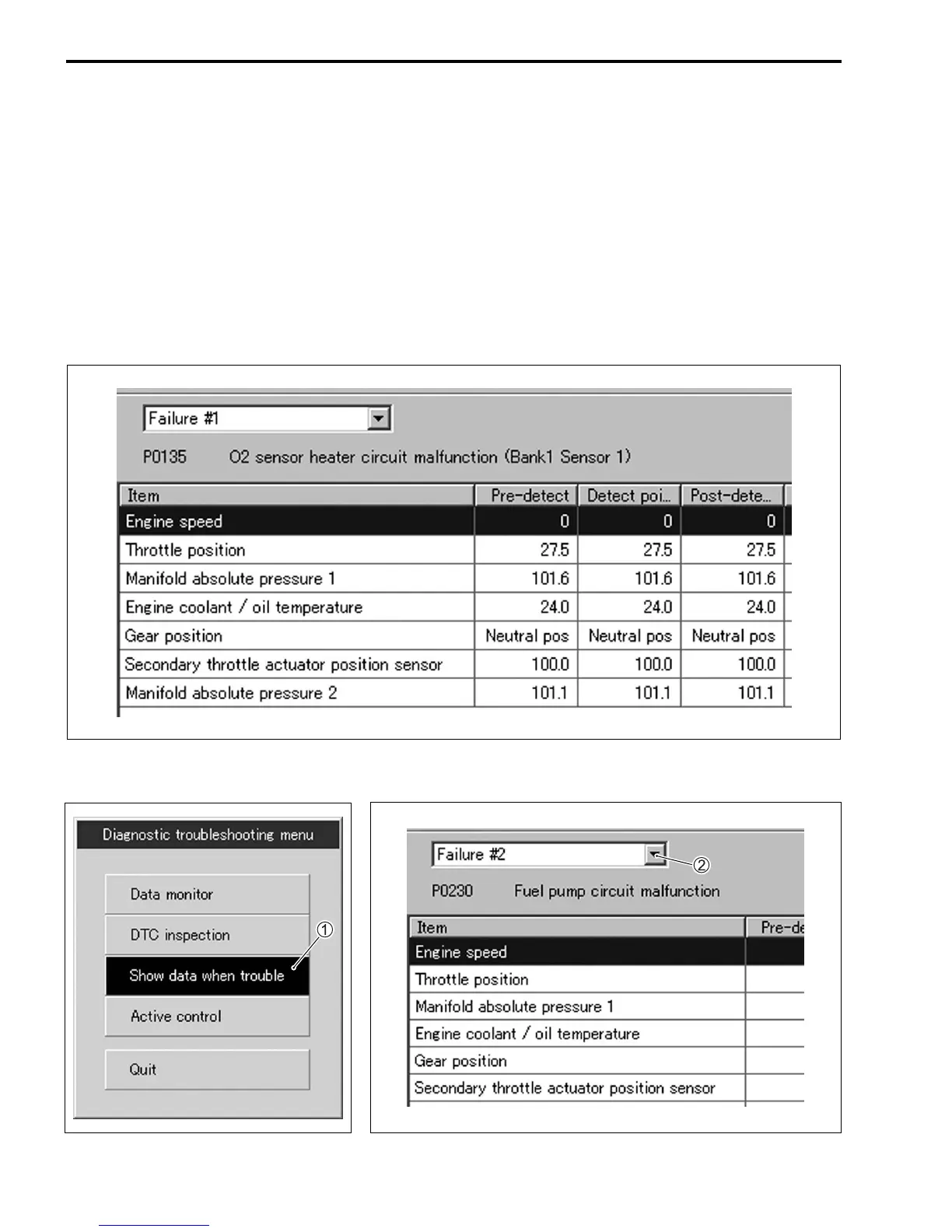

• Click “Show data when trouble” 1 to display the data. By clicking the drop down button 2, either “Failure
#1” or “Failure #2” can be selected.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
