FUEL SYSTEM AND THROTTLE BODY 6-25

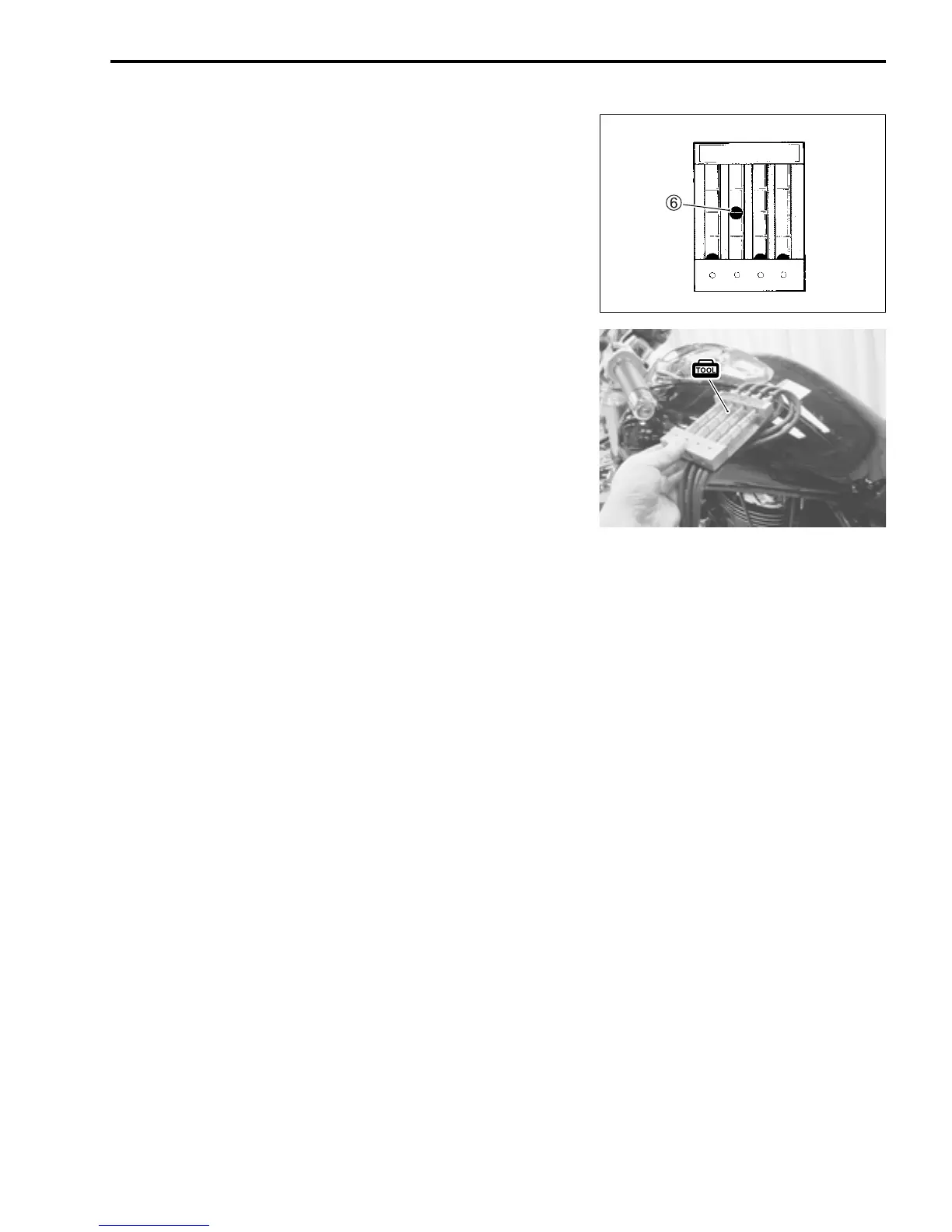

• After making sure that the steel ball stays steady at the center
line, disconnect the hose from the No. 1 throttle body vacuum
nipple and connect the next hose to this vacuum nipple.
• Turn air screw to bring the other steel ball 6 to the center
line.
The balancer gauge is now ready for use in balancing the throt-
tle valves.
Throttle valve synchronization
Using the vacuum balancer gauge, inspect the throttle valve
synchronization in the same manner of the digital vacuum tester.
Pay attention to the following points:
The vacuum gauge is positioned vertical level, and in this posi-
tion the two balls should be within one ball dia. If the difference
is larger than one ball, turn the balance adjusting screw on the
throttle body and bring the ball to the same level.
A correctly adjusted throttle valve synchronization has the balls
in the No. 1 and No. 2 at the same level.
 09913-13121: Vacuum balancer gauge
NOTE:
* During balancing the throttle valves, always set the engine
rpm at 1 100 rpm, using throttle stop screw.
* After balancing the two valves, set the idle rpm to 1 100 rpm
by the throttle stop screw.
THROTTLE POSITION SENSOR (TPS) SETTING
After all adjustments are completed, check or adjust the TPS
setting condition. (5-19)
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
