4-2 SHAFT DRIVE

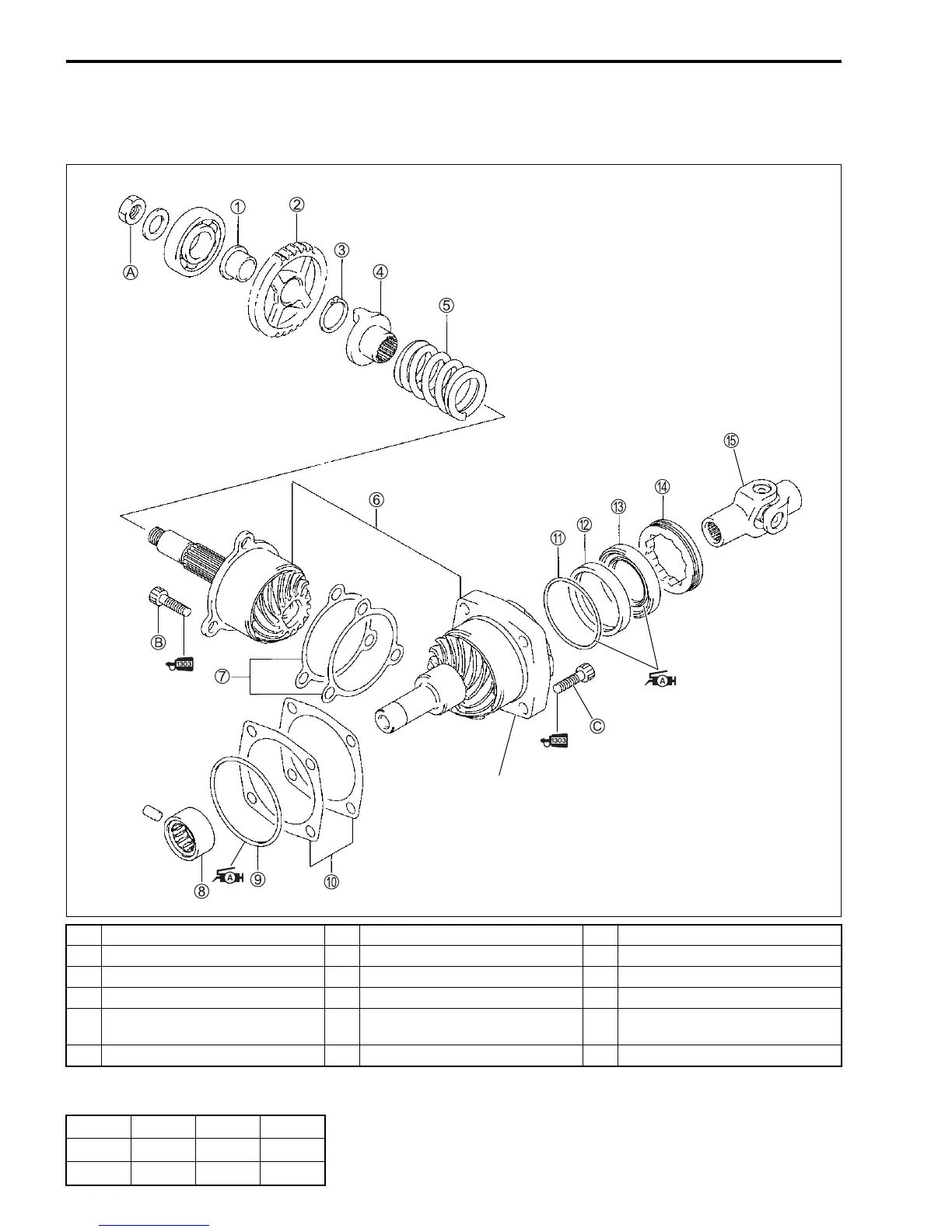

SECONDARY BEVEL GEARS
CONSTRUCTION
* A: Do not disassemble the secondary driven gear.

1 Bush 7 Shims (5 kinds) C Oil seal
2 Overdriving driven gear 8 Driven bevel gear bearing D Bearing stopper
3 Circlip 9 O-ring E Universal joint
4 Output cam dog 0 Shims (5 kinds) A Secondary drive gear shaft nut
5 Damper spring A O-ring B
Secondary drive bevel gear bear-
ing retainer bolt
6 Secondary bevel gear set B Oil seal housing C Secondary driven bevel gear bolt
ITEM N·m kgf-m lb-ft
A 105 10.5 76.0
B, C 23 2.3 16.5
*A
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
