8-58 CHASSIS

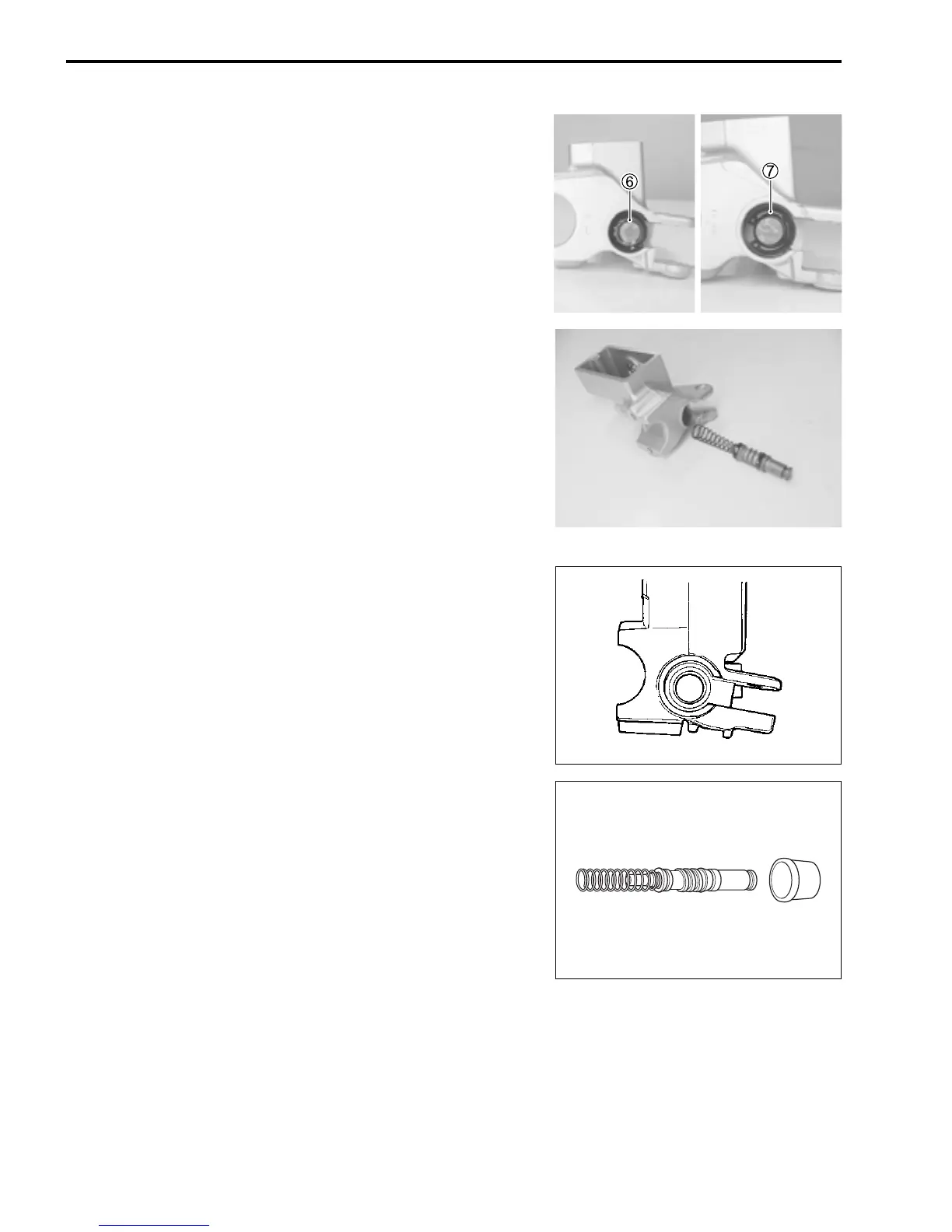

• Pull the dust boot 6 out and remove the snap ring 7.
• Remove the piston assembly.
MASTER CYLINDER INSPECTION
MASTER CYLINDER
Inspect the master cylinder bore for any scratches or damage. If
any damages are found, replace the master cylinder with a new
one.
PISTON AND RUBBER PARTS
Inspect the piston surface, primary/secondary cup, and dust
boot for any scratches, wear or damage. If any damages are
found, replace the piston set with a new one.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
