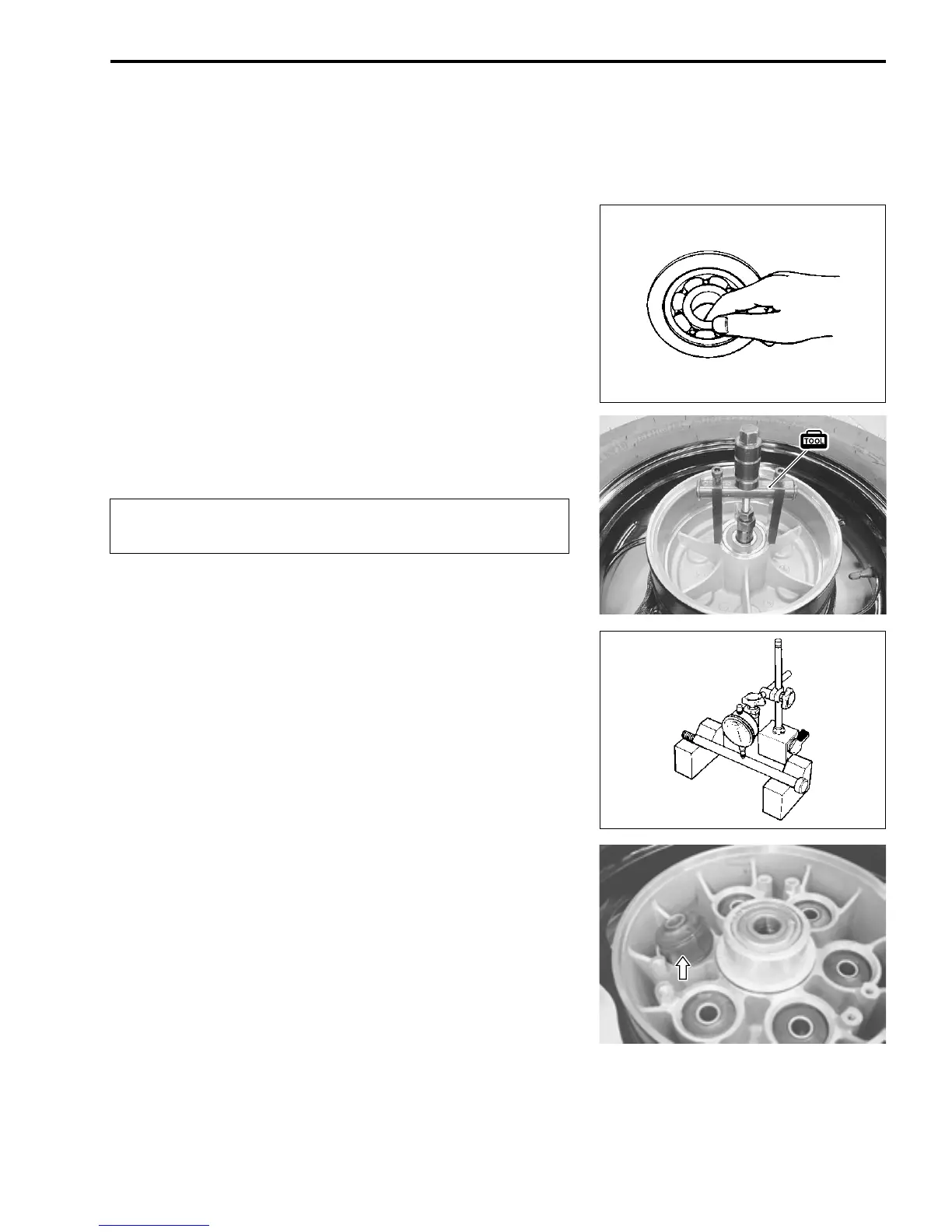

CHASSIS 8-35
INSPECTION AND DISASSEMBLY
WHEEL (8-66)
TIRE (2-23 and 8-66)
WHEEL BEARINGS
Inspect the play of the wheel bearings by finger while they are in
the wheel. Rotate the inner race by finger to inspect for abnor-
mal noise and smooth rotation.
Replace the bearing in the following procedure if there is anything
unusual.
• Remove the wheel bearings by with the special tool.
 09921-20240: Bearing remover set (17 mm)

REAR AXLE
Using a dial gauge, check the rear axle for runout.
If the runout exceeds the limit, replace the rear axle.
 Axle shaft runout
Service Limit: 0.25 mm (0.010 in)
 09900-20607: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
WHEEL DAMPER
Inspect the dampers for wear and damage.
Replace the dampers if there is anything unusual.
The removed bearings should be replaced with new
ones.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
