6-22 FUEL SYSTEM AND THROTTLE BODY
FUEL INJECTOR INSTALLATION
• Apply thin coat of the engine oil to new injector dust seals and
O-rings. (6-19)
• Install the injector by pushing it straight to the throttle body.
Never turn the injector while pushing it. (6-19)
FAST IDLE
The fast idle system is automatic type.
When the fast idle cam is turned by the secondary throttle valve
actuator, the cam pushes the lever on the throttle valve shaft
causing the throttle valve to open and raise the engine speed.
When the engine has warmed up, depending on the water tem-
perature, ambient temperature and lapsed time, the fast idle is
cancelled allowing the engine to resume idle speed.

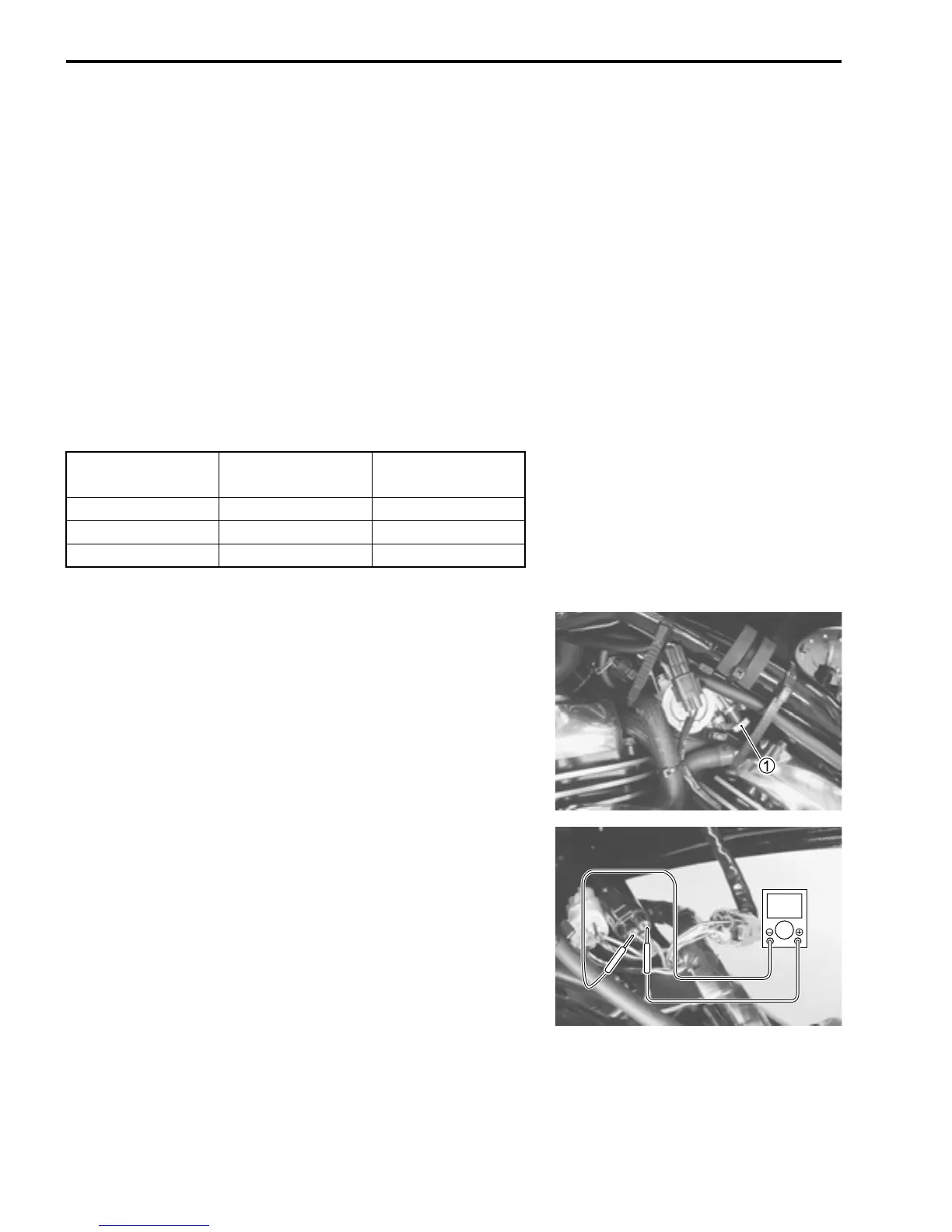

FAST IDLE ADJUSTMENT
• Lift and support the fuel tank. (6-3)
• Start up the engine and run it in idling condition for warming
up.
• Set the idle rpm to 1 100 rpm by the throttle stop screw 1.
• Check and adjust the TP sensor. (5-19)
• Measure the TP sensor output voltage at the coupler
(between + Bl/B wire and - B/Br wire).

TP sensor output voltage at idle position: Approx. 1.12 V
 09900-25008: Multi-circuit tester set
09900-25009: Needle pointed probe set
 Tester knob indication: Voltage ()
Ambient Temp. Fast idle rpm
Fast idle cancel-
ling time
–5 °C (23 °F) 1 500 – 2 100 rpm Approx. 100 sec.
15 °C (59 °F) 1 500 – 2 100 rpm Approx. 60 sec.
25 °C (77 °F) 1 500 – 2 100 rpm Approx. 50 sec.
V
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
