9-8 ELECTRICAL SYSTEM
CHARGING SYSTEM
TROUBLESHOOTING
Battery runs down quickly
Step 1
1) Check accessories which use excessive amounts of electricity.
Are accessories being installed?
Step 2
1) Check the battery for current leaks. (9-9)
Is the battery for current leaks OK?
Step 3
1) Measure the regulated voltage between the battery terminals. (9-10)
Is the regulated voltage OK?
Step 4
1) Measure the resistance of the generator coil. (9-10)
Is the resistance of generator coil OK?
YES Remove accessories.
NO Go to Step 2.
YES Go to Step 3.
NO
• Short circuit of wire harness
• Faulty electrical equipment
YES
• Faulty battery
• Abnormal driving condition
NO Go to Step 4.
YES Go to Step 5.
NO
• Faulty generator coil
• Disconnected lead wires

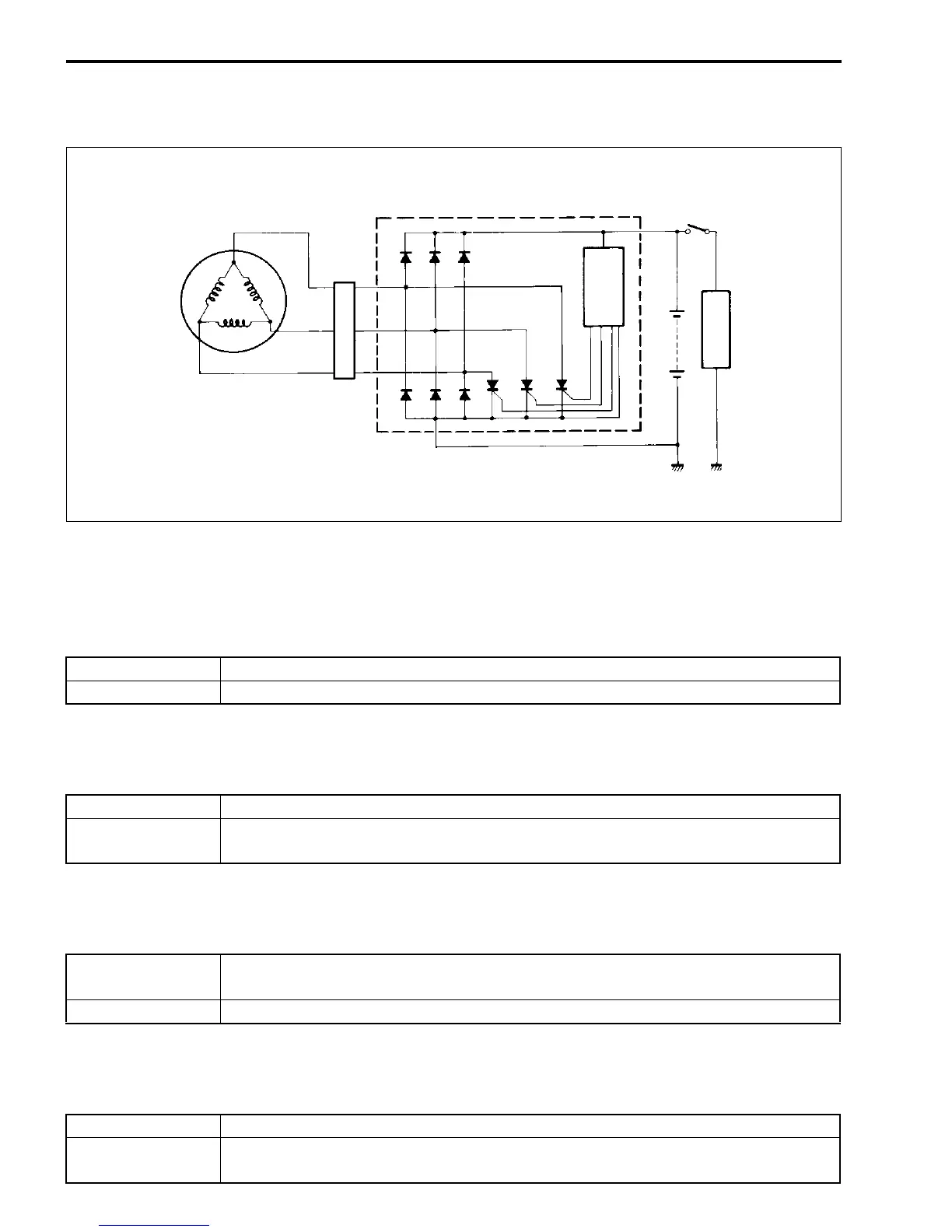

Generator
Regulator/rectifier
SCR
IC
IG.switch
Load
Battery
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
