FI SYSTEM 5-75
SENSORS

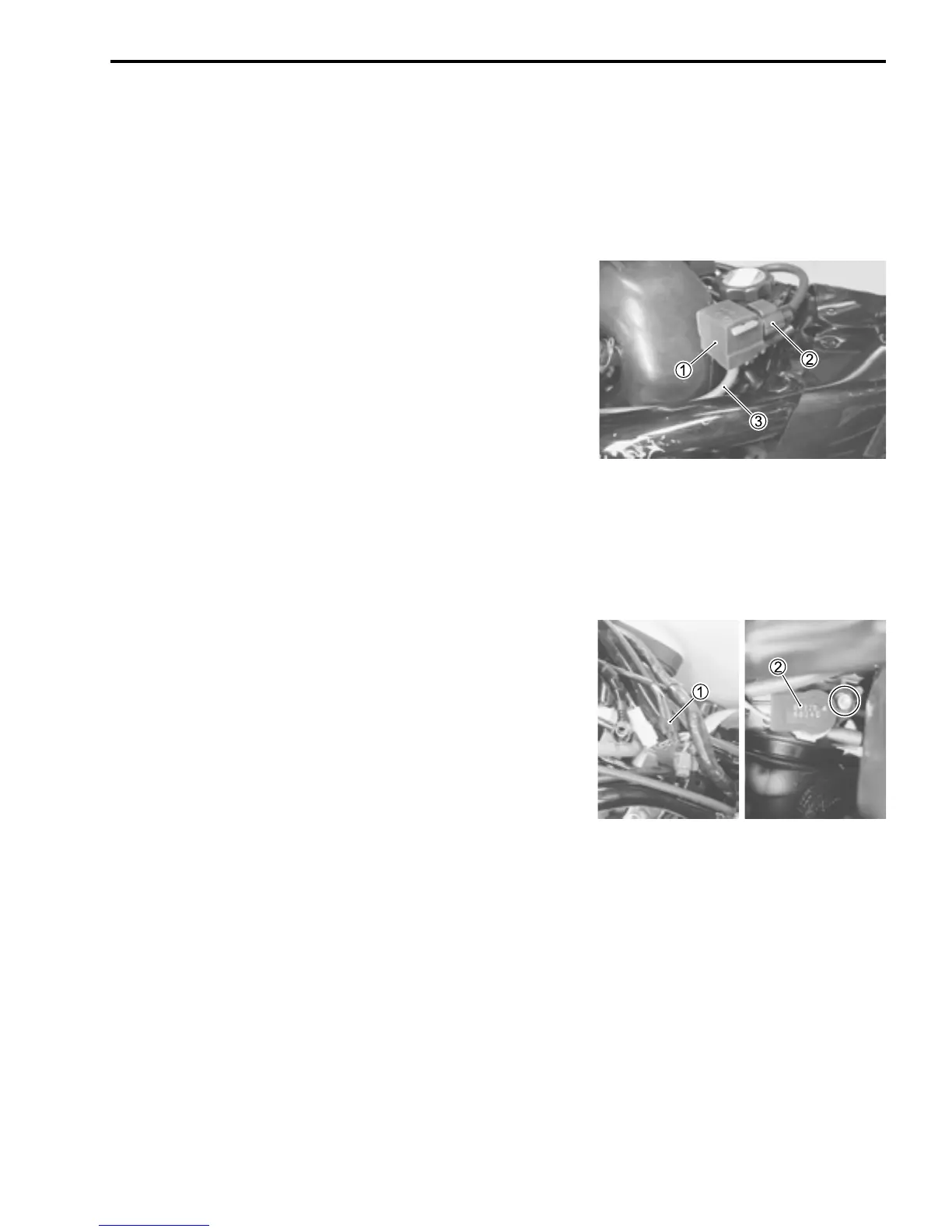

IAP SENSOR INSPECTION
The intake air pressure sensor is located on the air inlet pipe.
(5-33)
IAP SENSOR REMOVAL/INSTALLATION
• Remove the fuel tank. (6-3)
• Remove the IAP sensors 1 and disconnect the couplers 2
and vacuum hoses 3.
• Installation is in the reverse order of removal.
TP SENSOR INSPECTION
The throttle position sensor is installed on the No. 2 throttle
body. (5-37)
TP SENSOR REMOVAL/INSTALLATION
• Remove the fuel tank. (6-3)
• Loosen the inlet pipe screws. (5-47)
• Move the inlet pipe. (5-19)
• Disconnect the coupler 1.
• Remove the screw with a torx wrench (T25) and TP sensor
2.
• Install the TP sensor to the No. 2 throttle body.
(6-18)
• TP sensor setting procedure. (5-19)
