CHASSIS 8-45
REASSEMBLY
Reassemble the swingarm and shock absorber in the reverse
order of disassembly and removal, and pay attention to the fol-
lowing points:
SWINGARM BEARING
• Install the swingarm pivot bearing races by with the special
tool.
 09913-70210: Bearing installer set (40 mm)
NOTE:
The swingarm pivot bearing race with plate is positioned right
side.
• Install the swingarm cushion rod upper side bearings with the
special tool. (8-39)
 09924-84510: Bearing installer set
NOTE:
When reinstalling the bearings, stamped mark of bearing must
face outside.
CUSHION LEVER BEARING
• Install the bearings into the cushion lever by with the special
tool. (8-39)
 09924-84521: Bearing installer
NOTE:
When installing the bearings, stamped mark of bearing must
face outside.

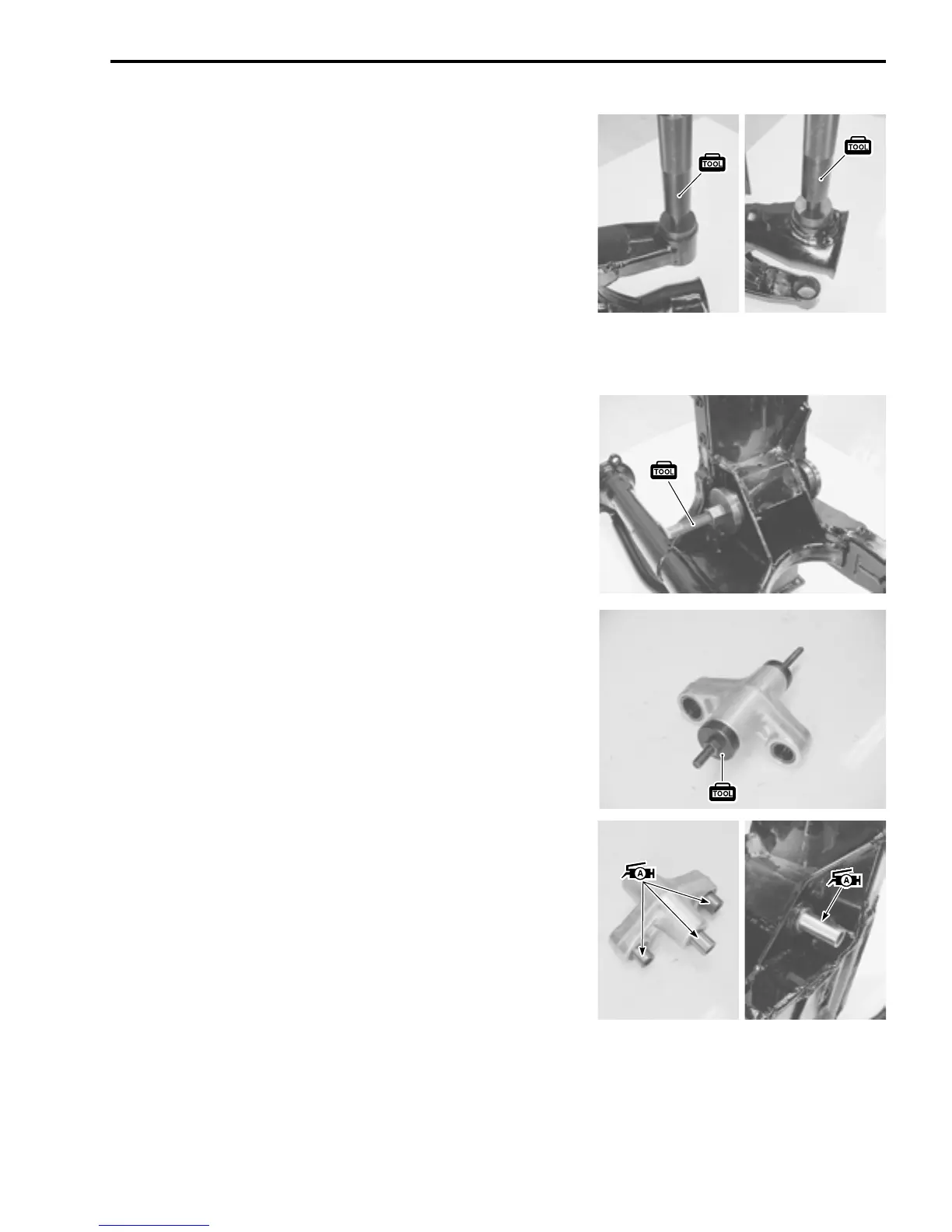

• Apply grease to the spacers and bearings.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
