FI SYSTEM 5-9
USING THE MULTI-CIRCUIT TESTER
• Use the Suzuki multi-circuit tester (09900-25008).
• Use well-charged batteries in the tester.
• Be sure to set the tester to the correct testing range.
USING THE TESTER
• Incorrectly connecting the + and - probes may cause the
inside of the tester to burnout.
• If the voltage and current are not known, make measure-
ments using the highest range.
• When measuring the resistance with the multi-circuit tester, ∞
will be shown as 10.00 MΩ and “1” flashes in the display.
• Check that no voltage is applied before making the measure-
ment. If voltage is applied, the tester may be damaged.
• After using the tester, turn the power off.
 09900-25008: Multi-circuit tester set
NOTE:
* When connecting the multi-circuit tester, use a needle pointed
probe set to the back side of the lead wire coupler and connect
the probes of tester to them.
* Use a needle pointed probe set to prevent the rubber of the
water proof coupler from damage.
 09900-25009: Needle pointed probe set

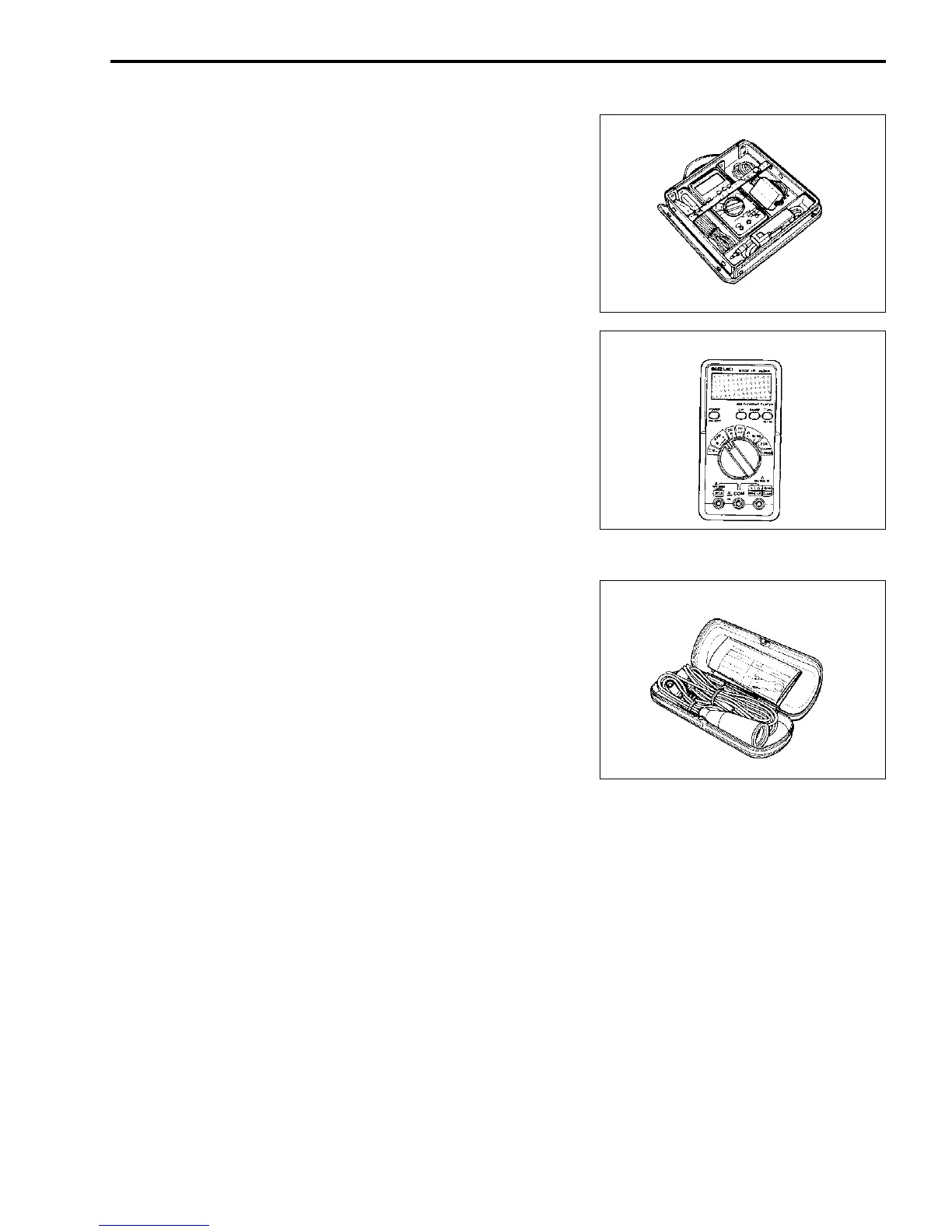

MULTI-CIRCUIT TESTER
NEEDLE POINTED PROBE SET
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
