ELECTRICAL SYSTEM 9-37
BATTERY
SPECIFICATIONS

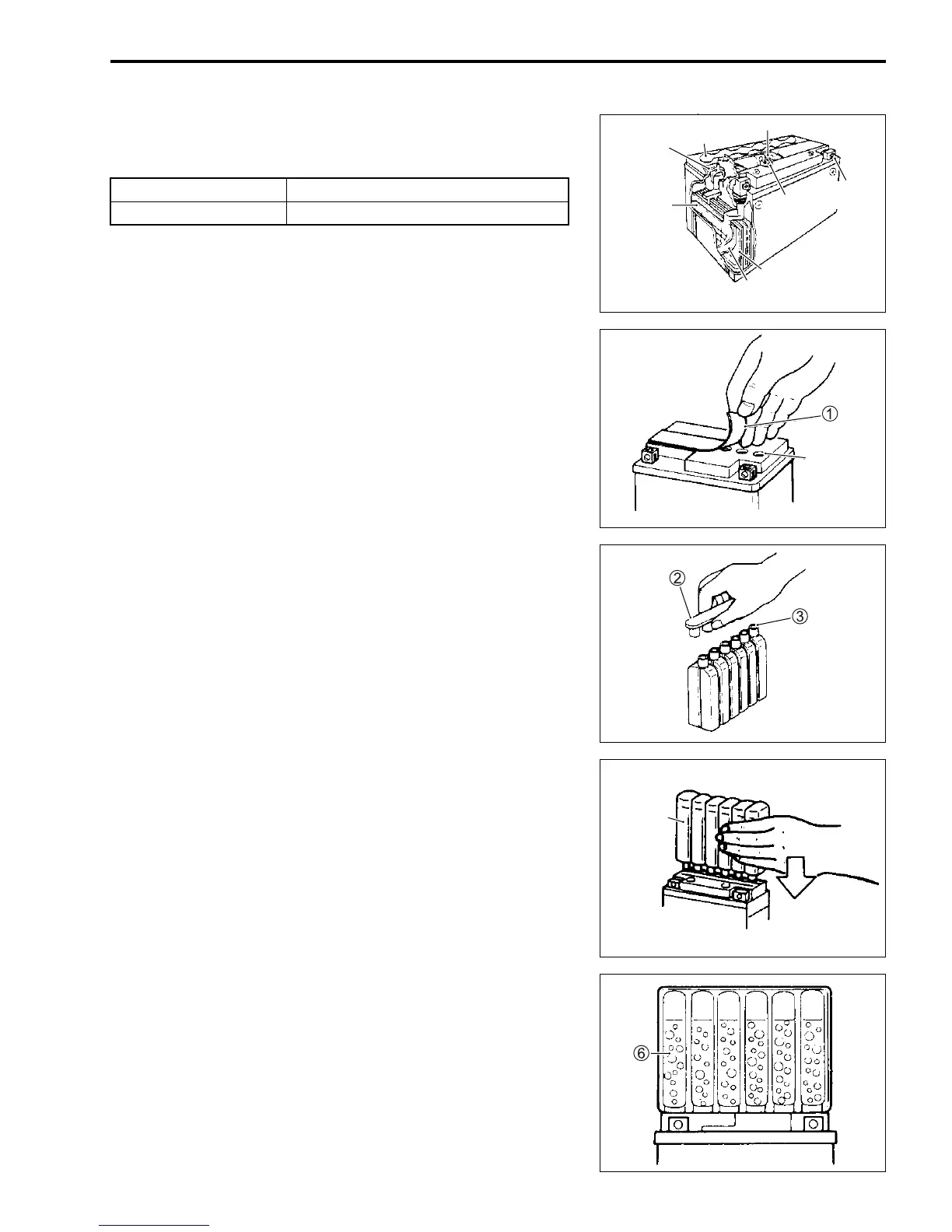

INITIAL CHARGING
Filling electrolyte
• Remove the aluminum tape 1 sealing the battery electrolyte
filler holes.
• Remove the caps 2.
NOTE:
* After filling the electrolyte completely, use the removed cap 2
as sealing caps of battery-filler holes.
* Do not remove or pierce the sealed areas 3 of the electrolyte
container.
Insert the nozzles of the electrolyte container into the battery’s
electrolyte filler holes, holding the container firmly so that it does
not fall. Take precaution not to allow any of the fluid to spill.
• Make sure air bubbles 6 are coming up each electrolyte con-
tainer, and leave in this position for about more than 20 min-
utes.
Type designation FTX12-BS
Capacity 12 V, 36 kC (10 Ah)/10 HR
Upper
cover
breather
Cathode
plates
Stopper
Filter
Terminal
Safety valve
Anode plates
Separator
(fiberglass plate)
Filler holes
Electrolyte
containers
Insert in
filler holes
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
