7-8 COOLING AND LUBRICATION SYSTEM

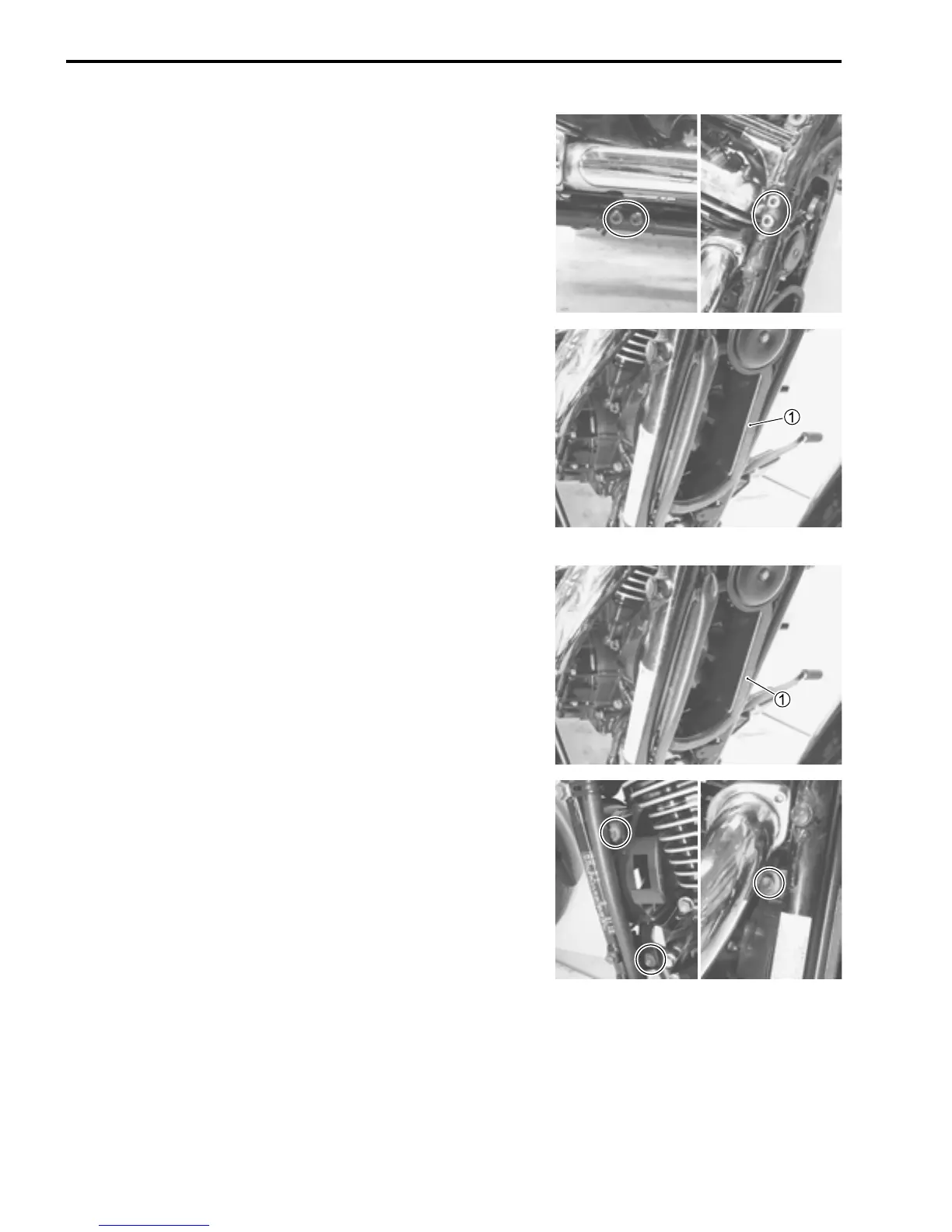

• Remove the cooling fan 1 by disconnecting the cooling fan
lead wire coupler.
INSTALLATION
Install the cooling fan in the reverse order of removal. Pay atten-
tion to the following points:
• Put the cooling fan 1 between the down tube and the engine.
• Temporary tighten the down tube mounting bolts. (3-9)
• Tighten the cooling fan mounting bolts.
• Tighten the down tube mounting bolts to the specified torque.
(3-9)
• Install the radiator. (7-5)
