10-20 SERVICING INFORMATION

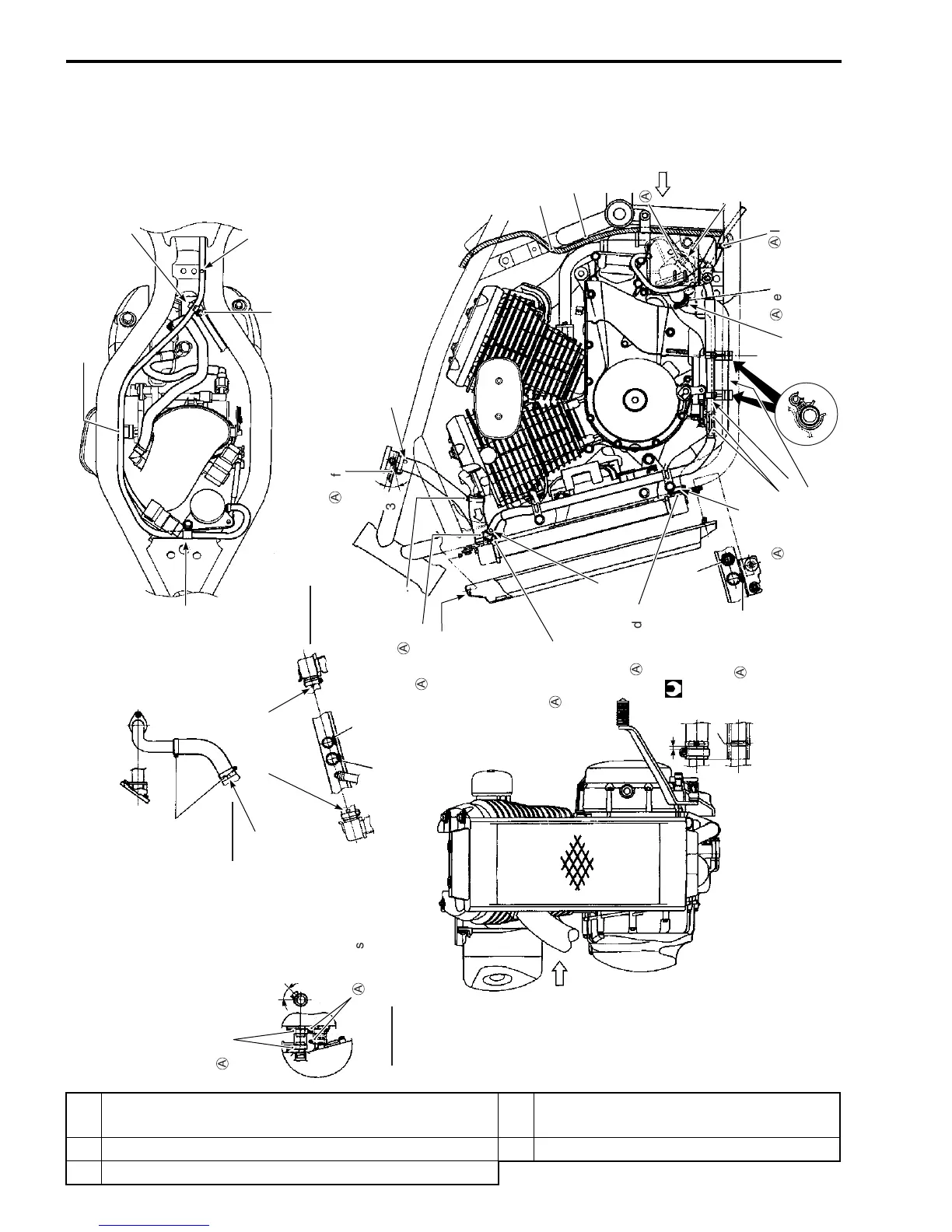

COOLING SYSTEM HOSE ROUTING
*1
Pass through the reservoir hose between frame and
throttle valve actuator.
*4 Set the hose with dent of engine case.
*2 Clamp the hose with frame and harness. A The end of the clamp should face...
*3 Be careful not to dent hose with frame cover.
Set the white mark.
)
left side.
)
left side.
)
left side.
Set the white mark.
Set the white mark.
)
left side.
)
out side.
Set the white mark.
)
left side.
Set the yellow mark.
Clearance
Match mark
Set the yellow mark.
Clamp from left side.
Set the white mark.
Clamp from back side.
Clamp from right side.
45˚
)
right side.
)
right side.
Set the white mark.
VIEW B
B
A
VIEW A
C
C
VIEW C
Clamp (small side)
Clamp (big side)
Set the white mark.
Set the cut-rib inside.
17.5 N
.
m
(1.75kgf-m, 12.5 lb-ft)
Set the yellow mark.
)
left side.
)
up side.
)
left side.
*1
*2
*3
*4
)
left side.
30˚
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
