FI SYSTEM 5-19

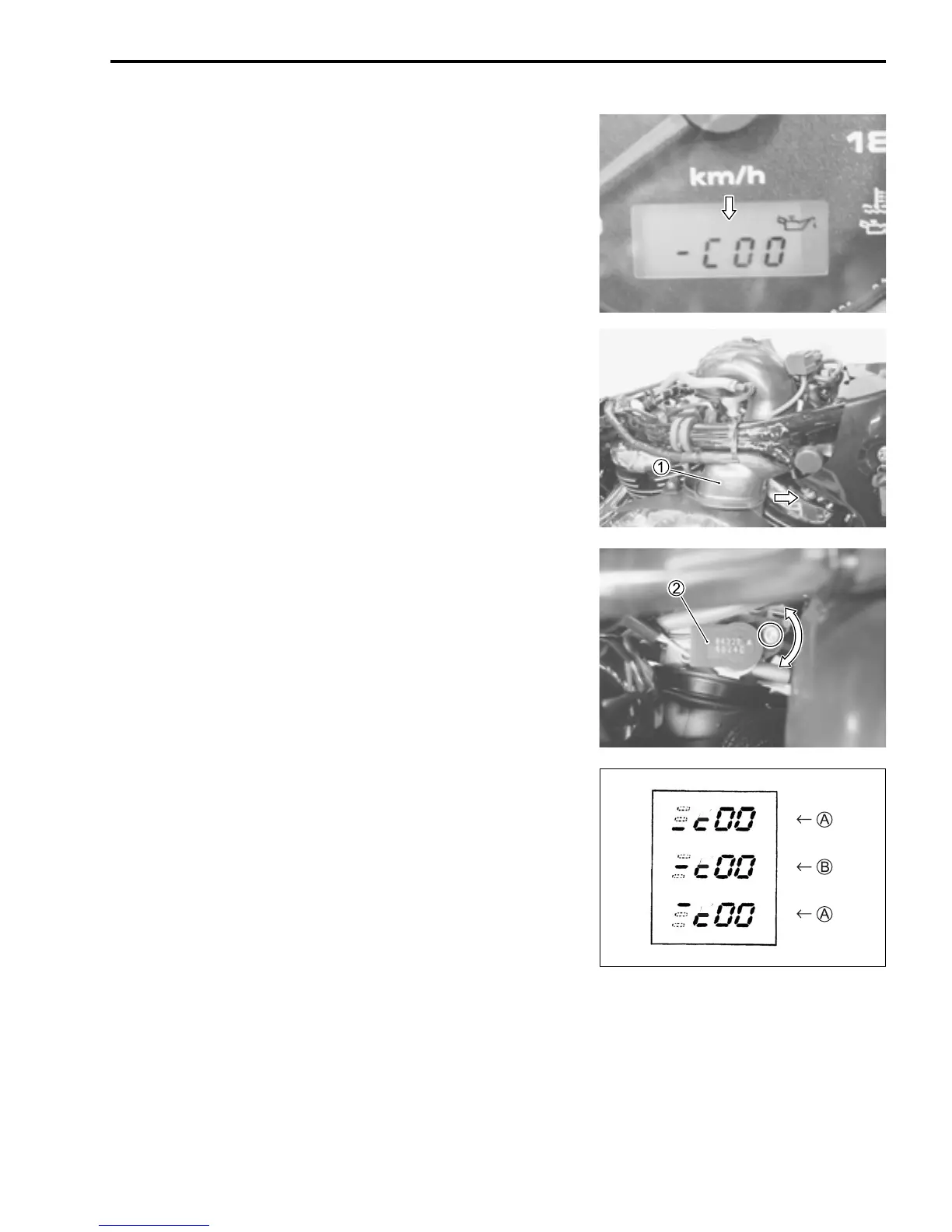

TPS ADJUSTMENT
1. Warm up the engine and adjust the engine idle speed to 1 100
± 100 r/min. (2-13)
2. Connect the special tool (Mode select switch) and select the
dealer mode.
3. Remove the fuel tank. (6-3)
4. Loosen the inlet pipe screws. (5-47)
5. Move the inlet pipe 1.
6. Loosen the screw with a torx wrench (T25) and turn the throt-
tle position sensor 2 and bring the line to the middle.
7. Then, tighten the screw to fix the throttle position sensor.
 09930-82720: Mode select switch
The LCD displays the line for 0.4 sec. at a time, and when such
a display repeats two times, it indicates the current position
where the sensor is fixed.
A Incorrect
B Correct position
SAMPLE
