Suzuki Intruder VZ800 User Manual

FI SYSTEM 5-77

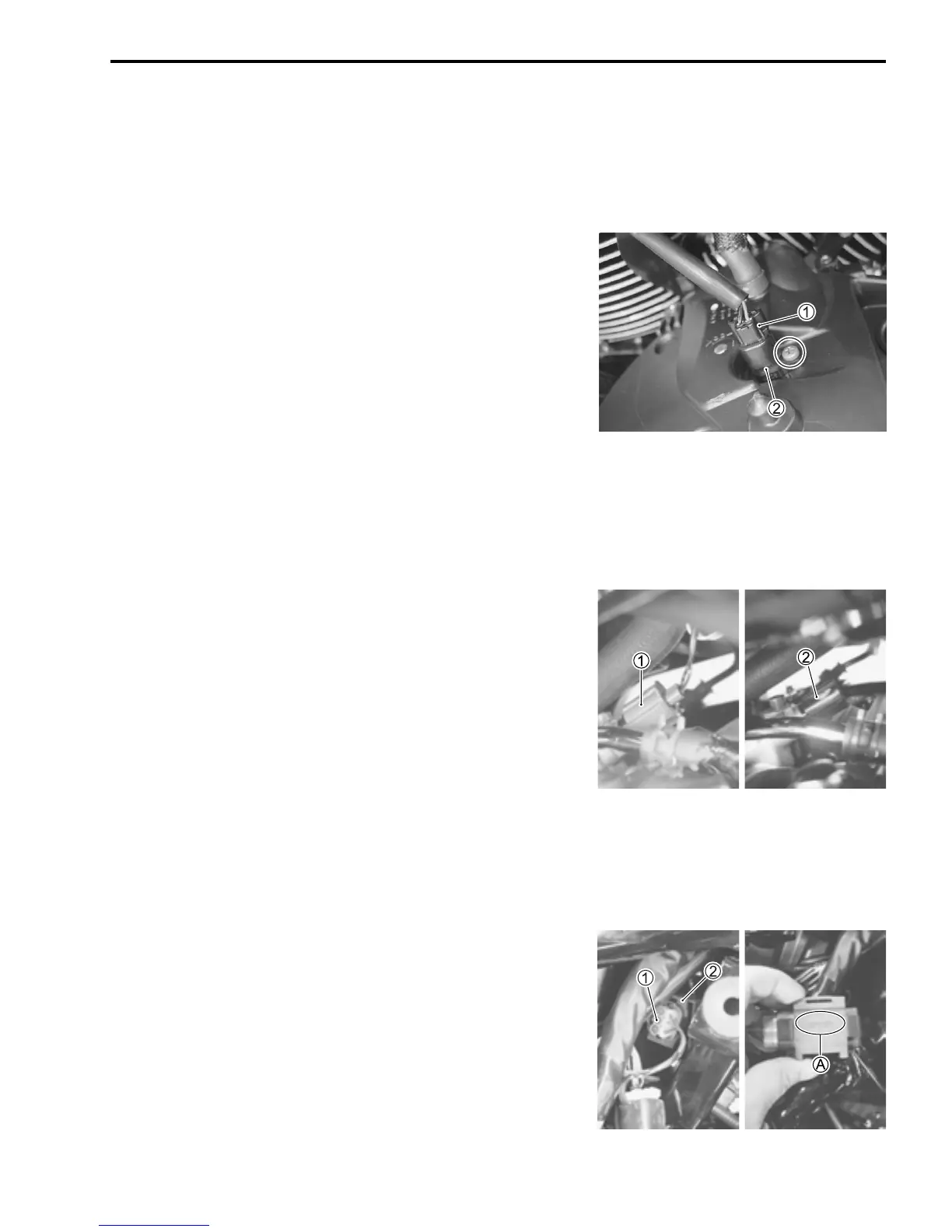

IAT SENSOR INSPECTION
The intake air temperature sensor is installed at the back side of
the air cleaner box. (5-47)
IAT SENSOR REMOVAL/INSTALLATION
• Remove the air cleaner box. (5-47)
• Disconnect the IAT sensor coupler 1 and remove the IAT
sensor 2.
• Installation is in the reverse order of removal.
ECT SENSOR INSPECTION
The engine coolant temperature sensor is installed at the No. 2
cylinder head cover. (5-42)
ECT SENSOR REMOVAL/INSTALLATION
• Remove the fuel tank. (6-3)
• Disconnect the ECT sensor coupler 1 and remove the ECT
sensor 2.
• Installation is in the reverse order of removal.
 ECT sensor: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
TO SENSOR INSPECTION
The tip-over sensor is located under the front seat. (5-52)
TO SENSOR REMOVAL/INSTALLATION
• Remove the right frame cover. (8-4)
• Disconnect the coupler 1 and remove the TO sensor 2.
• Installation is in the reverse order of removal.
NOTE:
When installing the TO sensor, bring the “UPPER” letter A on it
to the top.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
