SHAFT DRIVE 4-13
FINAL GEAR CASE REMOVAL
After draining final gear oil, the following components must be
removed in the described order before removing the final gear
case.
NOTE:
Refer to the following pages for the details of each step.
• Drain final gear oil. (2-19)
• Remove the rear wheel. (8-33)
• Remove the final gear case.

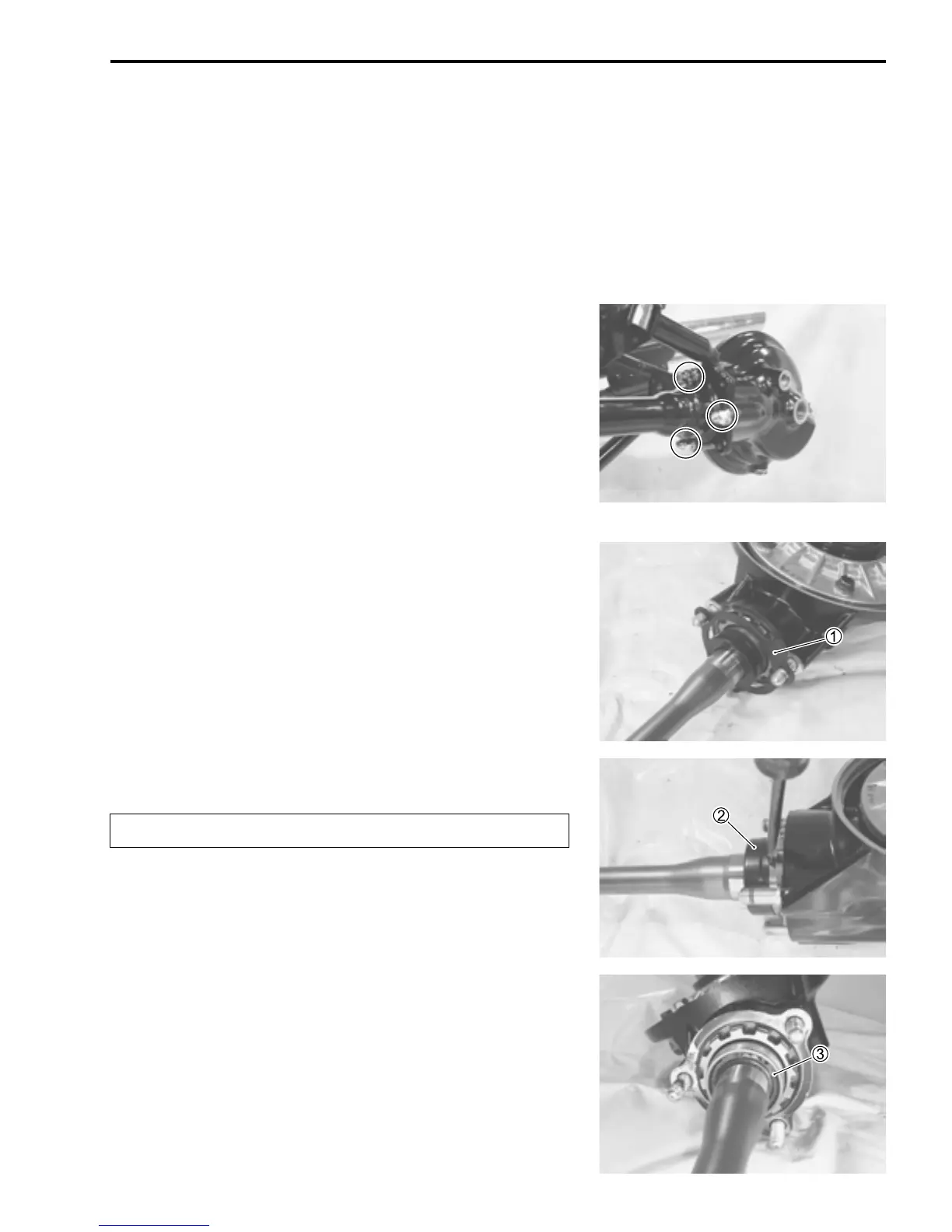

FINAL GEAR CASE DISASSEMBLY
• Remove the plate 1.
• Remove the oil seal 2.

• Remove the snap ring 3 with the special tool and take off the
propeller shaft and spring.
 09900-06108: Snap ring pliers
The removed oil seal must be replaced with a new one.
