8-22 CHASSIS
REMOVAL AND DISASSEMBLY

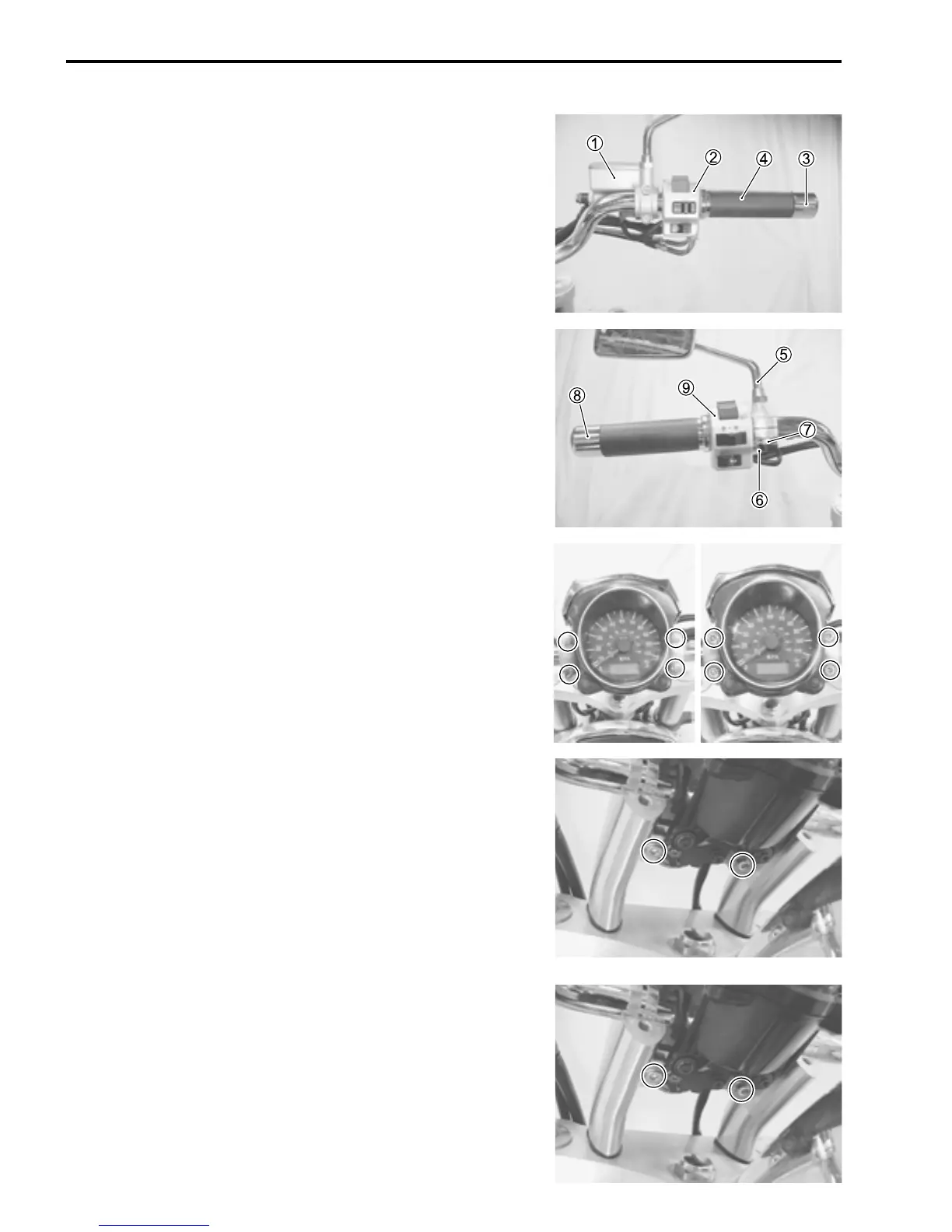

• Remove the brake master cylinder 1. (8-57)
• Remove the right handle switch 2.
• Remove the handle balancer 3.
• Remove the throttle grip 4.
• Remove the left rear view mirror 5.
• Disconnect the clutch lever position switch lead wires 6.
• Loosen the clutch lever holder bolt 7.
• Remove the left handlebar balancer 8 and the left handlebar
switch 9.
• Remove the handlebar clamp bolt caps, handlebar clamp
bolts and handlebar clamps.
• Remove the speedometer by removing the speedometer
mounting bolts.
• Remove the handlebar.
REASSEMBLY AND REMOUNTING
Reassemble and remount the handlebar in the reverse order of
removal and disassembly. Pay attention to the following points:
• Install the handlebar.
• Install the speedometer.
• Tighten the speedometer mounting bolts.
