9-6 ELECTRICAL SYSTEM

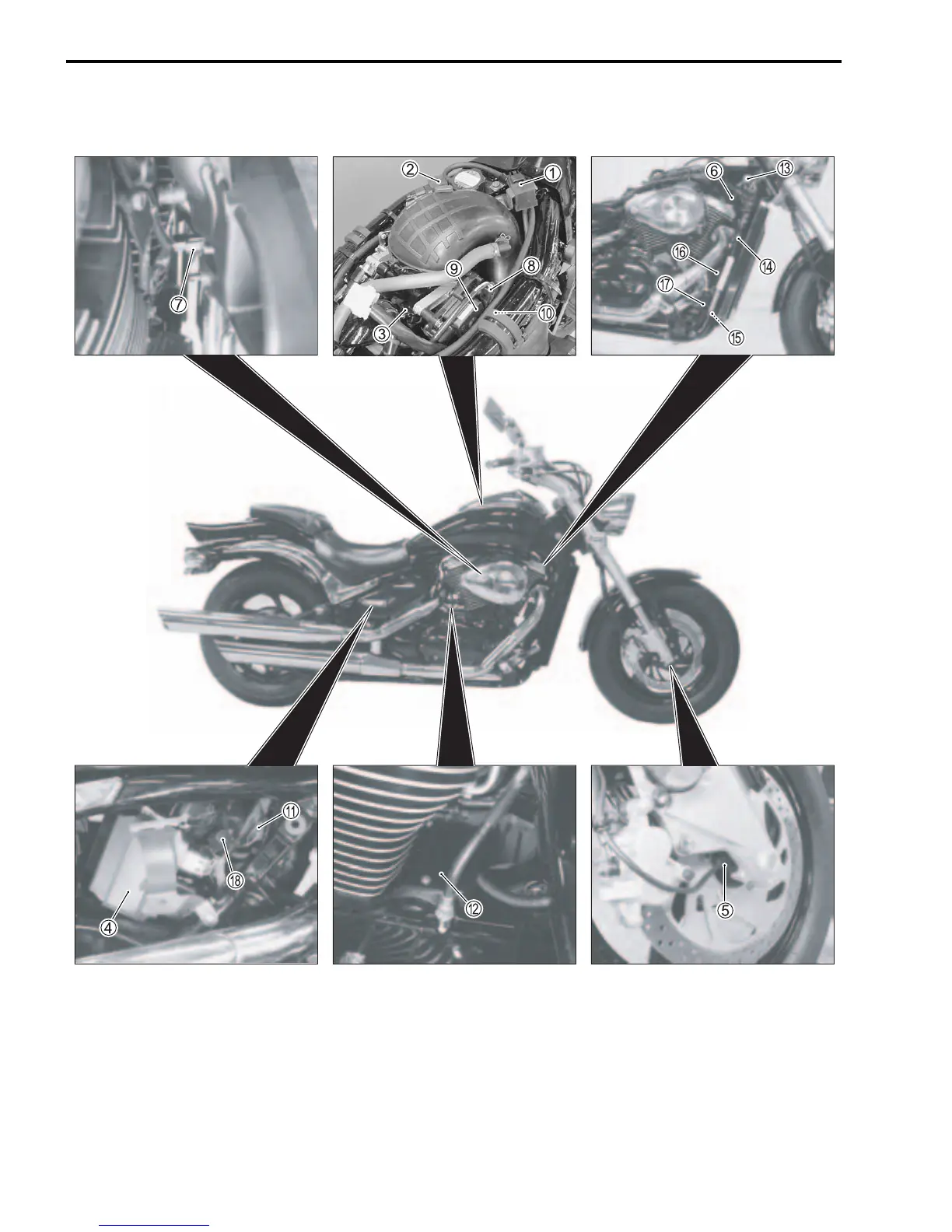

LOCATION OF ELECTRICAL COMPONENTS
1 IAP sensor (#2) (5-33) 0 TP sensor (5-37)
2 IAP sensor (#1) (5-33) A TO sensor (5-52)
3 Fuel injector (#1) (5-66) B Starter motor
4 ECM (Engine Control Module) C Ignition switch
5 Speed sensor D Horn
6 Ignition coil (#2) E Cooling fan thermo-switch (7-9)
7 IAT sensor (5-47) F Cooling fan (7-7)
8 STP sensor (5-59) G Rear brake switch
9 STV actuator (5-56) H Mode selection switch coupler
