Suzuki Intruder VZ800 User Manual

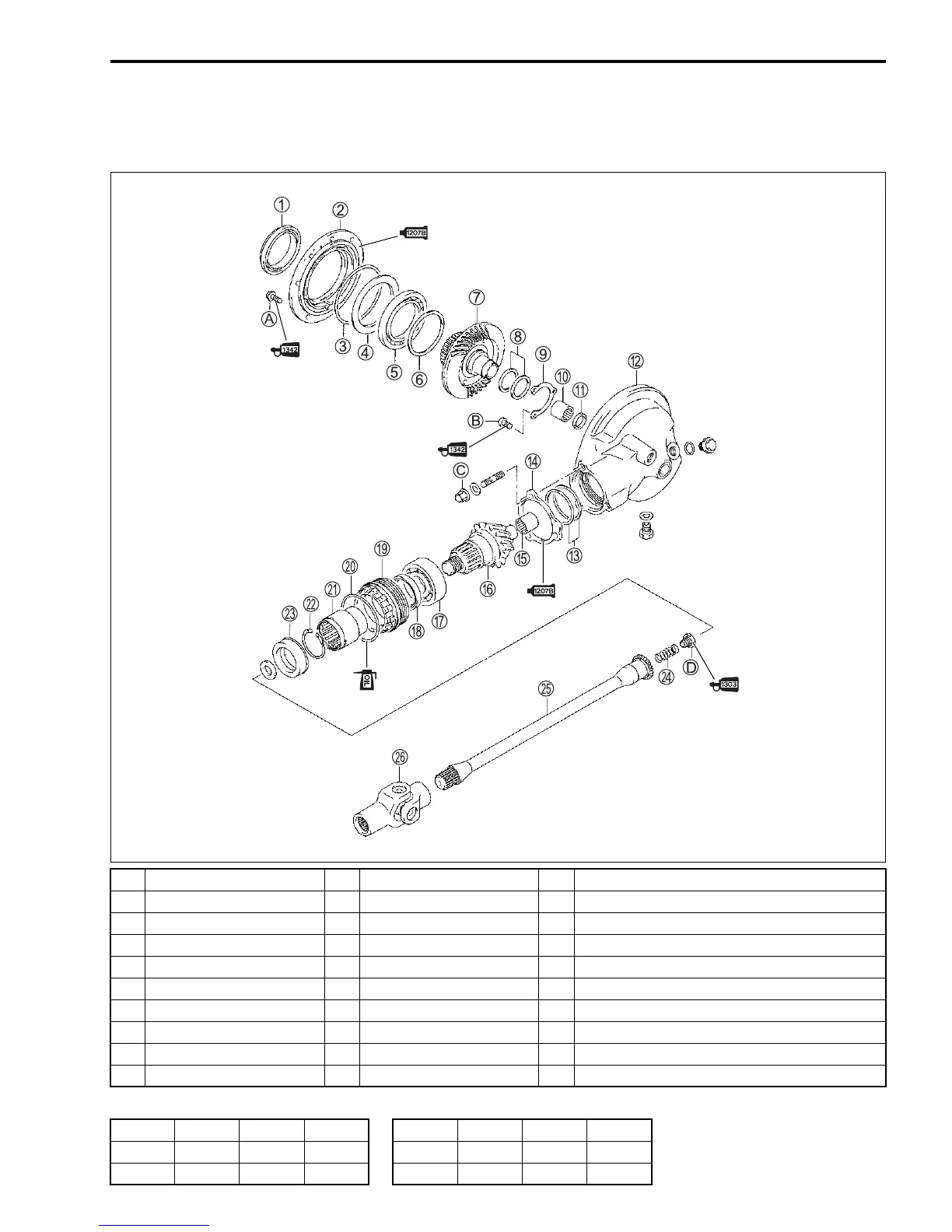

SHAFT DRIVE 4-11
FINAL BEVEL GEARS
CONSTRUCTION

1 Oil seal A Oil seal K Final drive coupling
2 Final gear bearing case B Final gear case L Snap ring
3 O-ring C Shims (5 kinds) M Oil seal
4 Plate D Stopper plate (2 kinds) N Spring
5 Final driven gear bearing E Final drive gear bearing O Propeller shaft
6 Shims (4 kinds) F Final drive bevel gear P Universal joint
7 Final driven bevel gear G
Final drive bevel gear bearing
A Final gear case bolt
8 Shims (8 kinds) H Oil seal B Final driven bevel gear bearing retainer screw
9 Bearing retainer I Bearing stopper C Final gear case nut
0 Final driven gear bearing J O-ring D Final driven bevel gear coupling nut
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 23 2.3 16.5 C 40 4.0 29.0
B 90.96.5 D 100 10.0 72.5
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
