5-78 FI SYSTEM
HO2 SENSOR INSPECTION
(FOR E-02, 19, 24)
The heated oxygen sensor is installed on the pre-muffler.
(5-69)

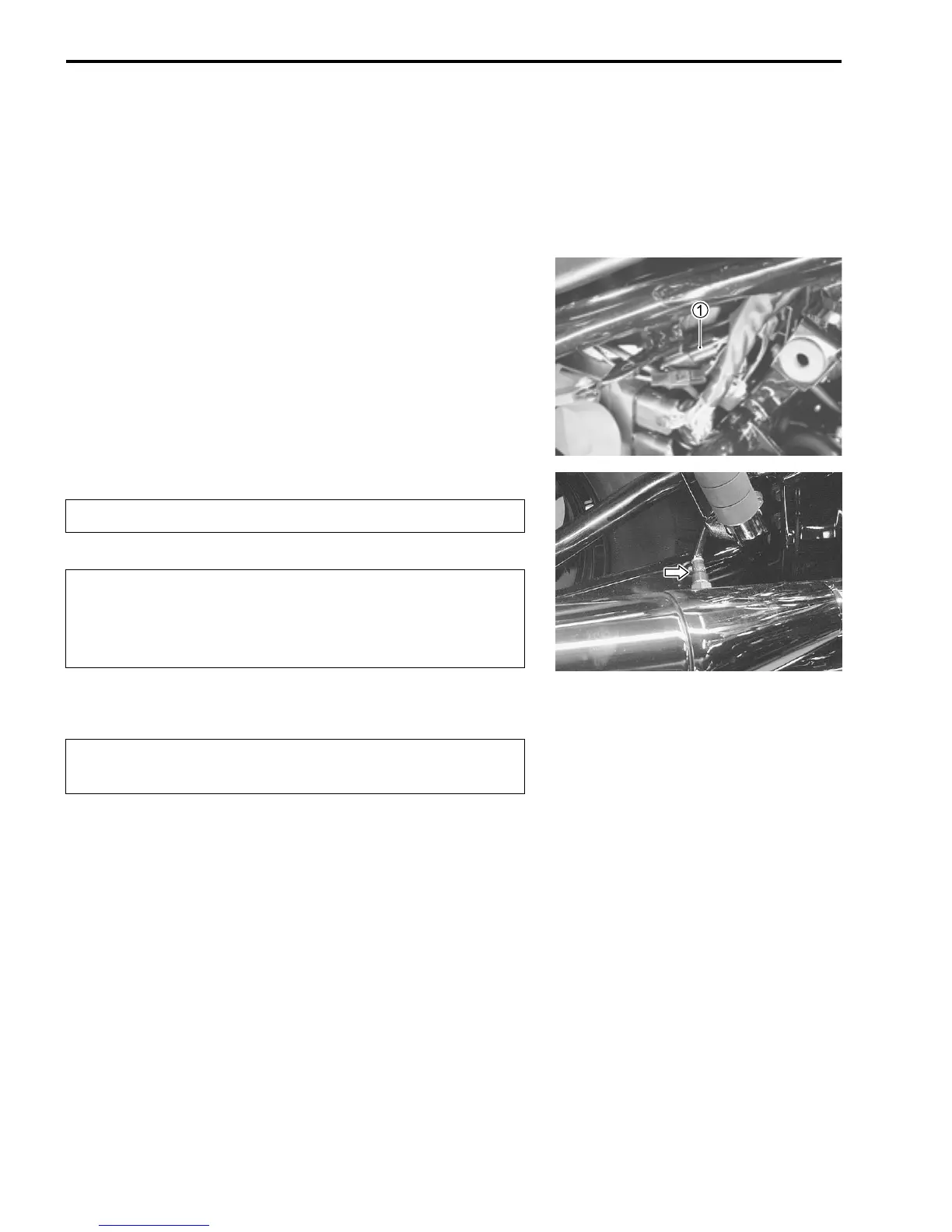

HO2 SENSOR REMOVAL/INSTALLATION
• Remove the right frame cover. (8-4)
• Disconnect the coupler 1 and remove the HO2 sensor unit.


• Installation is in the reverse order of removal.

• Tighten the sensor unit to the specified torque.
 HO2 SENSOR: 25 N·m (2.5 kgf-m, 18.0 lb-ft)
• Route the HO2 sensor lead wire properly.
Do not remove the HO2 sensor while it is hot.
Be careful not to expose it to excessive shock.
Do not use an impact wrench while removing or
installing the HO2 sensor unit.
Be careful not to twist or damage the sensor lead wire.
Do not apply oil or other materials to the sensor air
hole.
