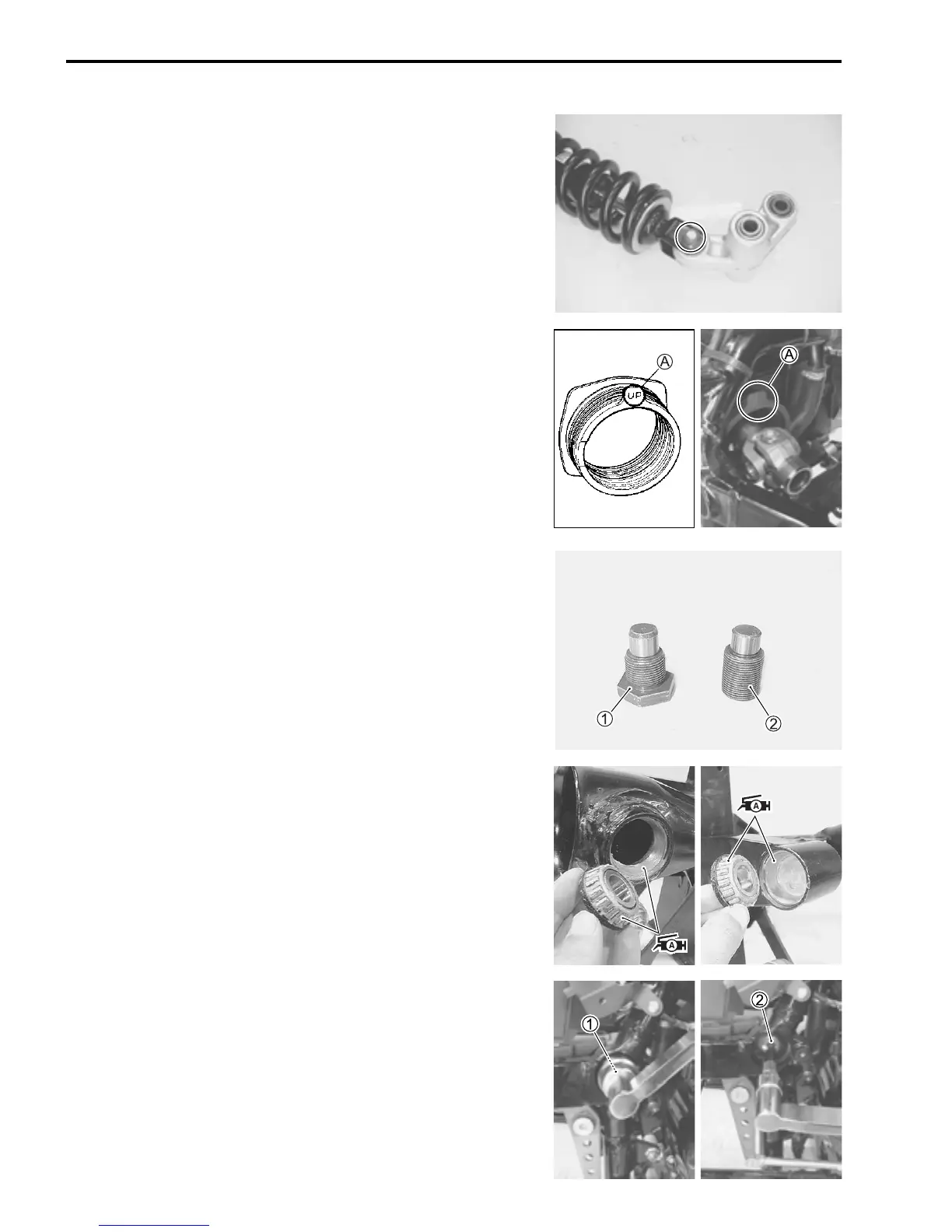

8-46 CHASSIS
• Tighten the cushion lever to the specified torque.
 Shock absorber mounting nut:
50 N·m (5.0 kgf-m, 36.0 lb-ft)
REMOUNTING
Remount the swingarm and shock absorber in the reverse order
of disassembly and removal, and pay attention to the following
points.
SWINGARM
• Before installing the swingarm, install the boot and the univer-
sal joint.
NOTE:
Make sure that the “UP” mark A on the boot faces up.
• Install the swingarm assembly, its pivot bearings and bolts
(1, 2).
NOTE:
Apply grease to the swingarm pivot bearings.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
1: For left side swingarm pivot bolt
2: For right side swingarm pivot bolt
• Tighten the left side swingarm pivot bolt 1 to the specified
torque.
 Swingarm pivot bolt (left side):
100 N·m (10.0 kgf-m, 72.5 lb-ft)
NOTE:
Before tightening the left side swingarm pivot bolt 1, loosen the
right side one 2.
