Suzuki Intruder VZ800 User Manual

2-14 PERIODIC MAINTENANCE

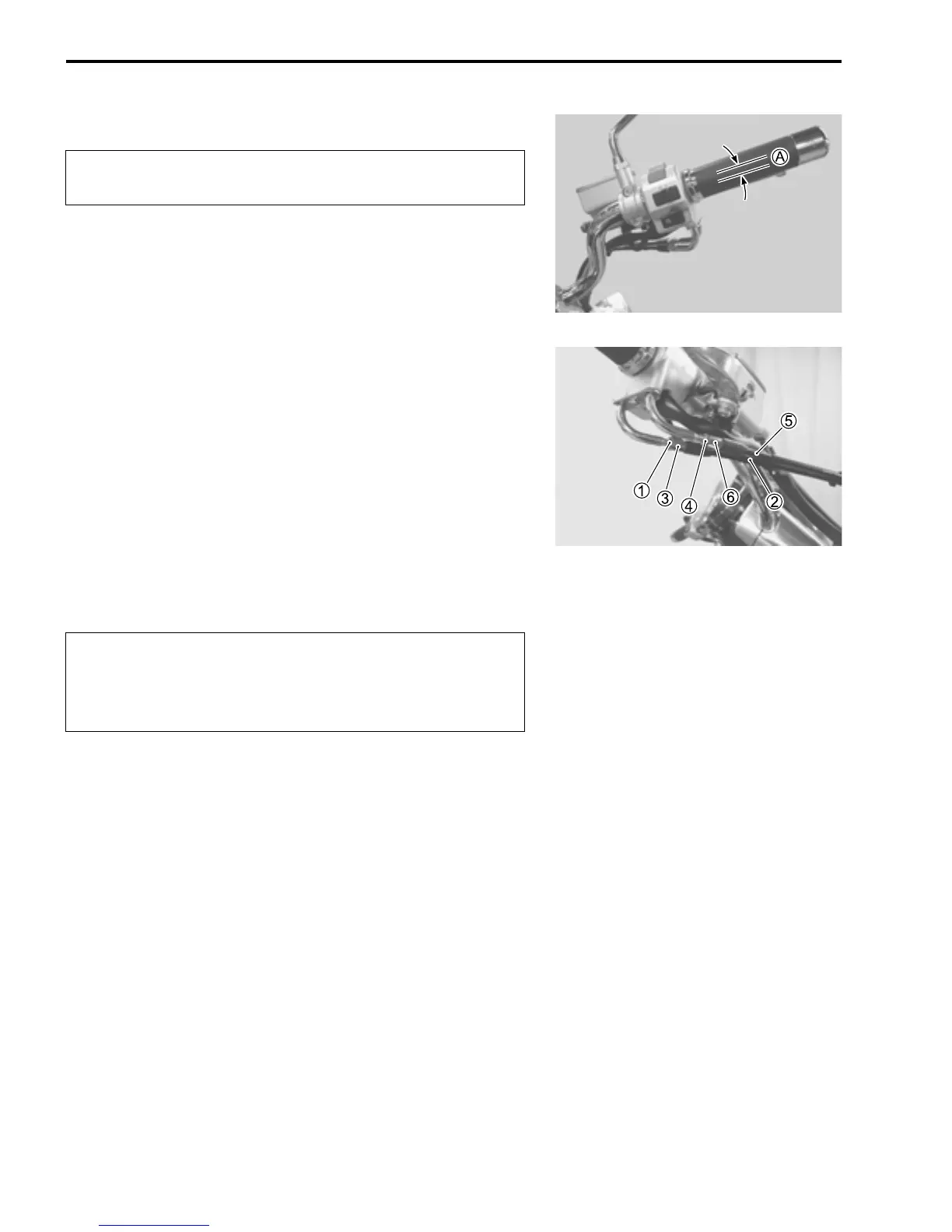

THROTTLE CABLE PLAY
Adjust the throttle cable play A with the following three steps.
MINOR ADJUSTMENT
First step:
• Loosen the lock nut 1 of the throttle returning cable 2 and
turn in the adjuster 3 fully into the threads.
Second step:
• Loosen the lock nut 4 of the throttle pulling cable 5.
• Turn the adjuster 6 in or out until the throttle cable play A
should be 2.0 – 4.0 mm (0.08 – 0.16 in) at the throttle grip.
• Tighten the lock nut 4 while holding the adjuster 6.
Third step:
• While holding the throttle grip at the fully closed position,
slowly turn out the adjuster 3 of the throttle returning cable 2
to feel resistance.
• Tighten the lock nut 1 while holding the adjuster 3.
 Throttle cable play A: 2.0 – 4.0 mm (0.08 – 0.16 in)

NOTE:
Major adjustment can be made by the throttle body side
adjuster.
Inspect initially at 1 000 km (600 miles, 2 months) and
every 6 000 km (4 000 miles, 12 months) thereafter.
After the adjustment is completed, check that handle-
bar movement does not raise the engine idle speed
and that the throttle grip returns smoothly and auto-
matically.
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
