Suzuki Intruder VZ800 User Manual

CHASSIS 8-13

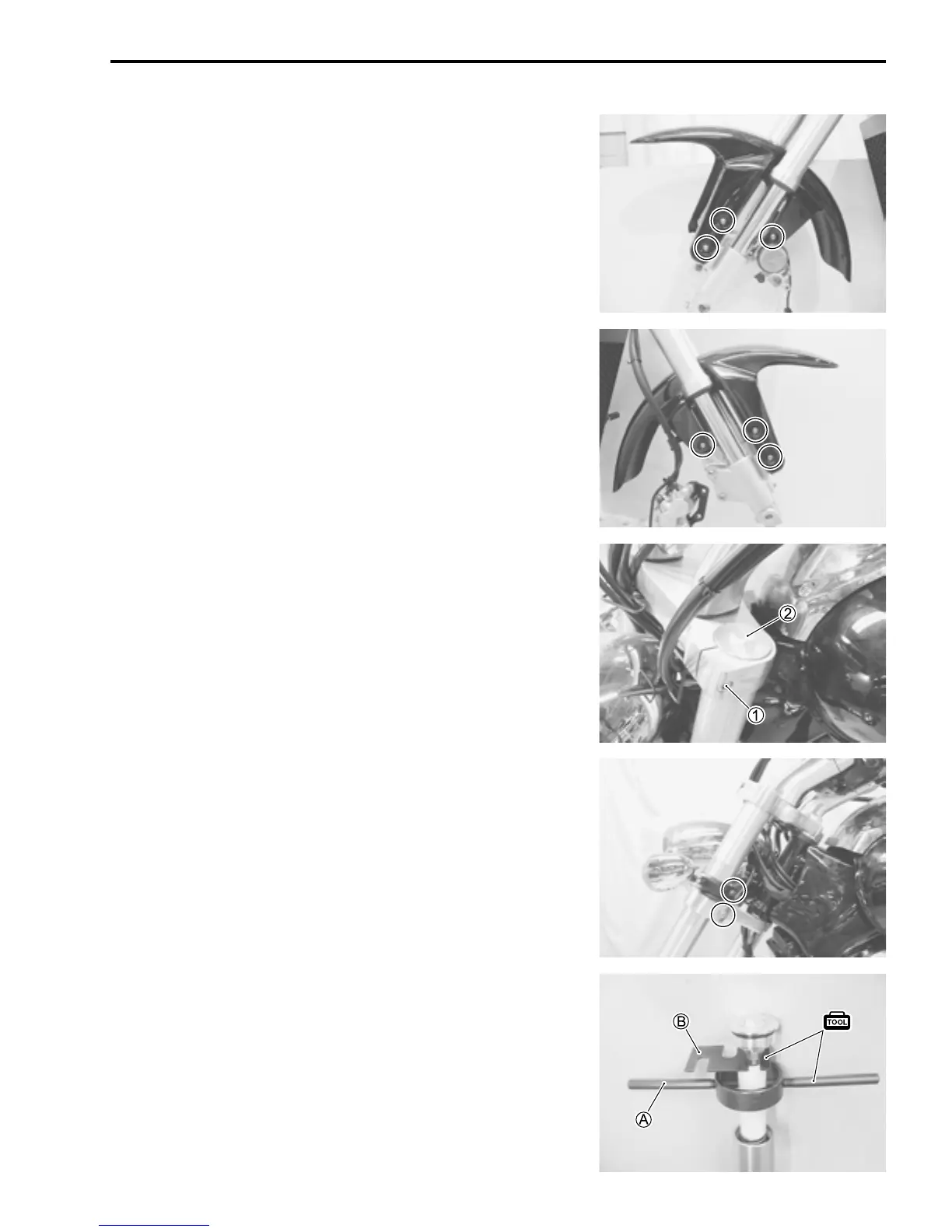

REMOVAL AND DISASSEMBLY
• Remove the front wheel. (8-7)
• Remove the front brake caliper. (8-52)
• Remove the front fender.
• Loosen the front fork upper clamp bolts 1.
NOTE:
Slightly loosen the front fork cap bolts 2 before loosening the
lower clamp bolts to facilitate later disassembly.
• Loosen the turn signal light clamp screws and front fork lower
clamp bolts.
• Remove the front forks.
• Separate the front fork cap bolt from the front fork.
• Compress the front fork spring with the special tool A and
insert the special tool B between the lock-nut and the spacer.
 09940-94930: Front fork spacer holder A
09940-94922: Stopper plate B
SAMPLE

Suzuki Intruder VZ800 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC, 45-degree V-twin
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brake	Drum brake
Seat Height	700 mm (27.6 in)
Front Brake	Disc brake
Rear Tire	170/80-15M/C 77H, tube type
Fuel Tank Capacity	15.5 L (4.1 US gallons)
