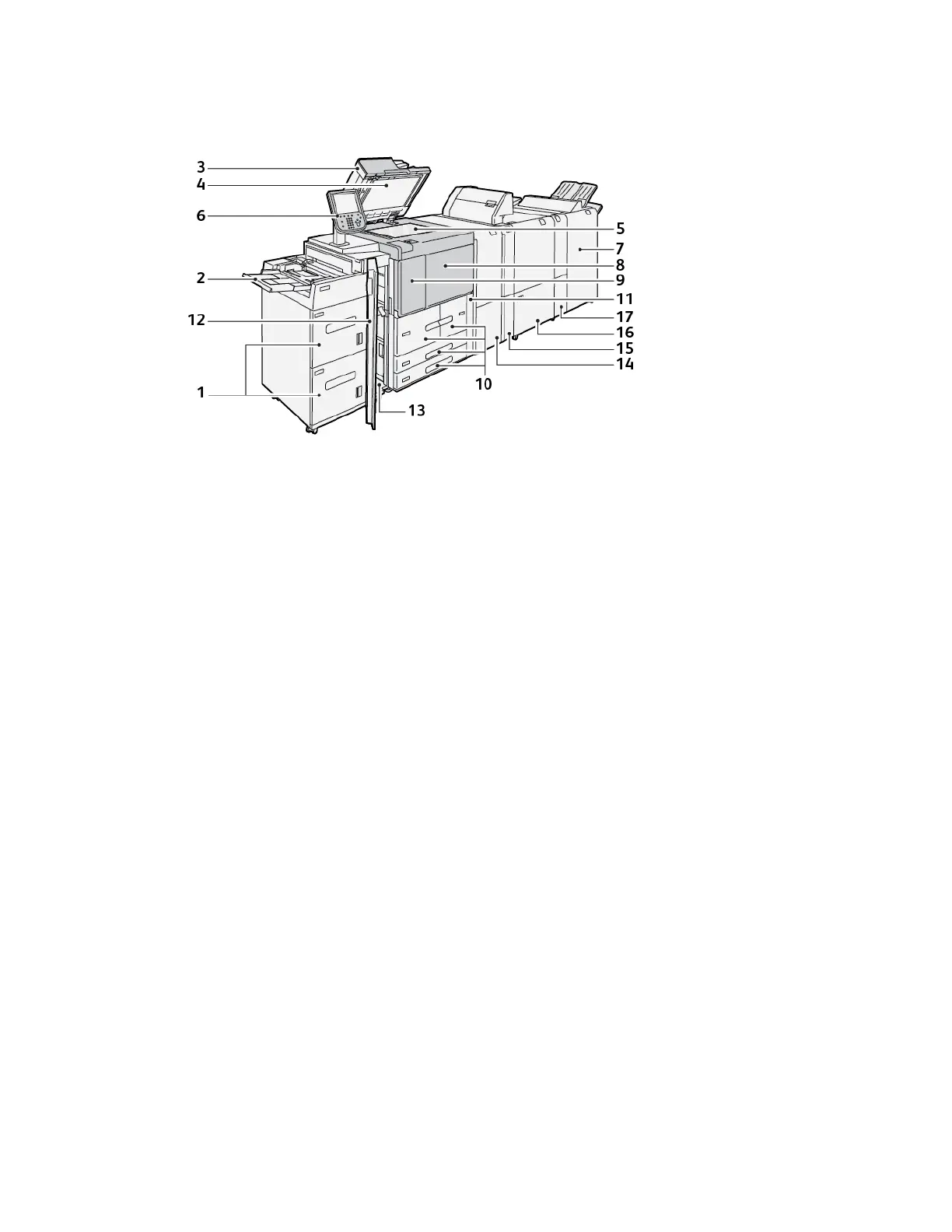

Parts of the Printer
1. Optional High Capacity Feeder (HCF), Trays 6
and 7
2. Bypass tray, Tray 5
3. Duplex Automatic Document Feeder (DADF)
4. Document cover
5. Document glass
6. User Interface (UI); Control Panel
7. Optional Production Ready Finisher
8. Front cover
9. Left cover for toner
10. Trays 1–4
11. Waste cartridge cover
12. Front cover on optional HCF
13. Lower left cover
14. Interface Decurler Module (IDM)
15. Optional Inserter Module
16. Optional Crease and Two-Sided Trimmer
17. Optional C/Z Folder
