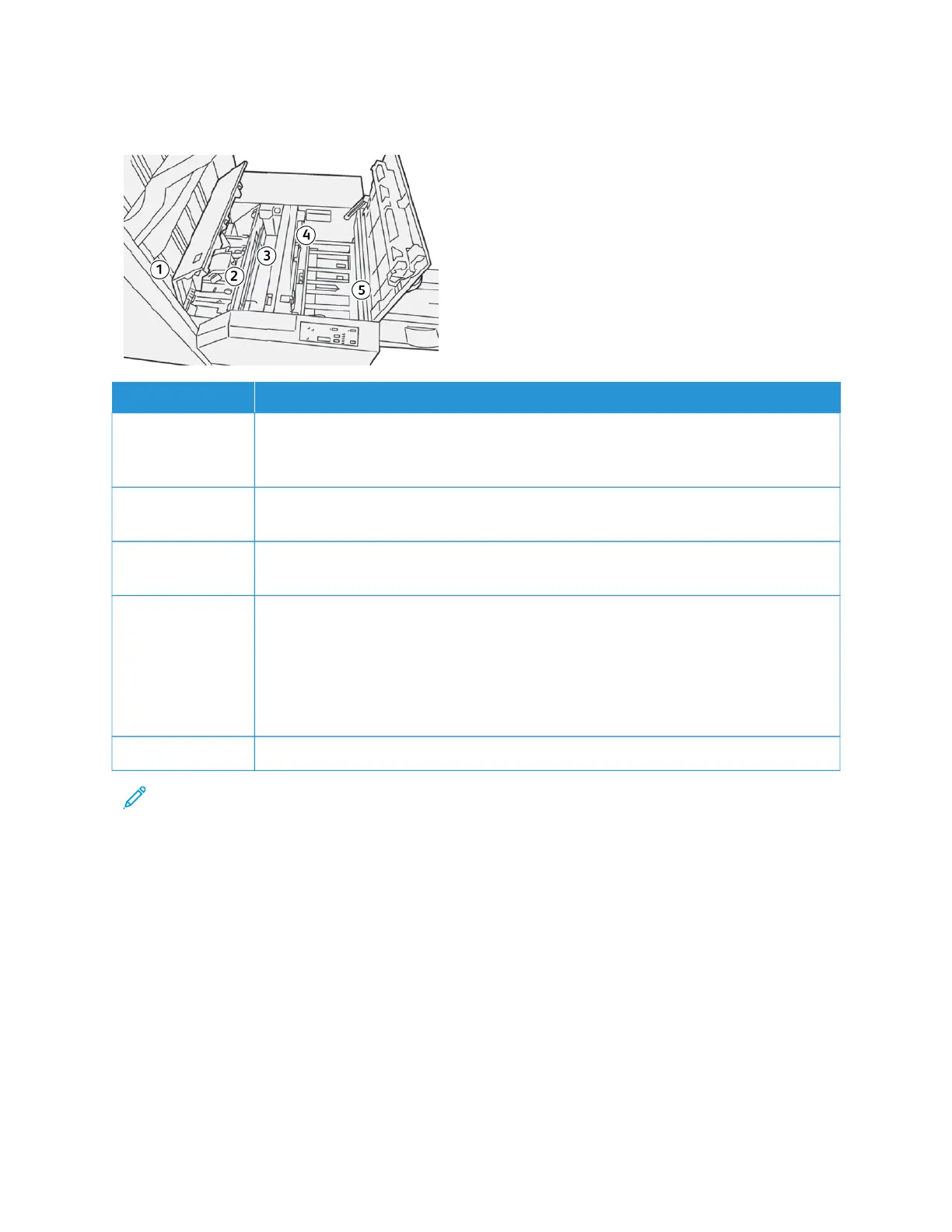

SQUAREFOLD
®
TRIMMER PAPER PATH
NNUUMMBBEERR DDEESSCCRRIIPPTTIIOONN
1 The booklet leaves the booklet area of the finisher, then enters the SquareFold
®
Trimmer
device. The booklet exit sensor in the SquareFold
®
Trimmer device detects the leading
edge spine of the booklet, then moves the booklet to the square-fold area.
2 When the booklet spine reaches the square-fold area, the booklet is clamped, and the
square-folding operation begins.
3 The booklet is flattened and the spine is squared according to the square-fold setting
indicated on the control panel.
4 After the booklet is flattened and the spine is squared, the booklet is moved to the
trimmer area.
• Based on the finished booklet size, the booklet is moved until the trailing edge reaches
the trimmer cutter.
• The trailing edge is trimmed, based on the finished booklet size entered for the
trimmer mode setting.
5 The booklet is moved to the exit area where it is transported to the booklet tray.
Note: Booklets that exit the SquareFold
®
Trimmer device contain trim remnants or scraps from the previously
trimmed booklet. Trim remnant or scrap accumulation is due to normal static electricity build-up. If booklets
contain trim remnants or scraps, remove and discard the remnants and scraps.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 469
SquareFold
®
Trimmer Module
