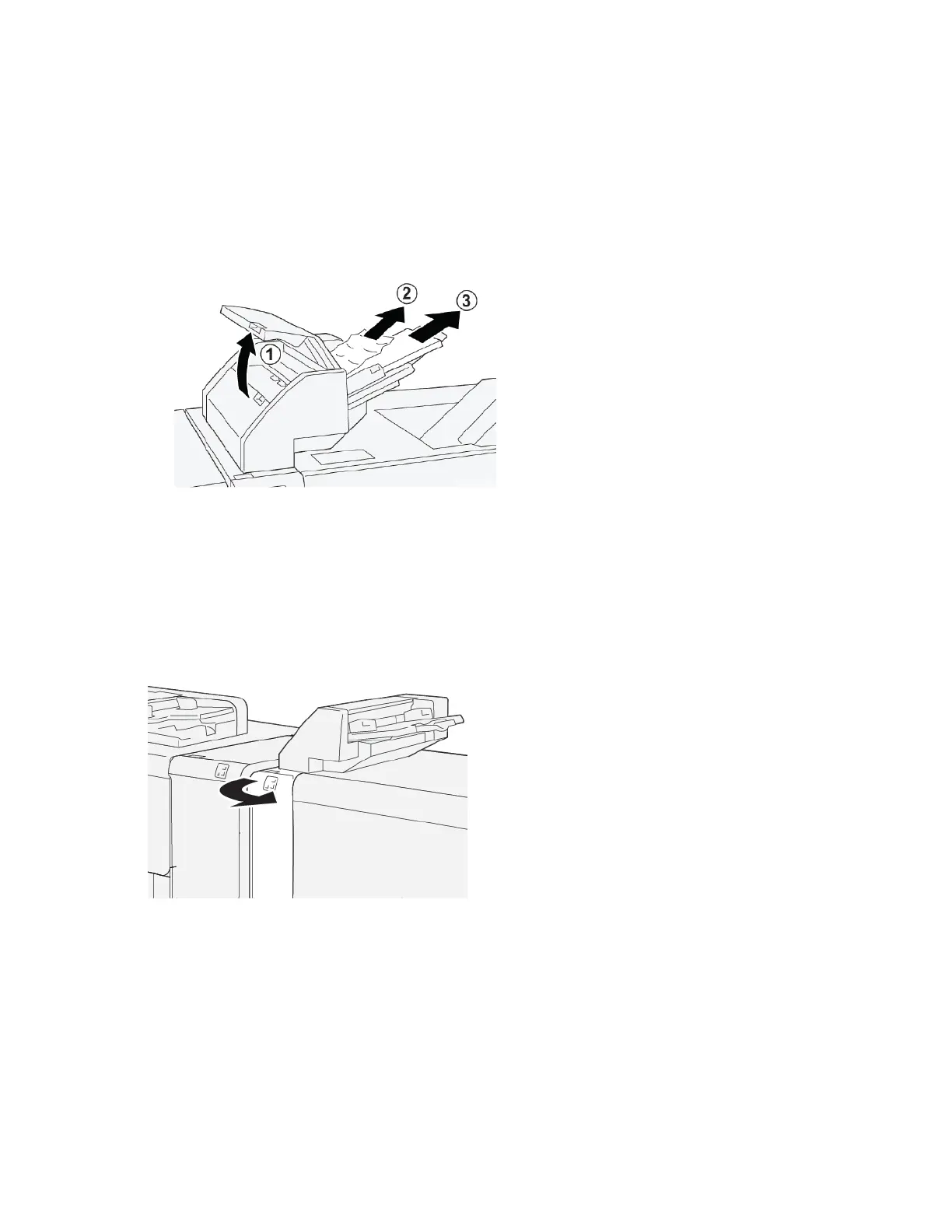

Clearing Paper Jams from the Inserter E1 Area
1. To clear paper jams from the inserter E1 area, do the following steps:
a. Open the T1 cover.
b. Remove the jammed paper.
c. Remove all the paper that is loaded in the tray.
2. Fan the paper that you removed, and ensure that all four corners of the paper are aligned correctly.
3. Reload the paper into the tray.
4. Close the T1 cover.
Clearing Paper Jams from the Inserter E2 Area
1. Open the inserter front cover.
2. To clear paper jams from the inserter E2 area, do the following steps:
a. Lift lever 11aa.
b. Rotate knob 11bb counterclockwise.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 351
Inserter Module
