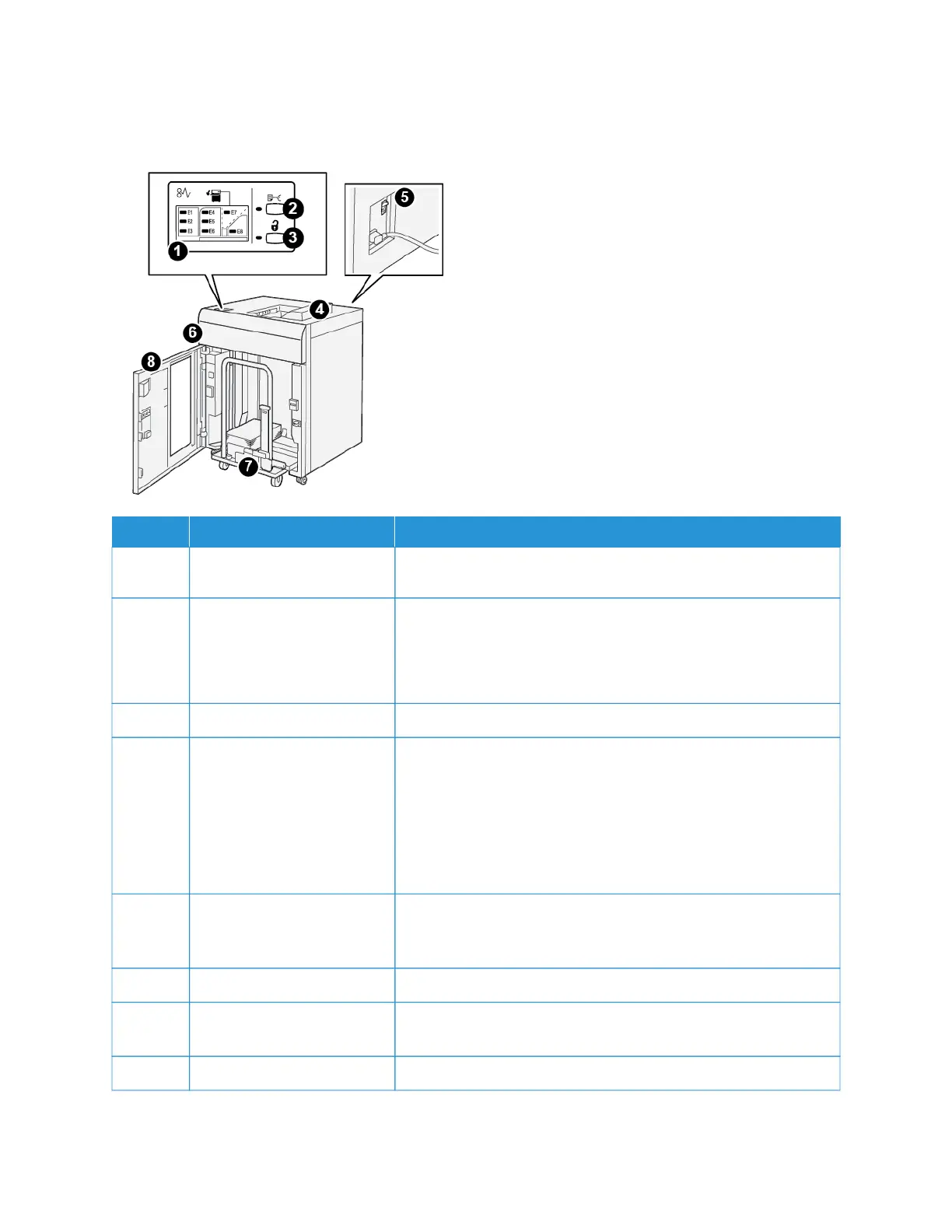

High Capacity Stacker (HCS) Components
NNUUMMBBEERR CCOOMMPPOONNEENNTT DDEESSCCRRIIPPTTIIOONN
1 Paper jam or error indicators The indicators illuminate when a paper jam occurs in HCS areas E1–
E8.
2 SSaammppllee button Press this button to have the HCS deliver a sample sheet to the top
tray.
The indicator to the left of the button blinks until a sample sheet is
delivered to the top tray.
3 UUnnllooaadd button Press this button to stop printing, then remove the paper.
4 Top tray The tray receives the printed output and sample sheets.
The top tray holds a maximum of 500 sheets, 330 x 488 mm (13 x
19.2 in.).
When another inline finishing device is installed, this tray is used as
a paper path for transporting media through the HCS to another
connected finishing device.
5 Circuit breaker switch The circuit breaker switch is on the rear of the HCS. If there is an
electrical failure or a shorted circuit, the switch shuts off electricity
automatically.
6 Top cover Open this cover to clear paper jams.
7 Stacker tray or cart Collated sets, up to a total of 5000 sheets are transported to the
stacker tray that is on a movable stacker cart.
8 Front door Open this door to remove paper or printed output.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 361
