Brother PR600 - FD Assembly (Step 2)

3 - 10
Main unit
Operation panel
10

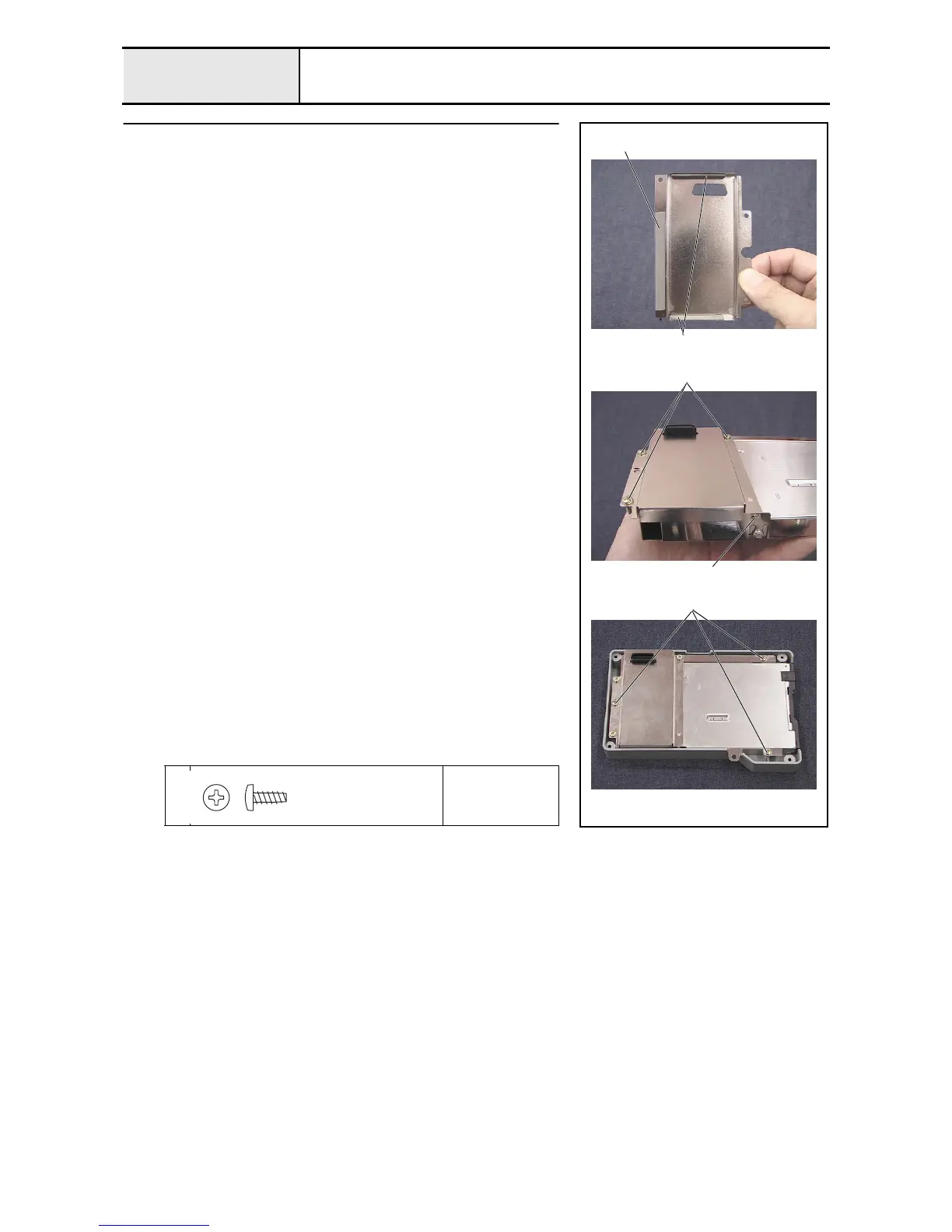

FD assembly (Step 2)
1. Attach gasket D 1 and gasket E 2 to FD case B.
2. Insert the lug on FD case B 3 to the hole on FD case A to attach FD case
B to FD case A, and then tighten the 3 screws 1.
3. Attach the FD case assembly to the FD cover, and then tighten the 3 screws 2.
1
2
Torque
0.39 – 0.78 N-m
1
2
1
3
2
Taptite, Bind B
M3X8
Color; Gold
