Brother PR600 - Crank Rod Assembly Attachment

3 - 40
Main unit
Upper shaft unit
4

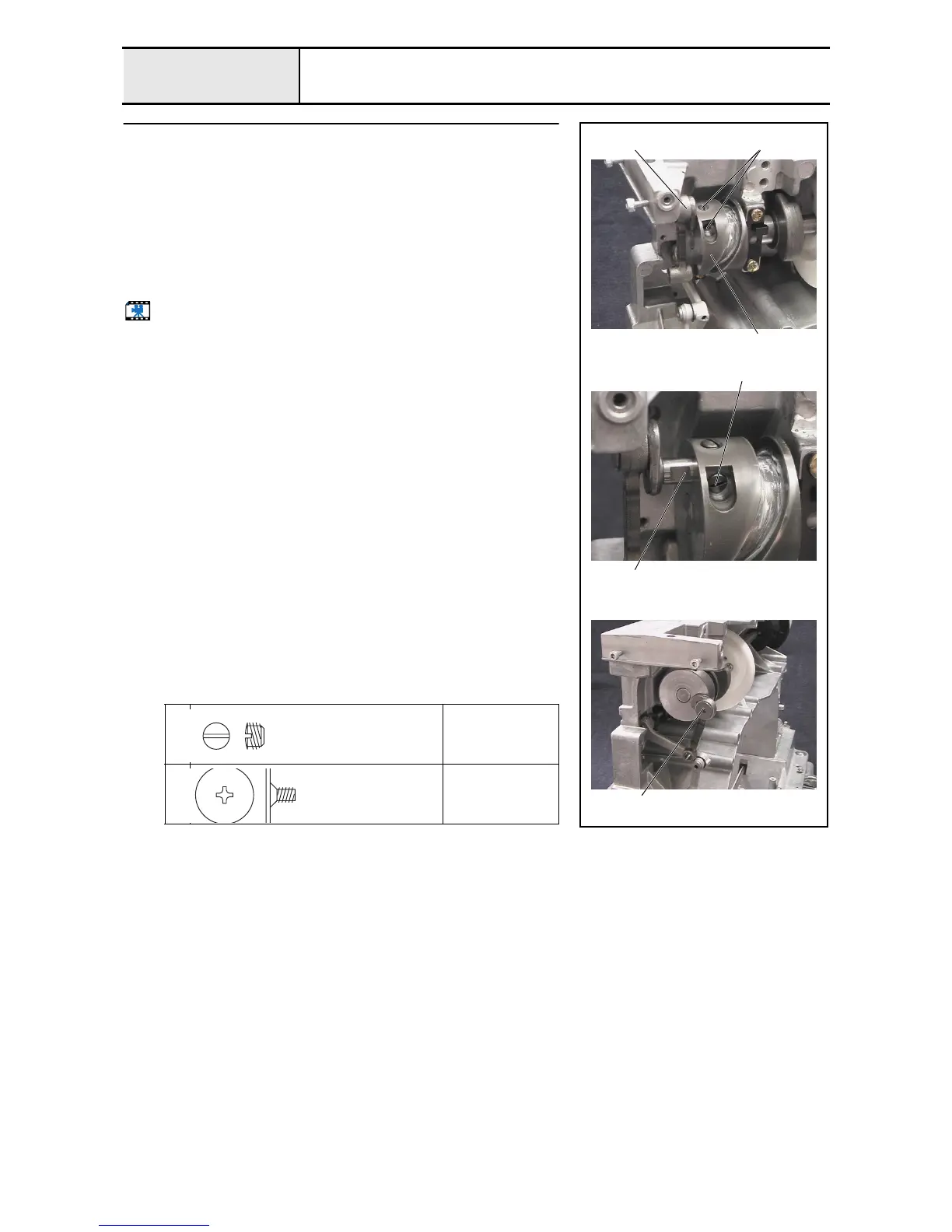

Crank rod assembly attachment
1. Attach the crank rod assembly 2 to the thread take-up cam 1, and secure
them with the 2 screws 1.
*Key point
• Align the crank rod assembly's D cut face 3 with screw hole 1
4.
2. Firmly tighten the screw 2.
*Key point
• Screw 2 is a left hand thread.
Start movie clip (CD-ROM version only)
1
Torque
1.57 – 1.96 N-m
2
Torque
1.18 – 1.57 N-m
2
4
3
2
1
1
Set Screw (CP)
SM6.35
Color; Black
Screw
SM3.57-40X6 L
Color; Grey
