2 - 69
Thread tension unit
Main unit
Disassembly
8

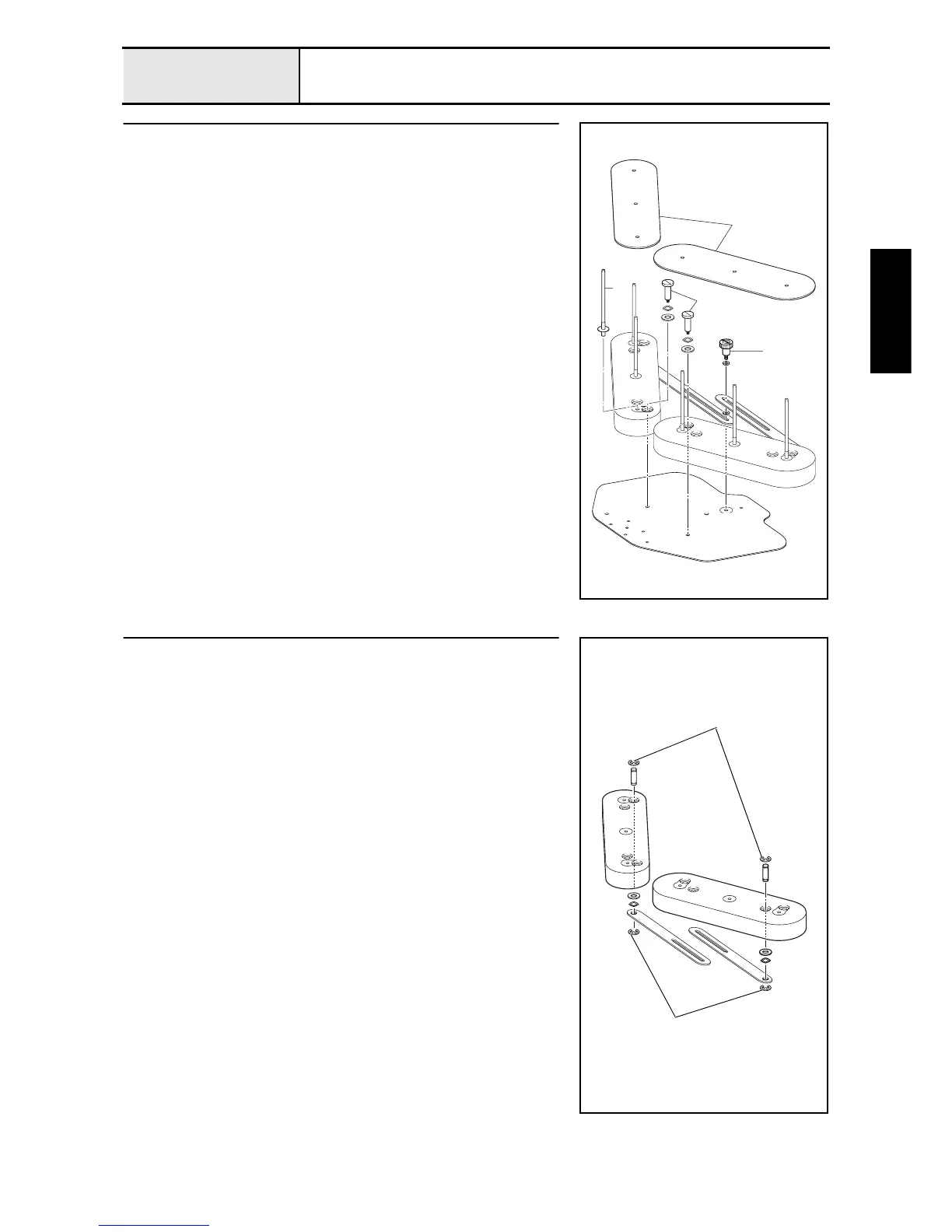

Spool stand frame disassembly (Step 1)
1. Remove the 6 spool pins 1 and the 2 sponges 2 from the spool frame
stand R and spool frame stand L.
2. Remove the thumb bolt (M4L) 3 and the 2 washers, and then disconnect
the spool stand link R from the spool link L.
3. Remove the 2 stud screws 4, 2 spring washers, and 2 plain washers (S10),
and then remove the spool stand frame L and spool stand frame R from the
spool stand base.
2
1
4
3
9
Spool stand frame disassembly (Step 2)
1. Remove the retaining ring E8, and then remove the spool stand link, spring
washer, plain washer (S10), and spool stand stud from the spool stand
frame L assembly.
2. Remove the retaining ring E8, and then remove the spool stand link, spring
washer, plain washer (S10), and spool stand stud from the spool stand
frame R assembly.
3. Remove the retaining ring E8 from the spool stand stud. (2 sets)
Retaining ring E8
Retaining ring E8
