Brother PR600 Service Manual

3 - 38
Main unit
Upper shaft unit
2

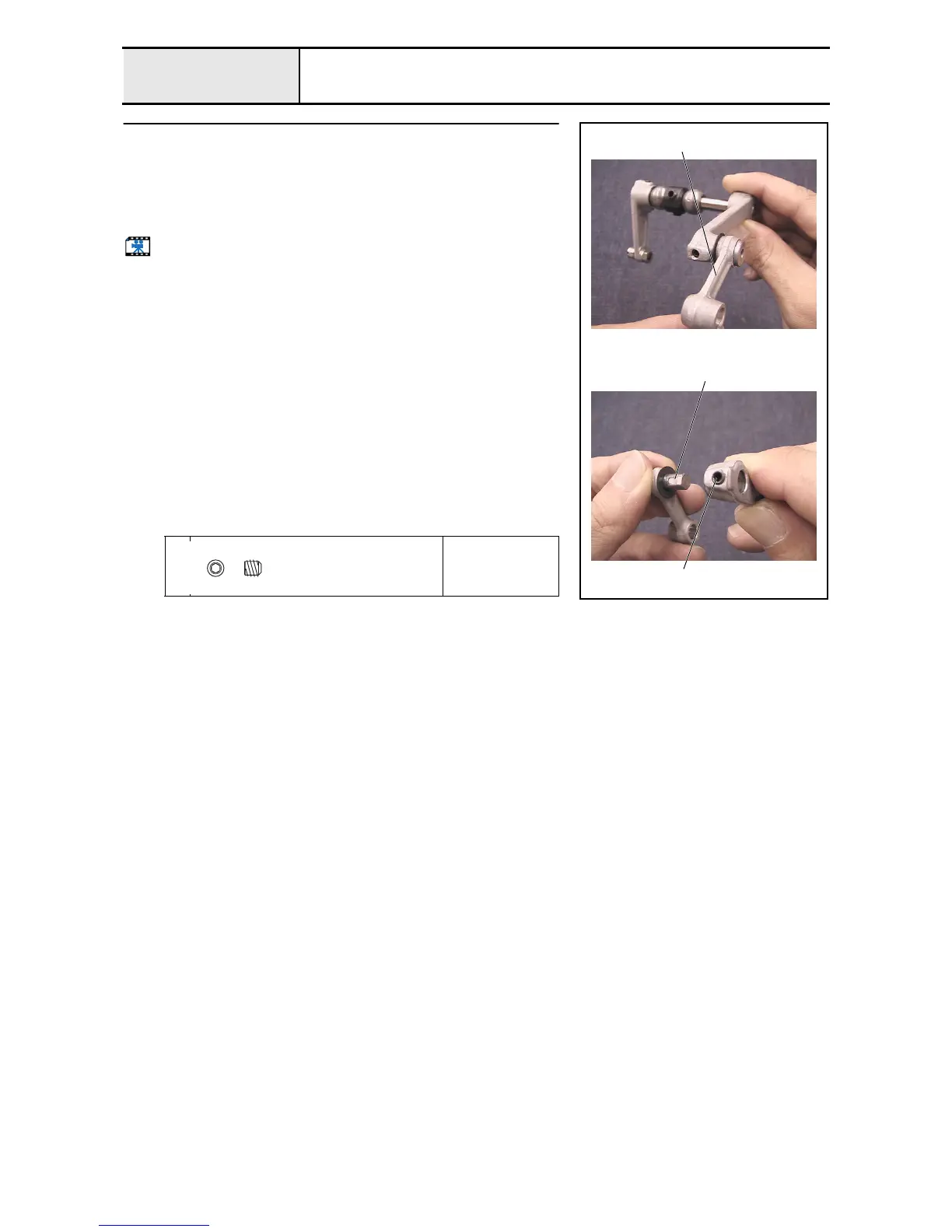

Presser foot driving shaft assembly
1. Attach the thrust washer and the presser foot lever shaft to the presser foot
connecting rod 1.
2. Align the screw hole on the presser foot driving shaft assembly with the
presser foot lever shaft's D-cut face 2, and secure the presser foot driving
shaft assembly with the screw 1.
Start movie clip (CD-ROM version only)
1
Torque
0.78 – 1.18 N-m
1
2
1
Set Screw, Socket (CP)
M4X4
Color; Black
