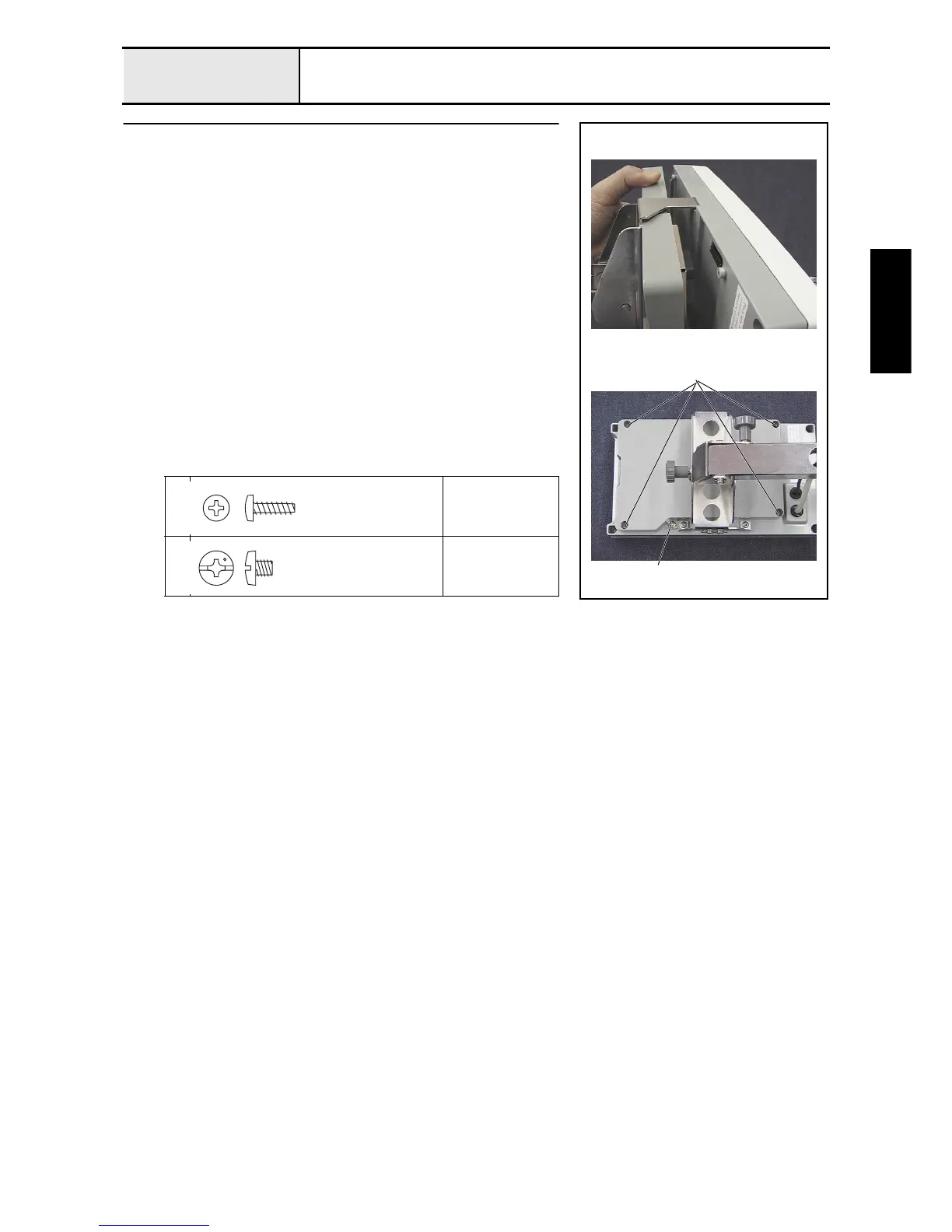

3 - 11
Operation panel
Main unit
Assembly
11
FD assembly attachment
1. Attach the FD assembly to the operation panel assembly, aligning the FD
assembly's connector with the operation panel assembly's connector.
2. Tighten the 4 screws 1 and the screw 2.
1
Torque
0.39 –
0.78 N-m
2
Torque
1.18 –
1.57 N-m
1
2
Taptite, Bind B
M3X10
Color; Gold
Screw, Bind
M4X4
Color; Silver
