3 - 91
Feed unit
Main unit
Assembly
17

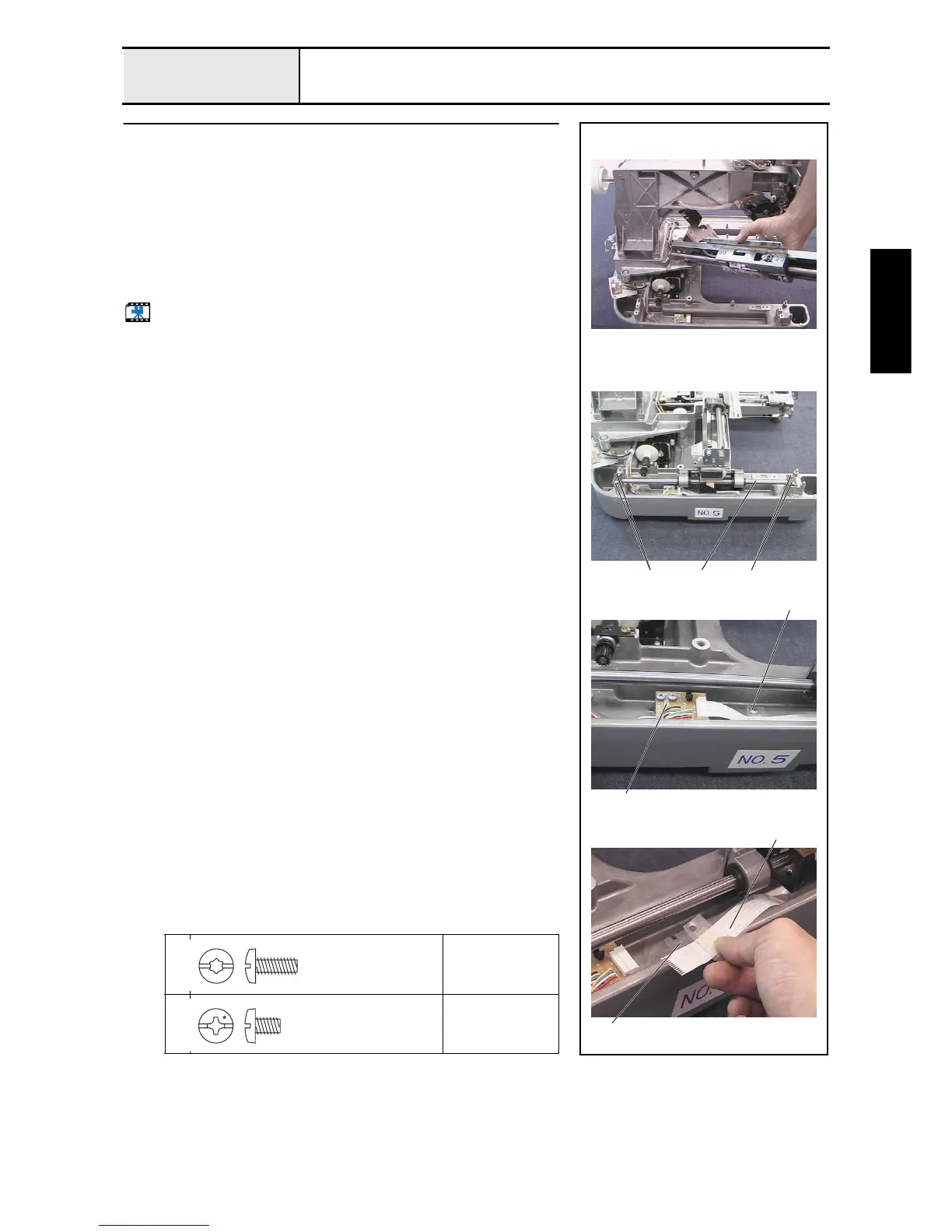

Feed final assembly attachment
1. Attach the 2 Y-guide shafts 1 to the feed final assembly, and then attach
the feed final assembly to the base frame.
2. Secure the 2 fixed Y-shaft plates with the 4 screws 1 (one each on left and
right).
3. Pull the feed final assembly toward you.
4. Connect the FFC (SML2CD-Y) connected to the feed final assembly's
connect PCB to the Y-area sensor assembly 2, and lock the connector.
5. Attach the sheet 3, FFC (SML2CD-Y), and sheet B 4 to the base frame
with the screw 2.
Start movie clip (CD-ROM version only)
1
Torque
1.47 –
1.96 N-m
2
Torque
1.18 –
1.57 N-m
2
1
2
11
4
3
Taptite, Bind S
M4X10
Color; Gold
Screw, Bind
M4X6
Color; Silver
To Next Page
