Brother PR600 Service Manual

2 - 41
Needle bar unit
Main unit
Disassembly
11
Case bracket disassembly

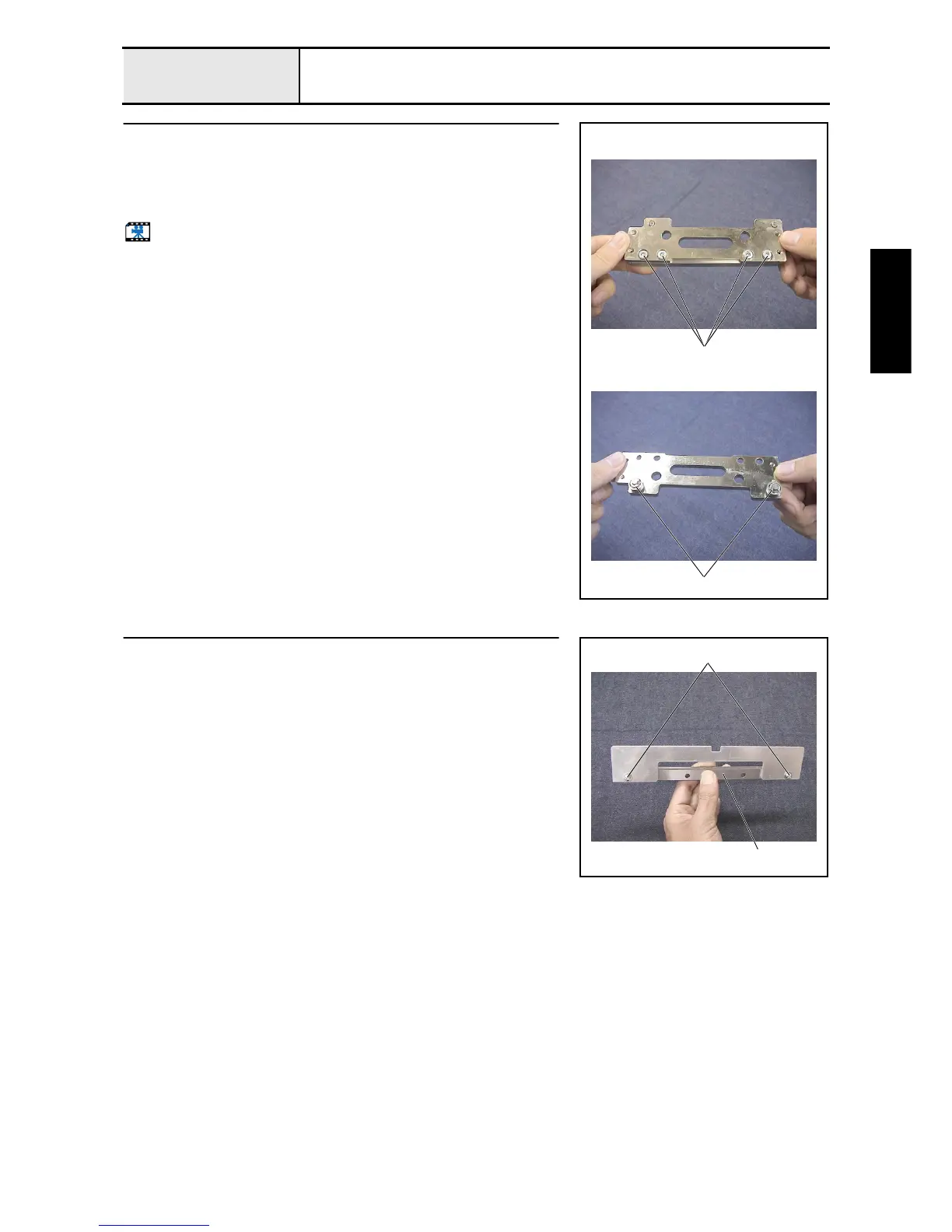

1. Remove the 4 screws 1, and then remove the case guide US and the case
bracket assembly.
2. Remove the 2 retaining rings E3, and then remove the 2 ball bearings (694)
from the case bracket assembly.
Start movie clip (CD-ROM version only)
1
Retaining ring E3
12
Case guide UL disassembly
1. Remove the 2 screws 1, and then remove the case guide UL 1 and the
thread take-up guide.
1
1
