Brother PR600 Service Manual

3 - 76
Main unit
Feed unit
2

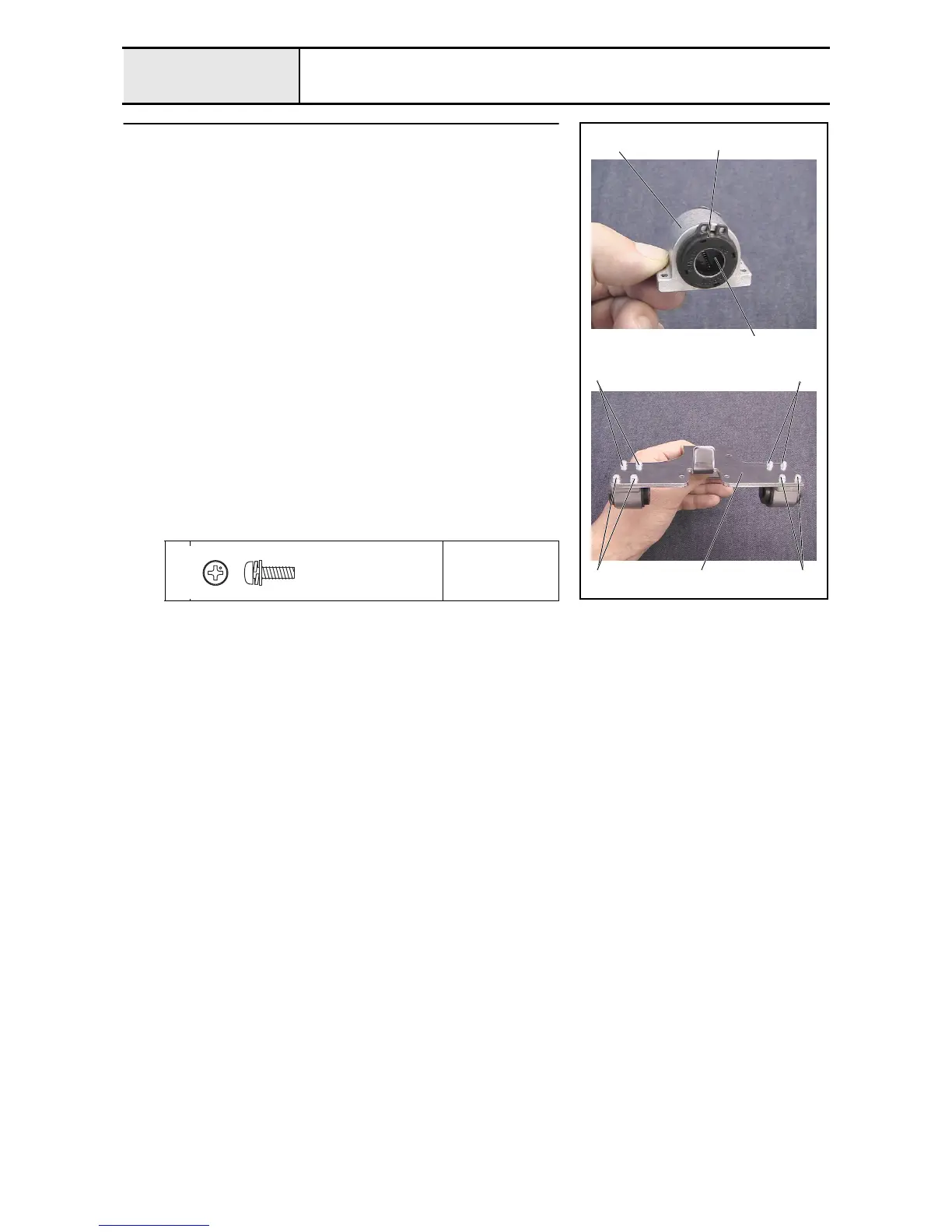

Y-carriage R assembly
1. Attach the linear bearing 10 2 to bearing case Y 1, and then attach the 2
external retaining rings C19.
2. Attach the 2 bearing case Y assemblies to Y-carriage R 3 with the 8
screws 1.
1
Torque
0.78 – 1.18 N-m
External retaining rings C19
1 13
1
2
11
Screw, Pan (S/P washer)
M3X10DA
Color; Gold
