Brother PR600 - Wiper Guide and Wiper Sensor Removal

2 - 34
Main unit
Thread wiper unit
4
Wiper guide and wiper sensor removal

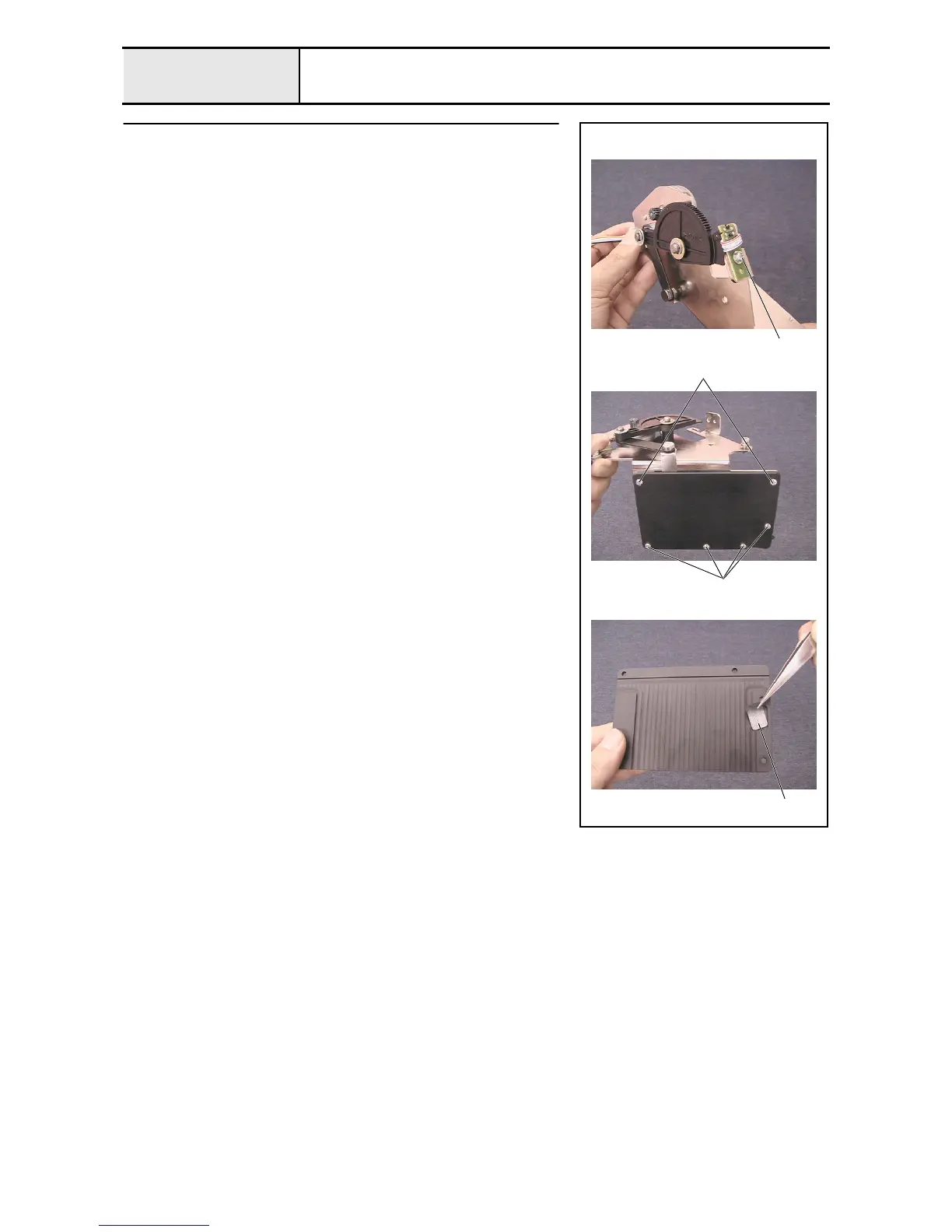

1. Remove the screw 1, and then remove the wiper sensor assembly.
2. Remove the 6 screws 2, and then remove the wiper guide assembly.
3. Remove the wiper cushion 1 from the wiper guide assembly.
1
1
2
2
